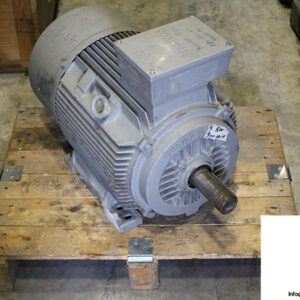

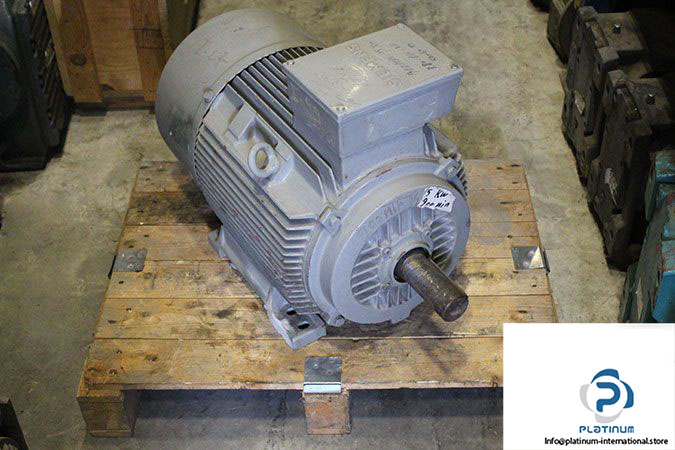

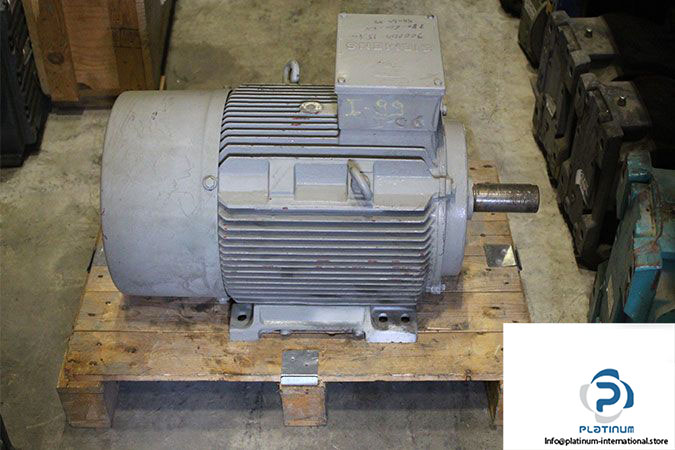

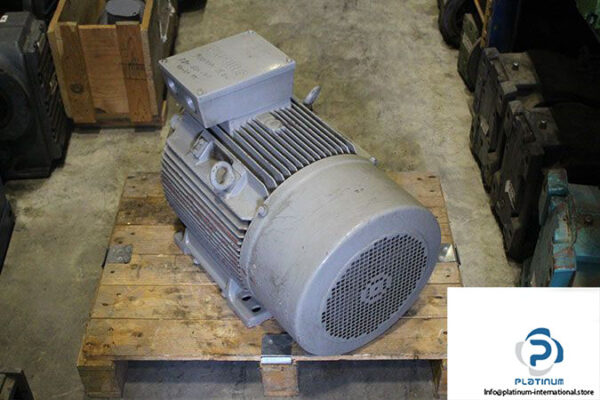

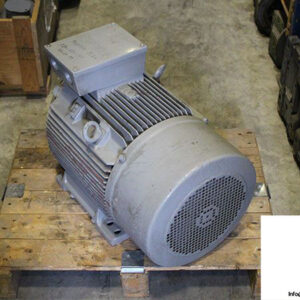

SIEMENS 1LA6186-6AA61-Z 3 PHASE ELECTRIC MOTOR

The Siemens 1LA6186-6AA61-Z is a robust and energy-efficient 3-phase electric motor engineered for heavy-duty industrial operations. Featuring dual-frequency compatibility and a high protection class, this motor delivers powerful performance and long-term reliability.

Manufacturer: Siemens
Type: 3 Phase Electric Motor
Model: 1LA6186-6AA61-Z
REF NO: 120483/1993
Frame Size: 180L

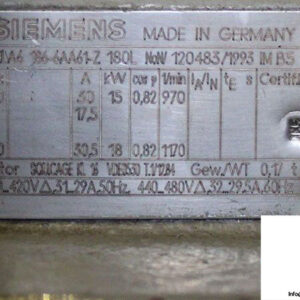

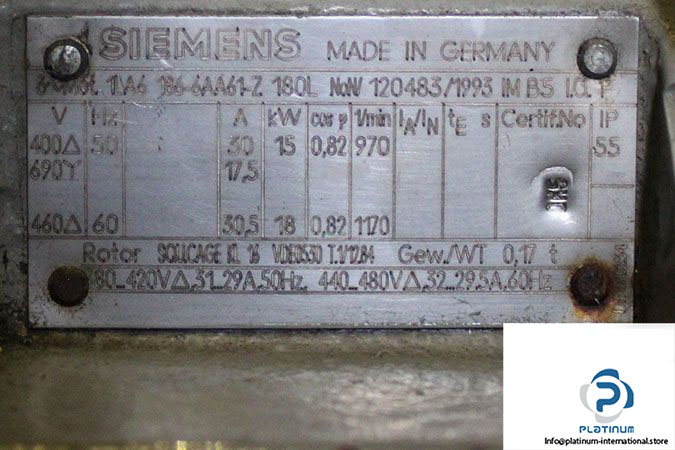

Technical Information

• Number of Pole: 6
• Rated Voltage at 50Hz: 400 / 690 V (Delta/Star)
• Rated Current at 50Hz: 30 / 17.5 A
• Rated Torque: 148 Nm
• Rated Power at 50Hz: 15.0 kW
• Rated Speed at 50Hz: 970 min»¹
• Moment of Inertia: 0.2 J
• Power Factor: 0.82
• Efficiency: 89.0%
• Rated Voltage at 60Hz: 460 V (Delta)
• Rated Current at 60Hz: 30.5 A
• Rated Power at 60Hz: 18.0 kW
• Rated Speed at 60Hz: 1170 min»¹
• Power Factor (60Hz): 0.82
• Mounting Position: B5
• Protection Class: IP55
• Insulation Class: F
