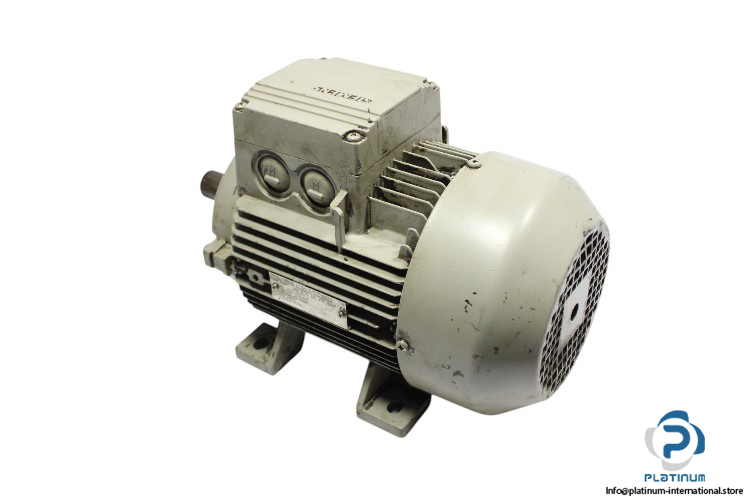

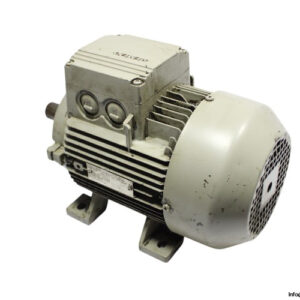

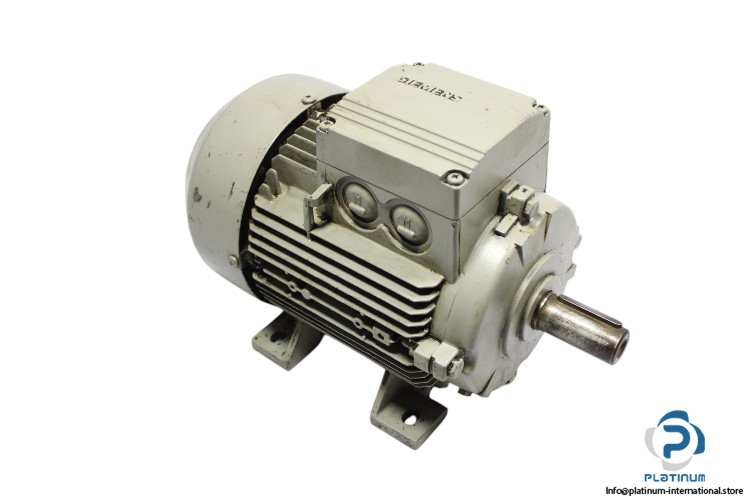

SIEMENS 3-PHASE ELECTRIC MOTOR
The Siemens 3-Phase Electric Motor (Model: 1LA71070AB60-Z) is designed for high efficiency and durability in industrial applications. With a rated power range of 0.90 kW to 1.5 kW, this motor operates reliably at a frequency of 50 Hz and offers flexibility in voltage (380 “ 420 V). Its protection class IP55 ensures robust performance even in harsh environments, while the motor’s insulation class F guarantees enhanced durability.
Manufacturer: Siemens
Type: 3-Phase Electric Motor
Model: 1LA71070AB60-Z
Technical Specifications
- Rated Voltage: 400 / (380 “ 420) V Delta/star
- Rated Speed: 690 / 1400 RPM
- Rated Power: 0.90 / 1.5 kW
- Rated Current: 2.5 / 3.65 / (2.75 “ 2.90 / 3.95 “ 4.30) A
- Frequency: 50 Hz
- Power Factor: 0.71 / 0.80
- Mounting Position: IMB3
- Protection Class: IP55
- Insulation Class: F
