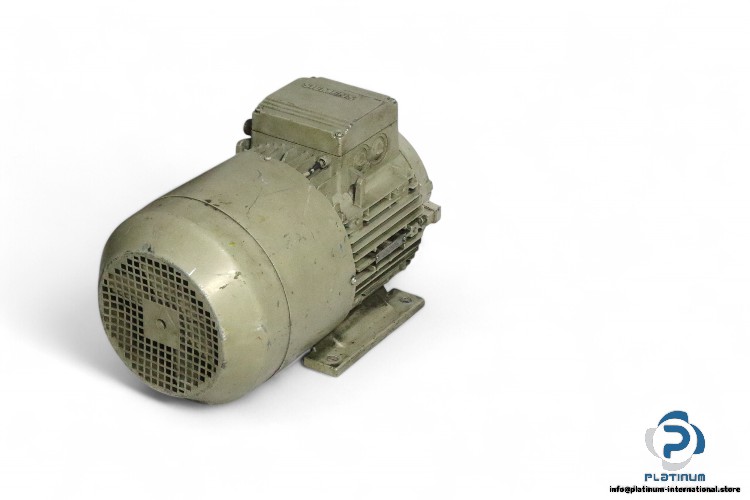

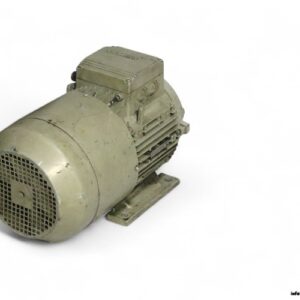

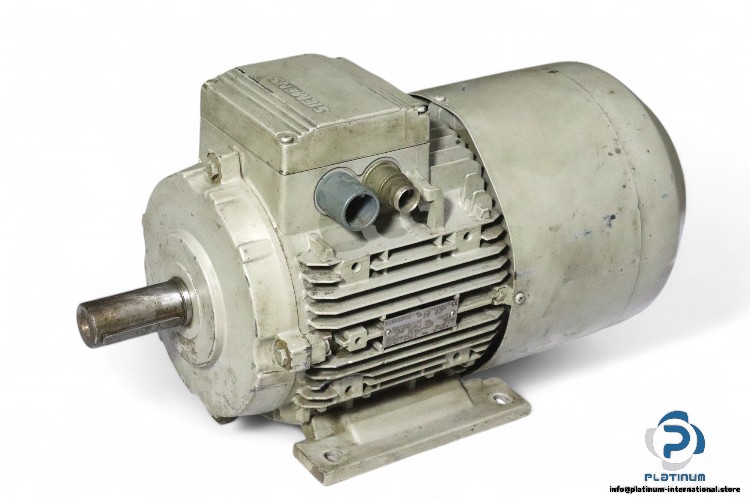

SIEMENS 1LA7134-6AA10-Z BRAKE MOTOR
The SIEMENS 1LA7134-6AA10-Z Brake Motor is a reliable and high-performance motor designed for various industrial applications. It provides efficient power transmission with precise control, offering rated power of 5.5 kW at 50 Hz and 6.3 kW at 60 Hz. It includes a 2LM8100-7NA10 BRAKE for enhanced braking performance.
Manufacturer: SIEMENS
Type: Brake Motor
Model: 1LA7134-6AA10-Z

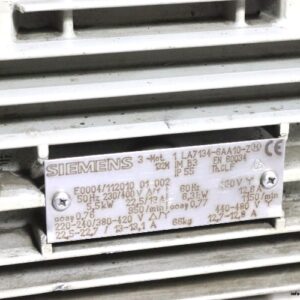

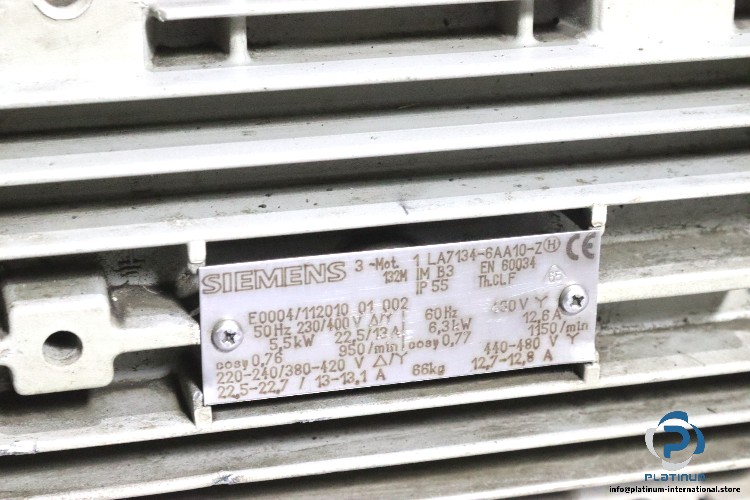

Technical Specifications
At 50 Hz:
- Rated Power [kW]: 5.5
- Rated Voltage [V]: 230/400 Delta/Star
- Rated Current [A]: 22/13
- Rated Speed [RPM]: 950
- Power Factor: 0.76
At 60 Hz:
- Rated Voltage [V]: 460 Star
- Rated Current [A]: 12.6
- Rated Speed [RPM]: 1150
- Rated Power [kW]: 6.3
- Power Factor [cosø]: 0.77
Additional Specifications
- Mounting Position [IM]: B3
- Protection Class [IP]: 55
- Thermal Class: F

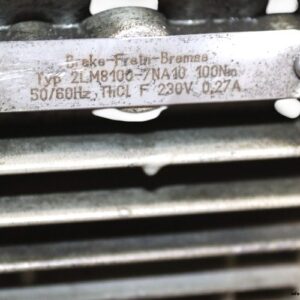

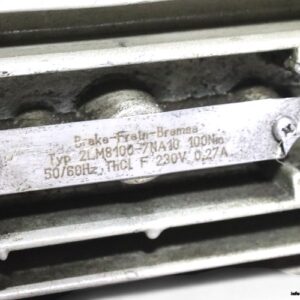

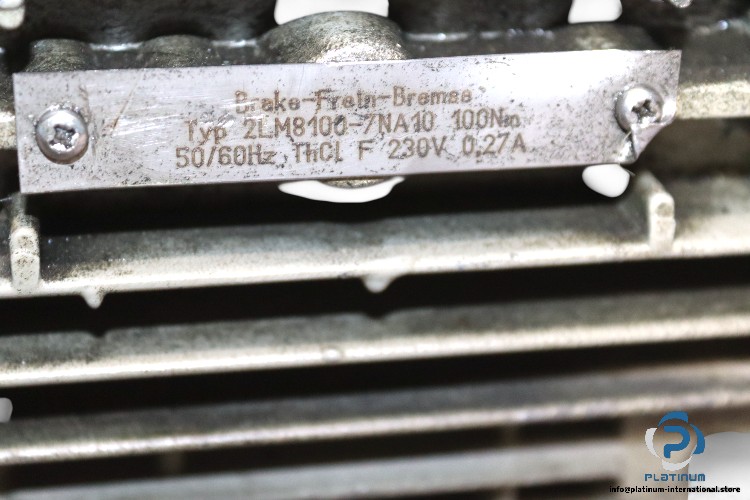

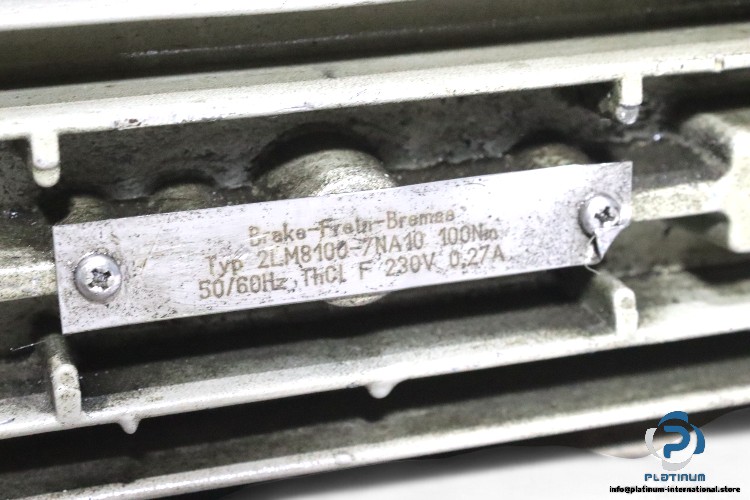

- Attached with: 2LM8100-7NA10 BRAKE
- Brake Voltage [V]: 230
- Frequency: 50/60 Hz
- Brake Torque [Nm]: 100
- Brake Current [A]: 0.27
