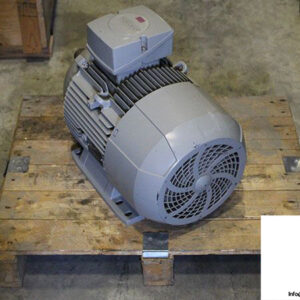

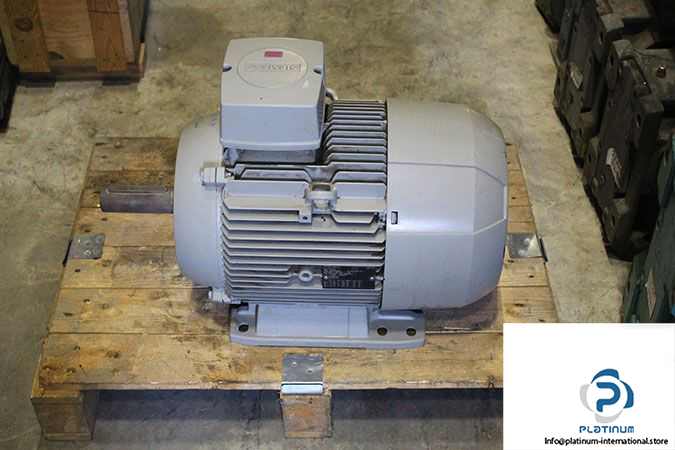

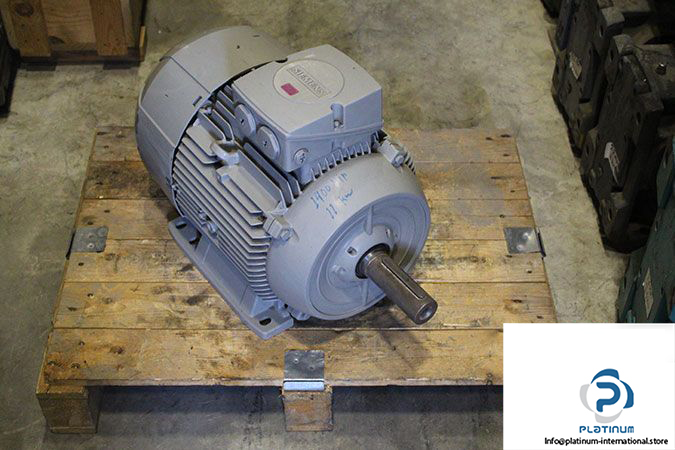

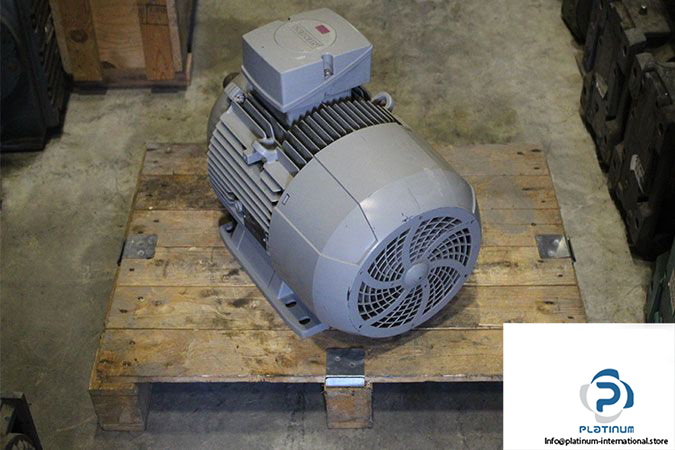

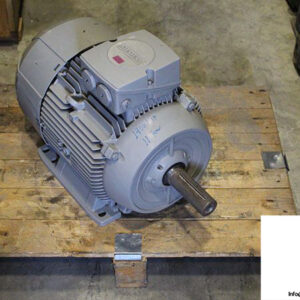

SIEMENS 1LE1001-1DB22-2AB4 3 PHASE ELECTRIC MOTOR
The Siemens 1LE1001-1DB22-2AB4 is a high-efficiency three-phase electric motor engineered for continuous-duty industrial applications. Built with durable aluminum housing and IC411 cooling, it ensures optimal performance and long-term reliability in demanding environments.
Manufacturer: Siemens
Type: 3 Phase Electric Motor
Model: 1LE1001-1DB22-2AB4
Part No.: 1105/1360932-001-1
Standard: IEC/EN 60034

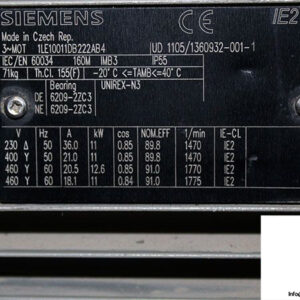

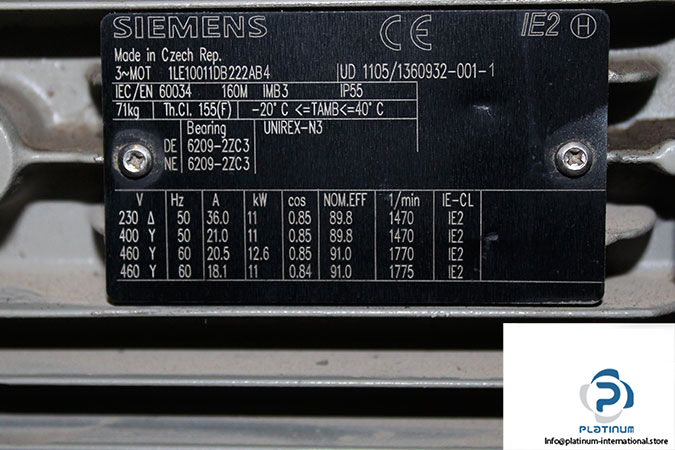

Technical Information
- Rated Voltage at 50Hz: 230 / 400 V (Delta / Star)
- Rated Current: 36 / 21 A
- Rated Torque: 71 Nm
- Rated Power: 11.0 kW
- Rated Speed: 1470 min»¹
- Power Factor: 0.85
- Efficiency η: 89.8%
- Rated Voltage at 60Hz: 460 V (Star)
- Rated Current: 20.5 / 18.1 A
- Rated Torque: 68.0 / 59.0 Nm
- Rated Power: 12.6 / 11.0 kW
- Rated Speed: 1770 / 1775 min»¹
- Power Factor: 0.85 / 0.84
- Efficiency η: 91.0%
- Moment of Inertia: 0.0550 kg·m²
- Lubricants: Unirex N3
- Frame Material: Aluminum
- Bearing (DE / NDE): 6209 2Z C3 / 6209 2Z C3
- Cooling Method: IC411 “ Self Ventilated, Surface Cooled
- Ambient Temperature: -20 to 40 °C
- Thermal Class: B to F (130 to 155)
- IE Classification: IE2 (High Efficiency)
- Mounting Position: B3
- Duty: S1
