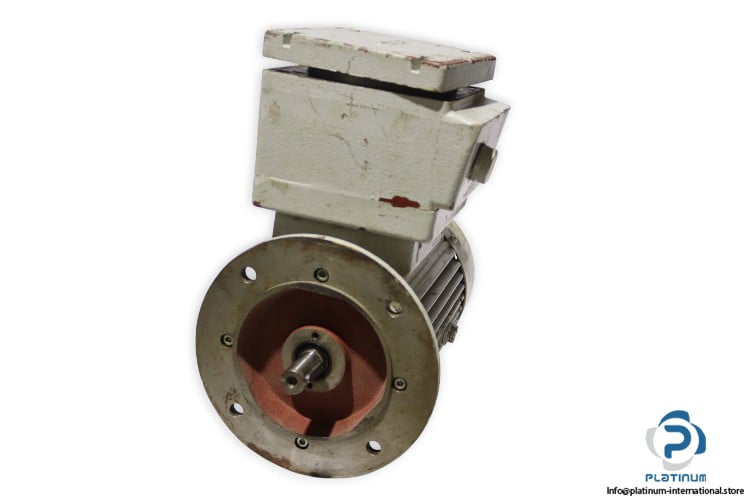

Siemens 1MJ60804CA91 Z Explosion-Proof Three-Phase Induction Motor
The Siemens 1MJ60804CA91 Z is a high-performance explosion-proof three-phase induction motor designed for maximum safety and efficiency in hazardous environments. Built to operate reliably under extreme conditions, this motor combines durability, precision, and energy efficiency, making it ideal for industrial plants, refineries, and chemical facilities where safety is critical.

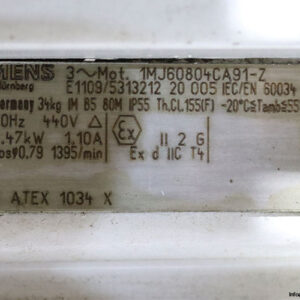

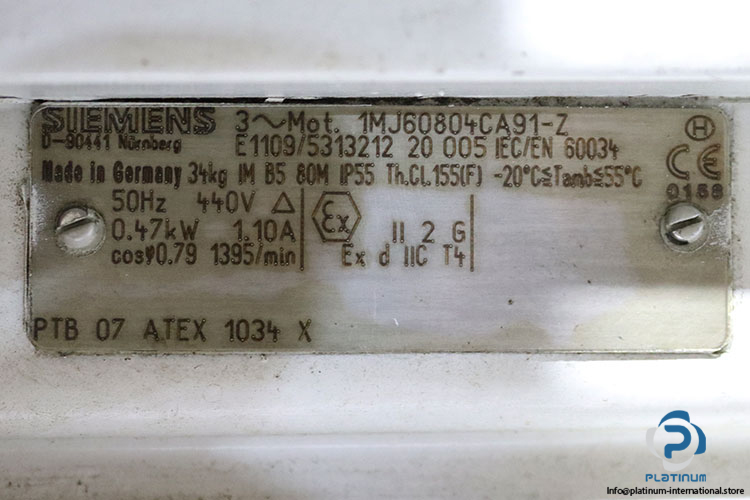

Manufacturer: Siemens
Type: Explosion-Proof Three-Phase Induction Motor
MNR: 1MJ60804CA91 Z
Manufacturer Code: E1109/5313212
Technical Information
- Power Rating: 0.47 kW
- Voltage: 440 V (Δ connection)
- Current: 1.10 A
- Frequency: 50 Hz
- Power Factor (cos φ): 0.79
- Speed: 1395 rpm
- Duty Type: Continuous (S1)
- Thermal Class: 155 (Class F)
- Insulation System: Class F (155 °C)
- Protection Class: IP55
- Certification Code: PTB 07 ATEX 1034 X
- Protection Type: Ex d IIC T4
- Ambient Temperature Range: -20 °C to +55 °C
- Compliance Standards: IEC / EN 60034
- Marking: CE + Ex symbol
This Siemens explosion-proof motor ensures consistent performance in environments with potentially explosive atmospheres. With its IP55 protection and ATEX certification, it offers superior resistance to dust, moisture, and gas, ensuring long operational life. Engineered for energy efficiency and continuous duty, this motor delivers smooth operation with minimal maintenance needs. Perfect for oil and gas applications, chemical processing, and other hazardous area installations.
