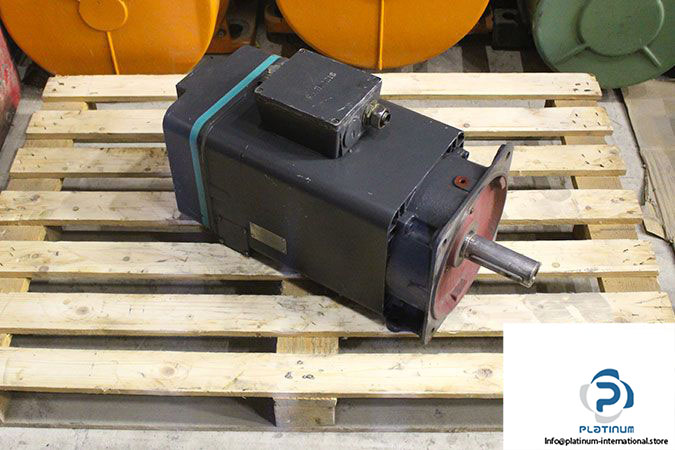

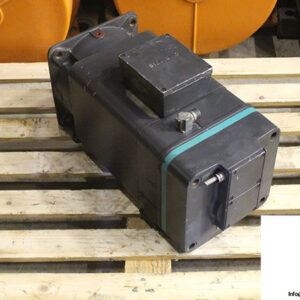

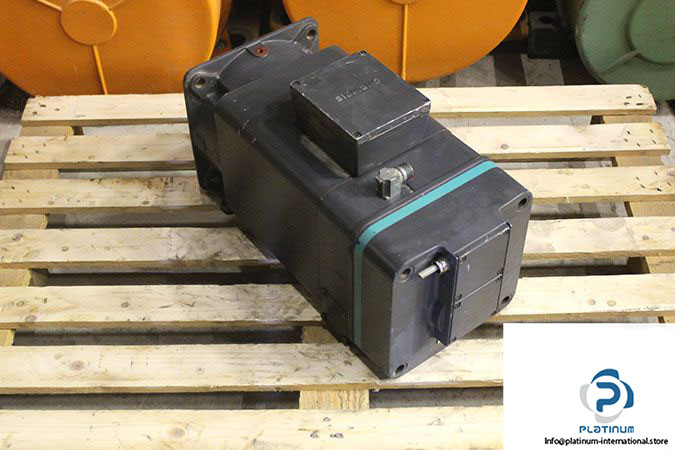

SIEMENS 1PH6133-4NF46 AC SERVO MOTOR

The Siemens 1PH6133-4NF46 is a high-performance AC servo motor engineered for industrial-grade applications requiring superior speed control, accuracy, and continuous or intermittent operation. Built with high-speed capabilities and reliable protection features, it offers dependable performance across dynamic automation systems.

Manufacturer: Siemens
Type: AC Servo Motors
Model: 1PH6133-4NF46

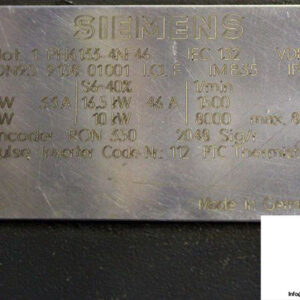

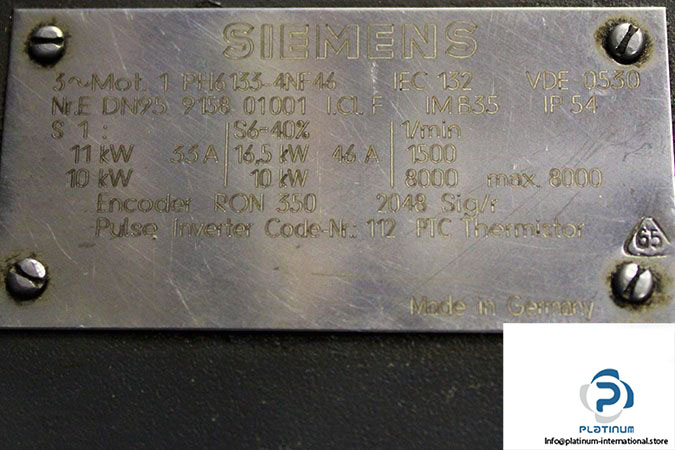

Nr E.: DN95 9158 01001
Code No: 112

Technical Information

• Series: 6
• Frame Size: 13
• Length: 3
• Rated Power [kW]: 10-11 / 10-16.5
• Rated Current [A]: 33 / 46
• Rated Speed [rpm]: 1500 / 8000
• Max. Speed [rpm]: 8000
• Encoder: RON 350, 2048 Sig/r
• Resolution: 2048 pulses/rev
• Duty: S1 Continuous / S6 40%
• Protection Class [IP]: 54
• Mounting Position [IM]: B35
• Insulation Class: F
