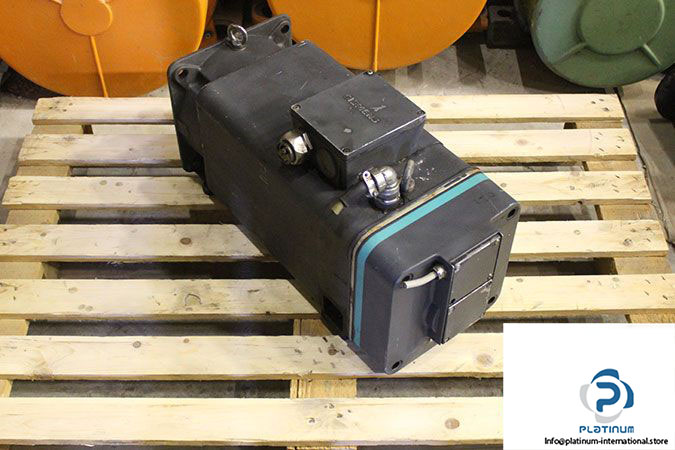

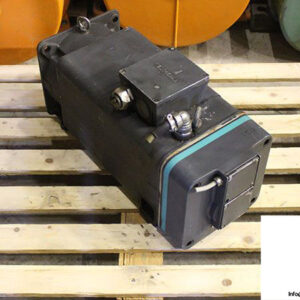

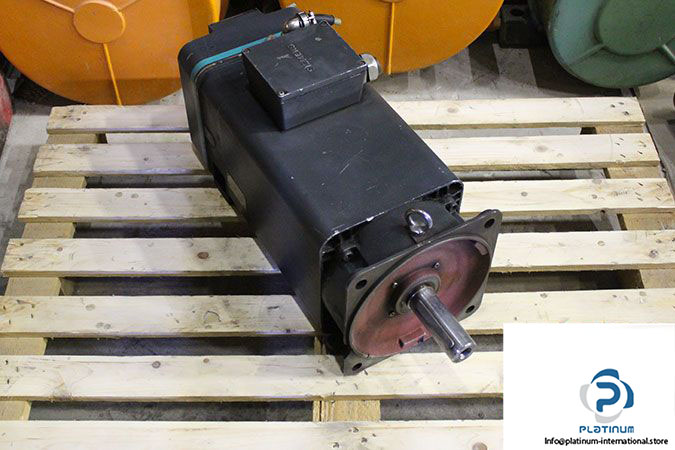

SIEMENS 1PH6135-4CF46 AC SERVO MOTOR

The Siemens 1PH6135-4CF46 is a high-performance AC servo motor designed for demanding industrial automation applications. With precise speed control, robust construction, and efficient torque delivery, it is ideal for continuous and intermittent duty cycles in machinery and motion systems.

Manufacturer: Siemens
Type: AC Servo Motor
Model: 1PH6135-4CF46
Part No.: CO93 0772 01003
Series: 6

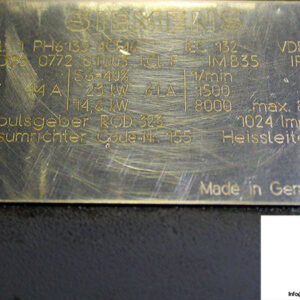

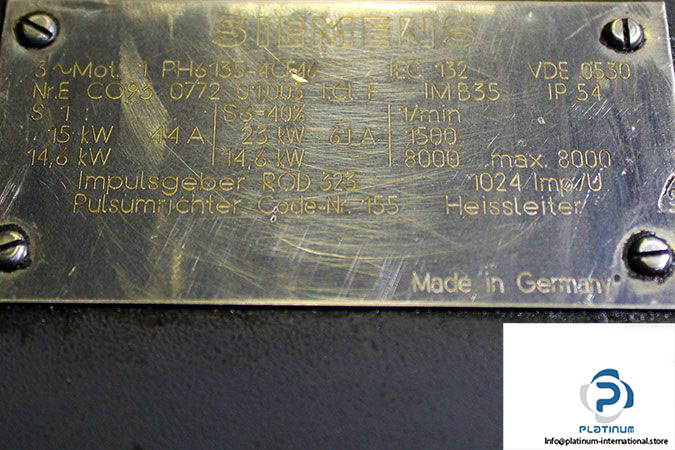

Technical Information

• Frame Size: 13
• Length: 5
• Rated Power [kW]: 14.6-15 / 14.6-23
• Rated Current [A]: 44 / 61
• Rated Speed [rpm]: 1500
• Max. Speed [rpm]: 8000
• Duty: S1 Continuous / S6 40%
• Mounting Position [IM]: B35
• Protection Class [IP]: 54
• Thermal Class: F
• Impulse Encoder Model: ROD 323
• Code No.: 155
• Impulse: 1024 IMP/U
