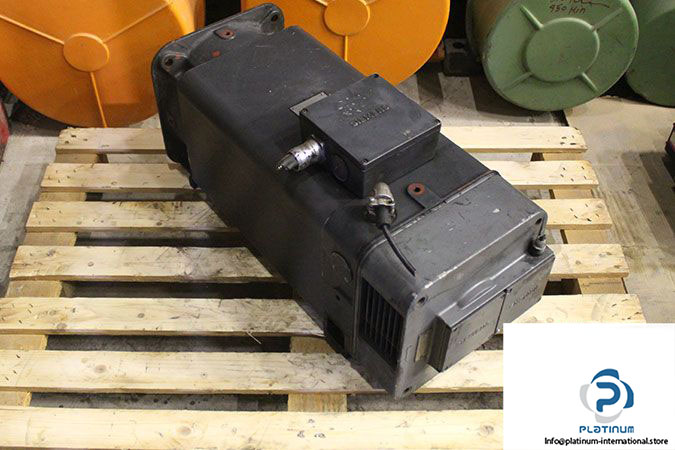

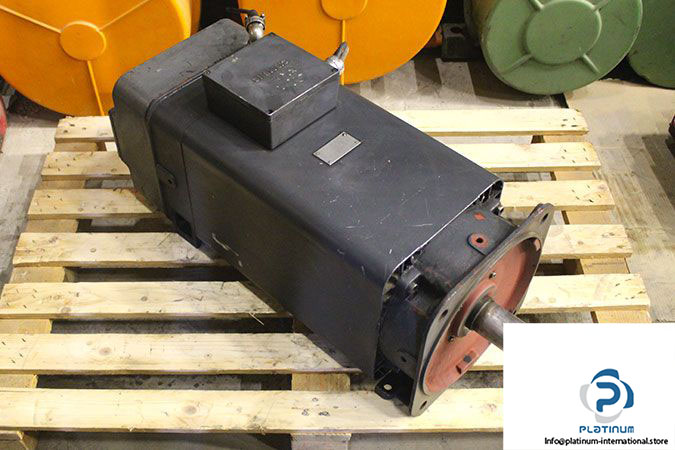

SIEMENS 1PH6167-4CF06-Z AC SERVO MOTOR WITH FAN
The Siemens 1PH6167-4CF06-Z is a high-performance AC servo motor engineered for dynamic motion control and continuous operation in demanding industrial applications. Designed with a robust construction and precision encoder, this unit delivers exceptional power, speed range, and thermal stability. It includes a dedicated Siemens 2CW8387 cooling fan for optimal thermal management under continuous and cyclic duty cycles.
Manufacturer: Siemens
Type: AC Servo Motor
Model: 1PH6167-4CF06-Z
Series: 6
Code No: 168
Frame Size: 16
Length: 7
Nr.E: H369 8162 01 001

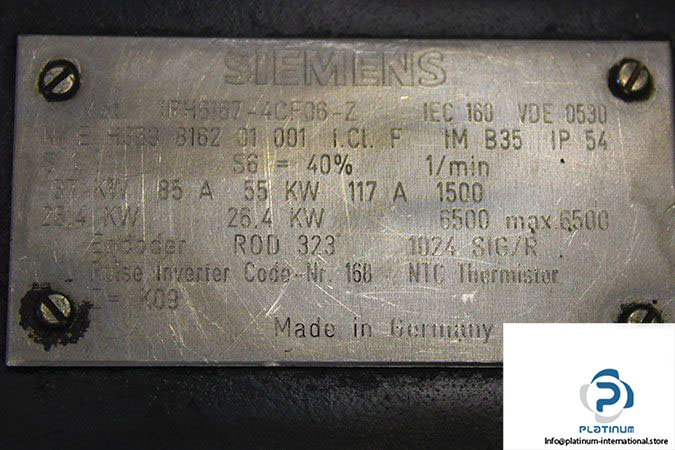

Motor Technical Information
- Rated Current: 85/117 A
- Rated Power: 26.4“37.0 / 26.4“55.0 kW
- Rated Speed: 1500 rpm
- Max. Speed: 6500 rpm
- Encoder Type: ROD 323 1024 SIG/R
- Duty Cycle: S1 Continuous / S6 40%
- Mounting Position [IM]: B35
- Protection Class [IP]: 54
- Thermal Class: F

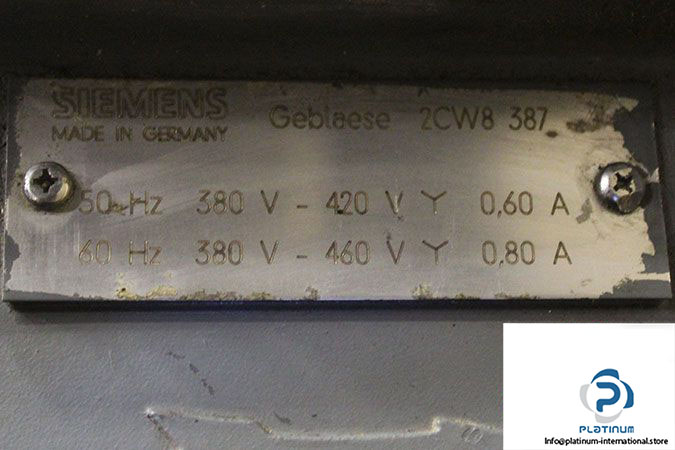

Cooling Fan Technical Information
- Manufacturer: Siemens
- Type: Fan
- Model: 2CW8387
- Rated Voltage: 380“420 / 380“460 V
- Rated Current: 0.6 / 0.8 A
- Frequency: 50 / 60 Hz
