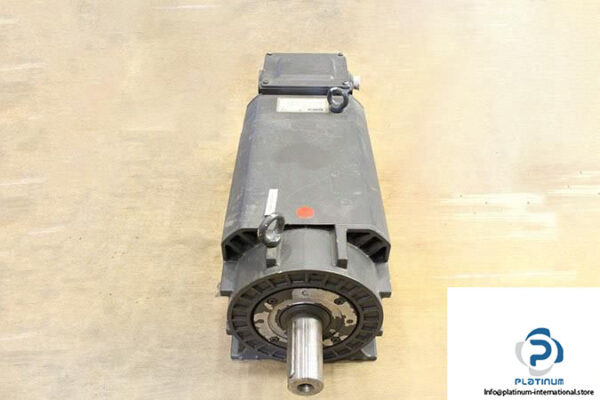

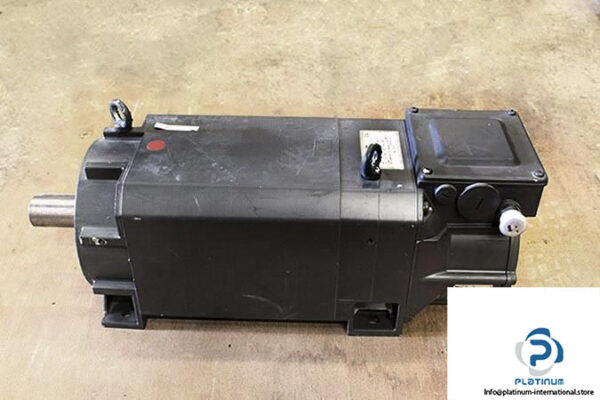

SIEMENS SINAMICS S 1PH7 ASYNCHRONOUS INDUCTION MOTOR

The Siemens SINAMICS S 1PH7 asynchronous induction motor delivers high-performance power and precision, ideal for demanding industrial applications. Built with robust construction and an integrated external fan unit, this motor supports reliable operation under various mounting positions. Its advanced incremental encoder system ensures accuracy in motion control systems.

Manufacturer: SIEMENS
Type: Asynchronous Induction Motor
Family: SINAMICS S 1PH7

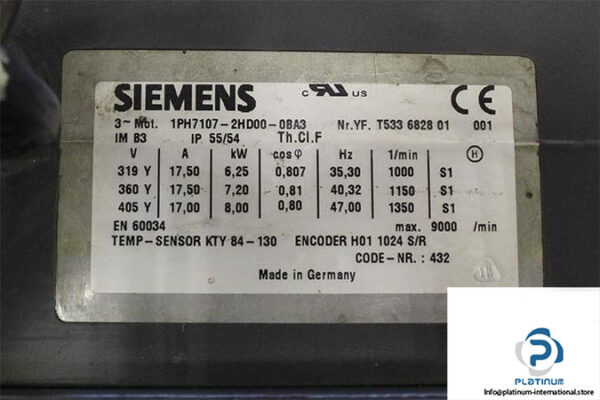

MRN: 1PH71072HD000BA3
NR YF: T533 6828 01 001
Code No.: 432

Technical Information

• Encoder System: Incremental Encoder HTL, 1024 Pulses/Rev
• Encoder Model: H01 1024 S/R

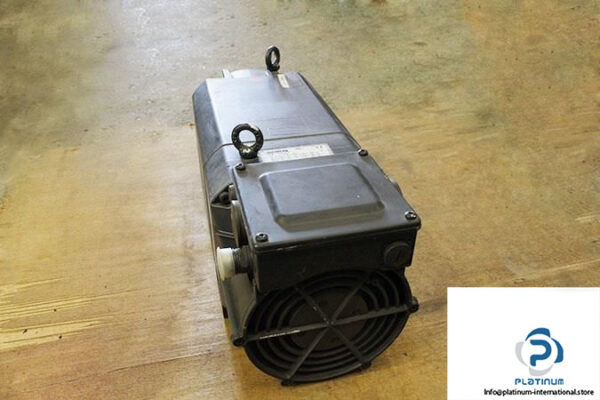

• Fan: External Fan Unit, Heavy-Gauge Threaded Cable Entry in IM B3 (IMV5, IM V6) Terminal Box
• Voltage: 319 / 360 / 405 V AC
• Frequency: 35.3 / 40.32 / 47 Hz
• Power: 6.25 / 7.2 / 8 KW
• Torque: 60 Nm
• Max Speed: 9000 rpm
• Current: 17.5 / 17 A
• Shaft Height: SH100
• Moment of Inertia: 0.029 kgm²
• Thermal Class: F
• Protection: IP 55 / IP 54
