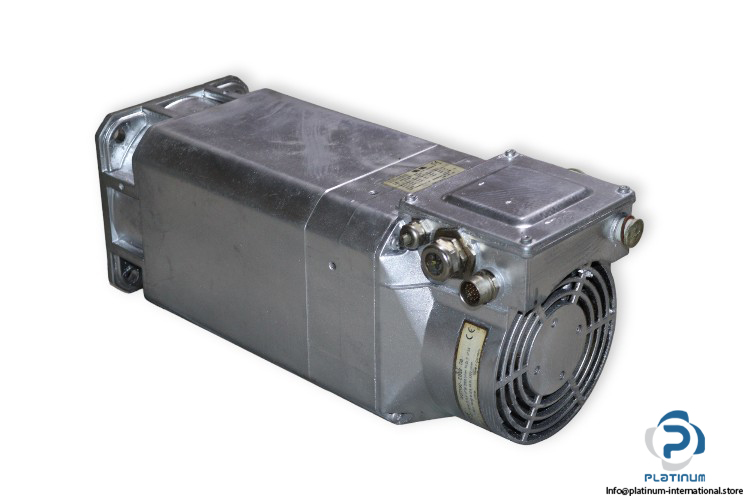

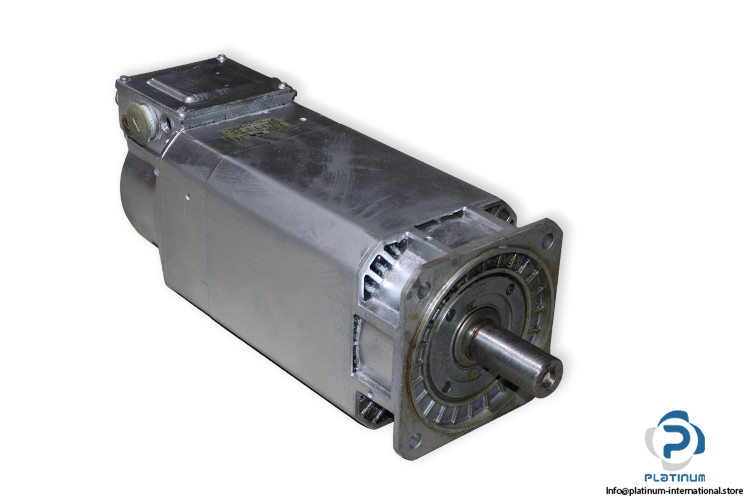

SIEMENS 1PH7107-2NF02-0CJ0 SERVO MOTOR WITH EBM W2D160-EB22-08 FAN

The Siemens 1PH7107-2NF02-0CJ0 servo motor delivers powerful, efficient performance with wide-ranging operational capabilities. Ideal for demanding automation systems, it features multiple rated values, high max speed, and precise control via encoder feedback. It comes paired with the EBM W2D160-EB22-08 fan for optimized cooling and enhanced reliability in continuous operation.

Manufacturer: Siemens
Type: Servo Motor
Model: 1PH7107-2NF02-0CJ0
nr yf: M110 6457 01 001
Code No.: 429

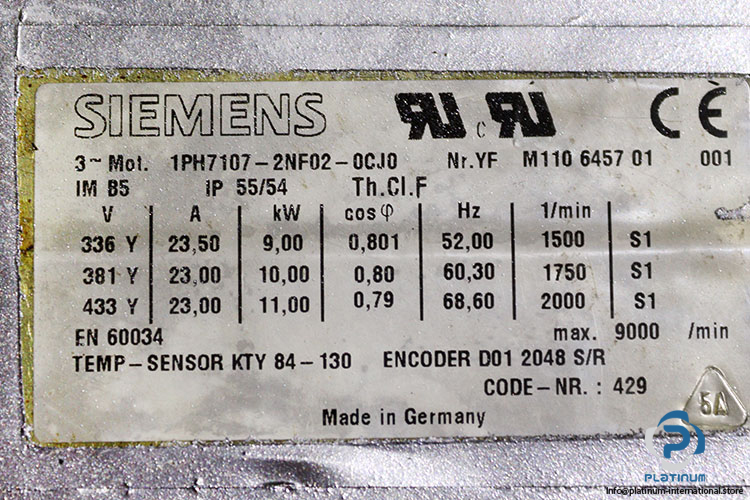

Technical Information “ Servo Motor

• Rated Current [A]: 23.5 / 23.0 / 23.0
• Rated Voltage [V]: 336 / 381 / 433
• Rated Power [kW]: 9.0 / 10.0 / 11.0
• Rated Speed [min-1]: 1500 / 1750 / 2000
• Max. Speed [min-1]: 9000
• Frequency [Hz]: 52.0 / 60.3 / 68.6
• Power Factor [cos φ]: 0.801 / 0.8 / 0.79
• Protection Class [IP]: 55 / 54
• Mounting Position [IM]: B5
• Thermal Class: F
• Duty: S1
• Encoder: D01 2048 S/R

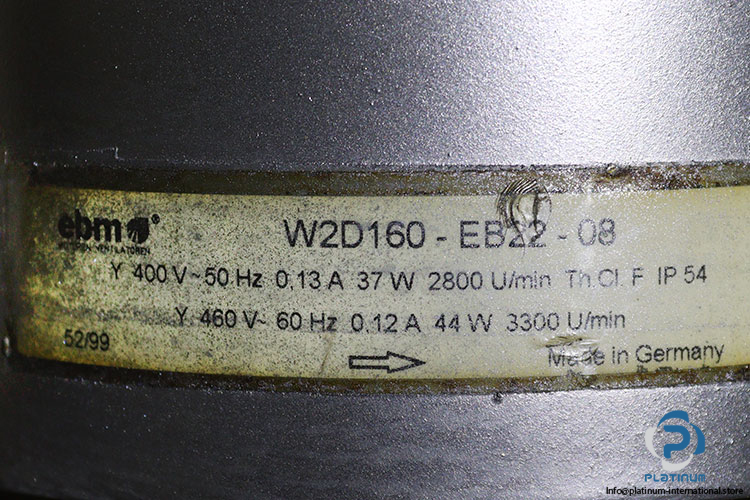

Attachment “ Cooling Fan

Manufacturer: EBM
Type: Fan
Model: W2D160-EB22-08

• Rated Voltage [V]: 400 / 460
• Rated Current [A]: 0.13 / 0.12
• Rated Power [W]: 37 / 44
• Rated Speed [rpm]: 2800 / 3300
• Frequency [Hz]: 50 / 60
• Protection Class [IP]: 54
• Thermal Class: F
