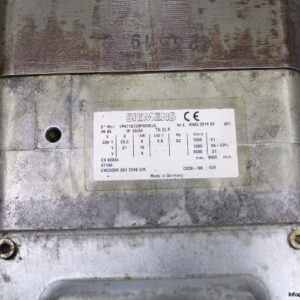

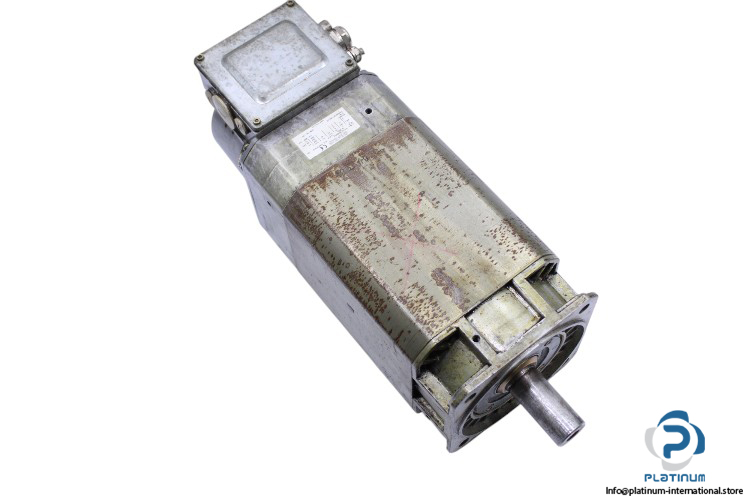

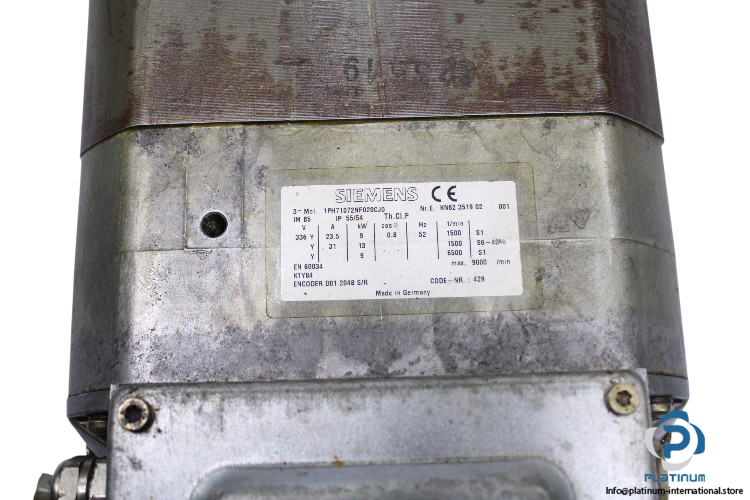

SIEMENS 1PH71072NF020CJ0 ASYNCHRONOUS MOTOR
The Siemens 1PH71072NF020CJ0 is a high-performance asynchronous motor engineered for industrial precision, durability, and flexibility in dynamic operating conditions. With a wide speed range and dual-duty capability (S1/S6), it ensures reliable performance in continuous and cyclic applications. This robust motor is equipped with advanced protection, a high-resolution encoder, and is ideal for integration in systems requiring exacting speed control and operational stability.
Manufacturer: SIEMENS
Type: Asynchronous Motor
Model: 1PH71072NF020CJ0
nr. E: KN62 3510 02 001
Code no: 429
Technical Information
- Rated Current [A]: 23.5/31
- Rated Voltage [V]: 336
- Rated Power [kW]: 9.0/13.0/9.0
- Rated Speed [min»¹]: 1500/1500/6500
- Max. Speed [min»¹]: 9000
- Frequency [Hz]: 52
- Power Factor [cos φ]: 0.8
- Mounting Position [IM]: B5
- Duty: S1/S6/S1
- Encoder: D01 2048 S/R
- Thermal Class: F
- Protection Class: IP55/54
