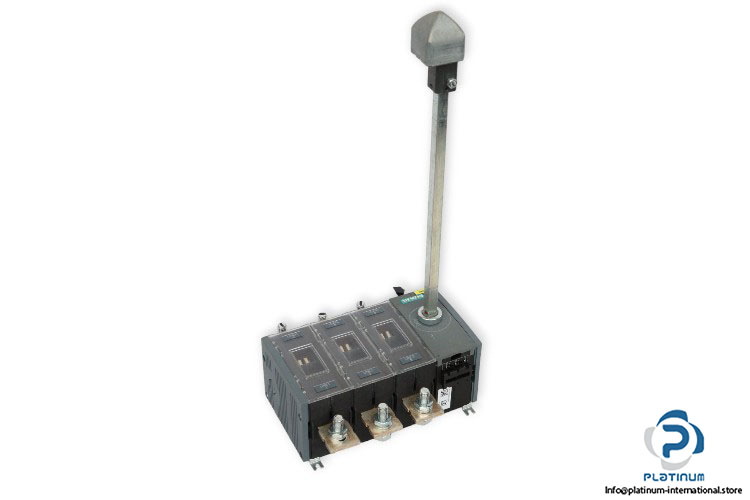

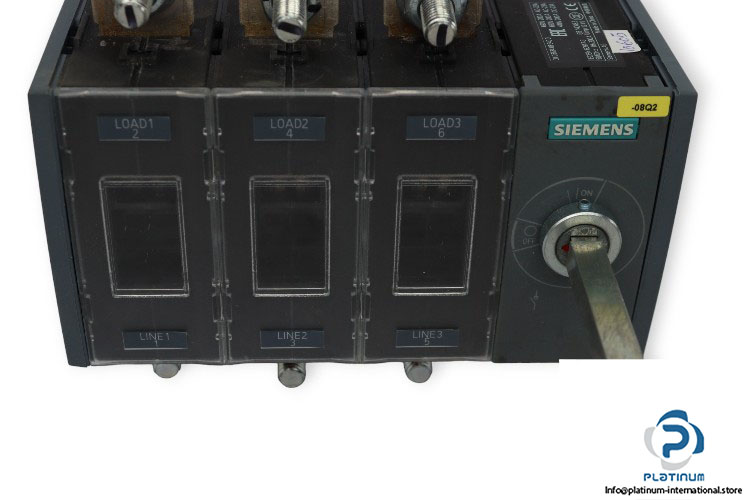

Manufacture: Siemens
Type: Switch disconnector

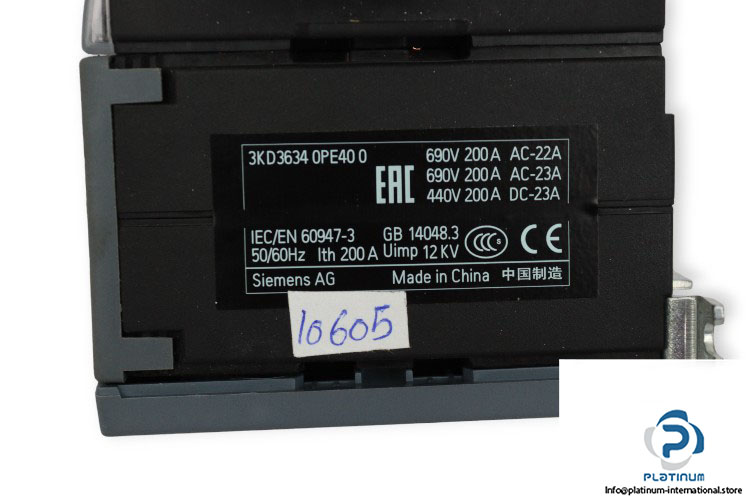

MNR: 3KD3634 0PE40 0
Family: SENTRON

Product Designation: 3KD switch disconnector
Design Of The Product: Switch
Design Of The Actuating Element: With handle
Size of switch disconnector: 3
Number of Poles: 3
Thermal current Ith: 200 A
Insulation Voltage: 1000 V
Rated impulse with stand voltage Uimp: 12 kV
Operating Power: 132 kW
Switching capacity:
AC-22A: 690 V AC,200 A
AC-23A: 690 V AC,200 A
DC-23A: 440 V DC,200 A
No. of NC contacts for auxiliary contacts: 6
No. of NO contacts for auxiliary contacts: 6
Fastening Method: screw fixing
Dimensions (W x D x H): 164 x 198.5 x 95 mm
Protection Class on the front: IP00
Operating Ambient Temperature: -25 … 70 °C
