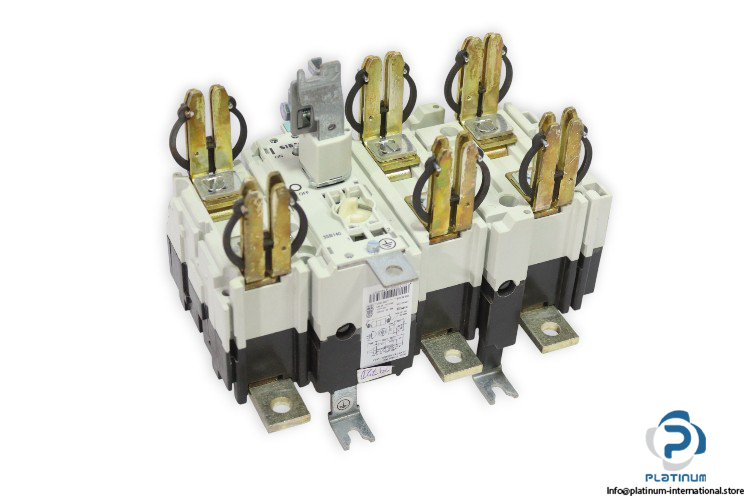

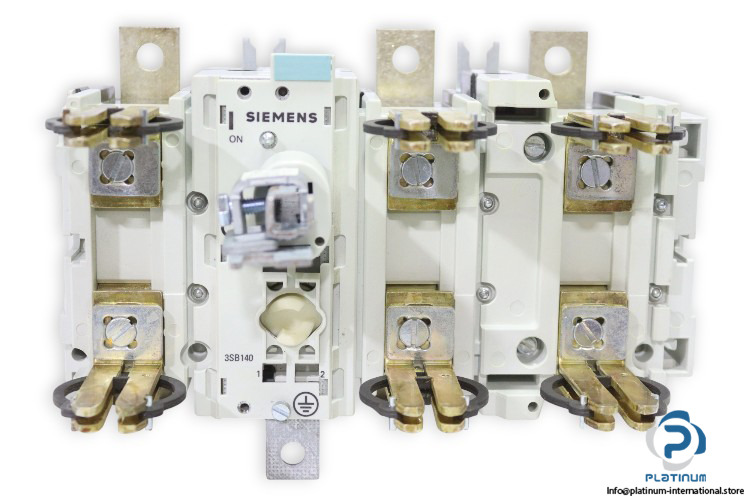

SIEMENS 3KL5730-1AB01 Fuse Switch Disconnector
The SIEMENS 3KL57301AB01 from the SENTRON series is a reliable fuse switch disconnector engineered for safe and efficient power distribution. Designed for demanding industrial environments, it ensures dependable switching, isolation, and protection with high performance and durability.
Manufacturer: SIEMENS
Type: Fuse Switch Disconnector
Model: 3KL5730-1AB01

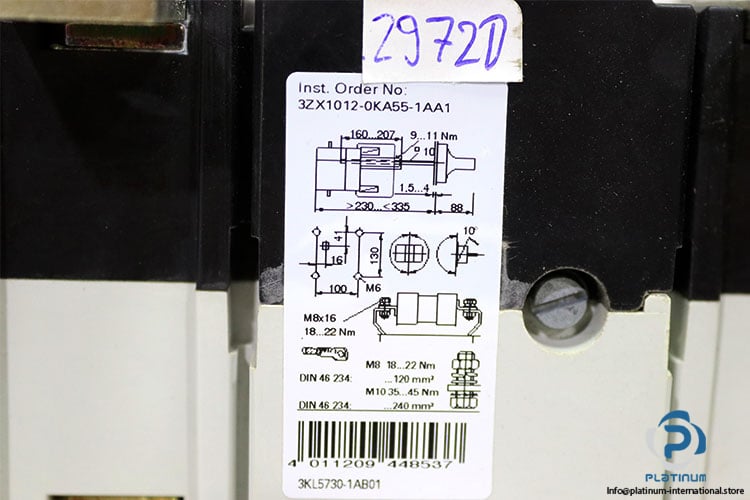

Order No.: 3ZX1012-0KA55-1AA1
Technical Information
- Brand Name: SENTRON
- Short Name: 3KL5
- Rated Operational Voltage: 690 V AC / 440 V DC
- Rated Operational Current: 400 A
- Frequency: 50 / 60 Hz
- Operating Power Max.: 280000 W
- Power Loss: 28.7 W
- Rated Short-Circuit Current: 80 kA
- Fuse Type: LV HRC fuse
- Fuse Link Size: NH1, NH2
- Pole No.: 3
- Protection Class: IP00
- Ambient Temperature: -25 / 55 °C
- Dimensions: 160 x 247 x 209 mm
