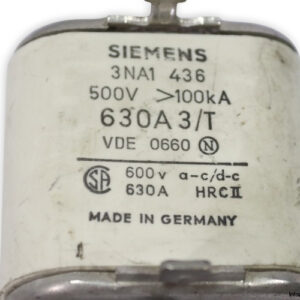

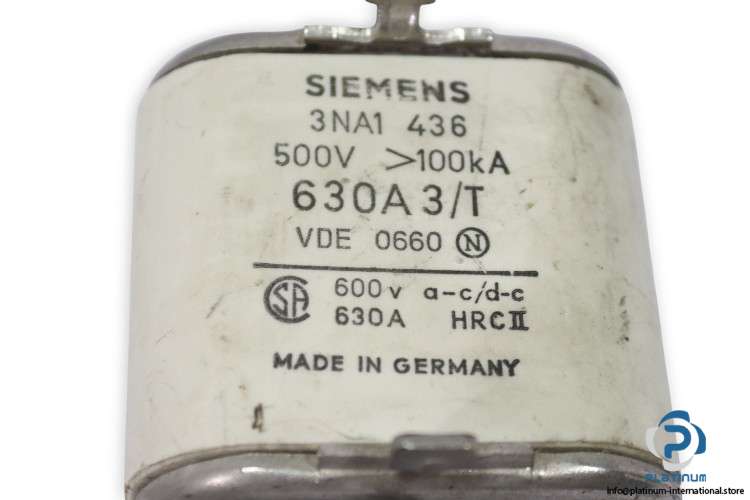

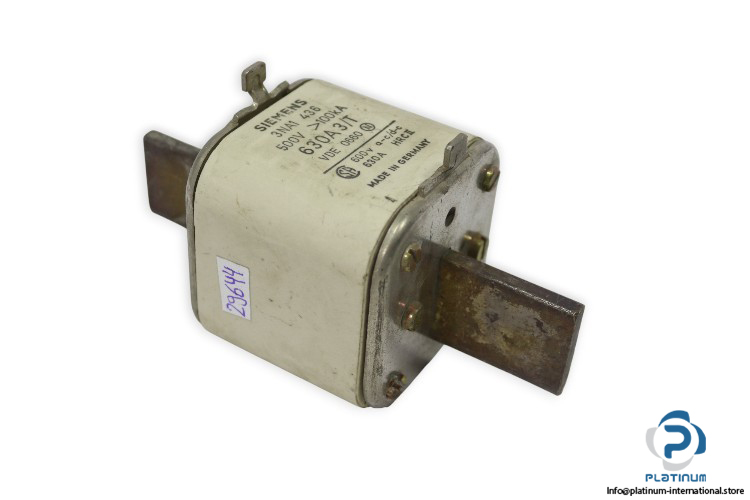

Siemens SENTRON 3NA1436 Fuse-Link

The Siemens SENTRON 3NA1436 is a high-quality LV HRC fuse-link designed for reliable circuit protection. With robust performance, clear front indication, and compliance with international standards, it ensures safety and efficiency in industrial electrical systems.

Manufacturer: Siemens
Type: Fuse-Link
MRN: 3NA1436
Product Brand Name: SENTRON

Technical Information

• Design of Identification Indicator: Front Indicator
• Design of Fuse Link: LV HRC Design
• Operating Class: 3/T
• Size: NH3
• Circuit-Breaker / Design: 3NA
• Operating Voltage: 500 V AC
• Rated Operating Current: 630 A
• Switching Capacity Current (IEC 60947-2): 100 kA
• Standard: VDE 0660
• Ambient Temperature During Operation: -20 °C to +50 °C
• Additional Rating: 600 V AC/DC, 630 A, HRC II
