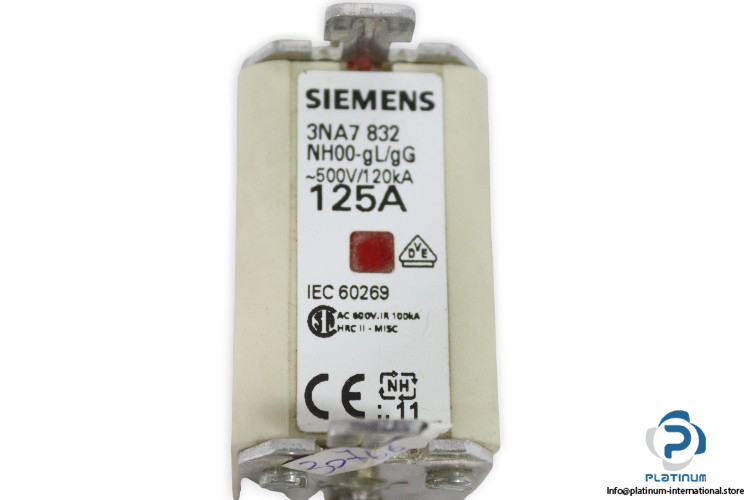

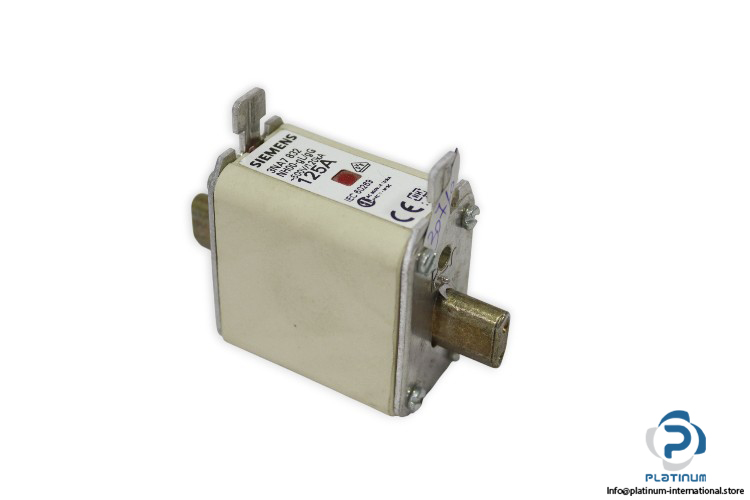

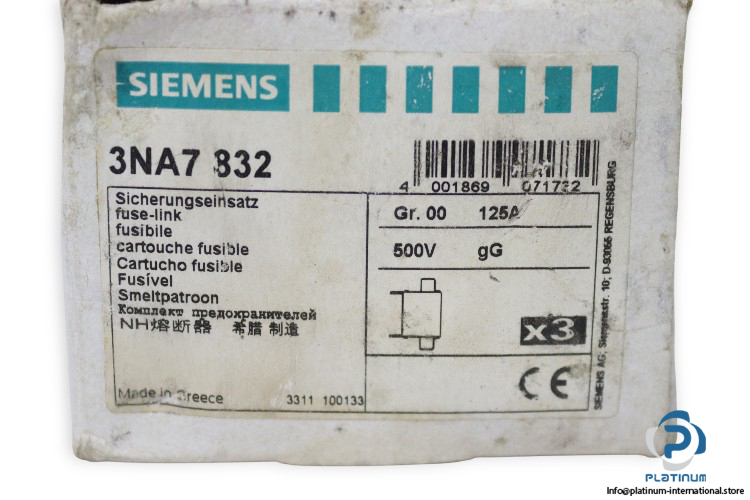

Siemens 3NA7832 LV HRC Fuse Link

The Siemens 3NA7832 LV HRC Fuse Link is part of the SENTRON series, designed for safe and efficient protection of electrical systems. Built according to IEC 60269 standards, it ensures reliable performance with high switching capacity and robust design.

Manufacturer: Siemens
Type: LV HRC Fuse Link
MRN: 3NA7832
SN: 4 001869 071722
Product Brand Name: SENTRON
Product Designation: LV HRC Fuse Link

Technical Information

• Size: NH00
• Rated Voltage: 500 V AC
• Rated Current: 125 A
• Switching Capacity Current: 120 kA
• Operating Class: GL/GG
• Ambient Operating Temperature: -5 / 40°C
• Width of Enclosure: 30 mm
• Standard: IEC 60269
