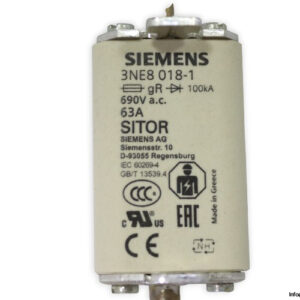

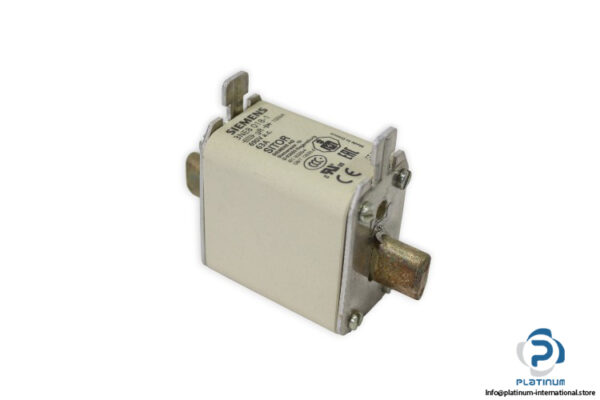

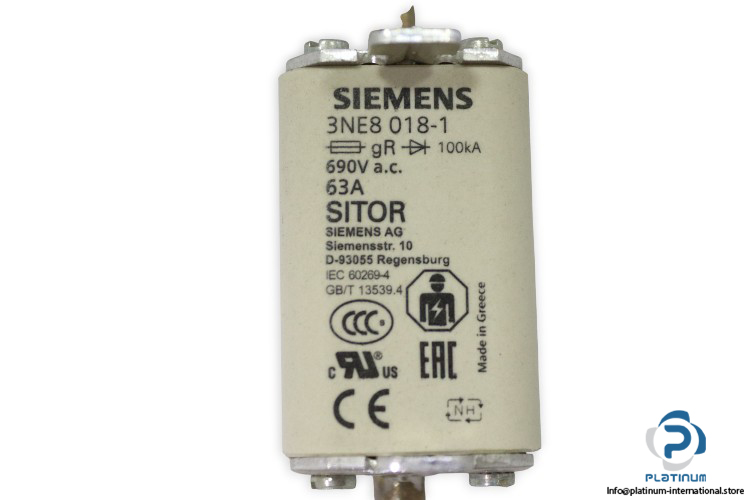

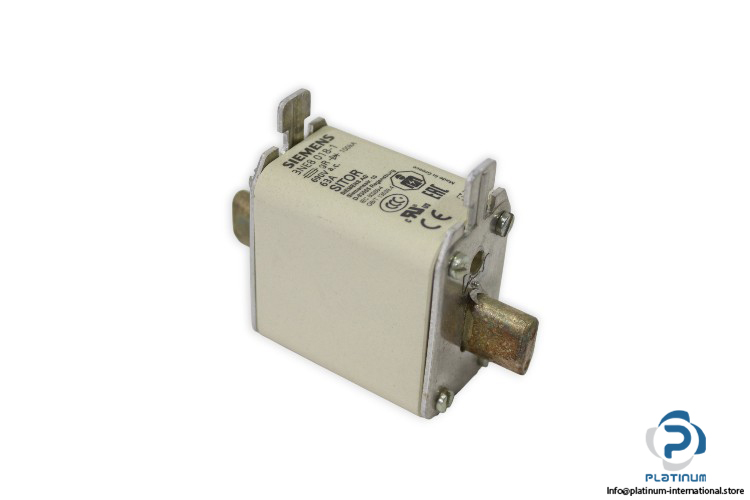

Siemens SITOR Fuse Link 3NE8018-1
The Siemens SITOR Fuse Link from the SENTRON product line is designed for reliable circuit protection in demanding industrial environments. Built with LV HRC design, it ensures safe performance under high current loads and complies with DIN EN 60269-1 standards.
Manufacturer: Siemens
Type: SITOR Fuse Link
Mnr: 3NE8018-1
Product Brand Name: SENTRON
Design of Identification Indicator: Front Indicator
Design of the Fuse Link: SITOR, LV HRC Design
Size of Fuse System: NH00 (DIN EN 60269-1)
Technical Information
- Rated Supply Voltage: 690 V AC
- Rated Current: 63 A
- Operating Class of the Fuse Link: gR
- Circuit-Breaker / Design: 3NE
- Supply Voltage at DC: 440 V
- Switching Capacity Current (IEC 60947-2): 100 Ka
- Power Loss: 16 W (at AC, hot operating state, per pole)
- Ambient Temperature Range: -20 °C to +50 °C
- Dimensions: 60 x 30 x 79 mm (DIN 43620)
