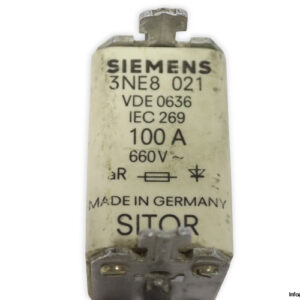

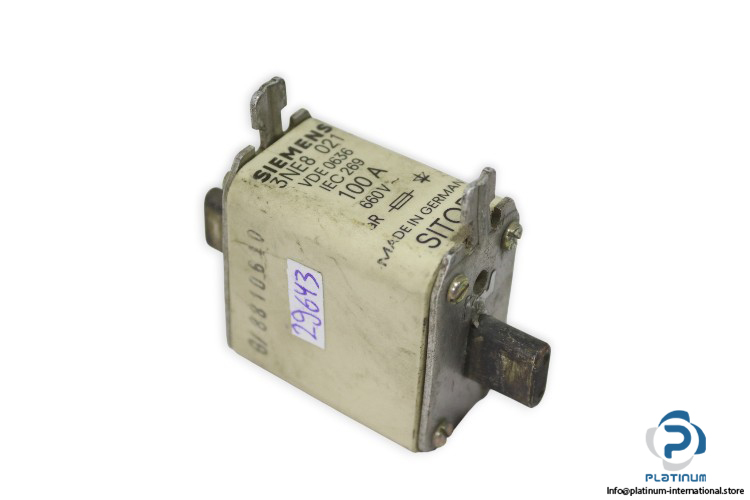

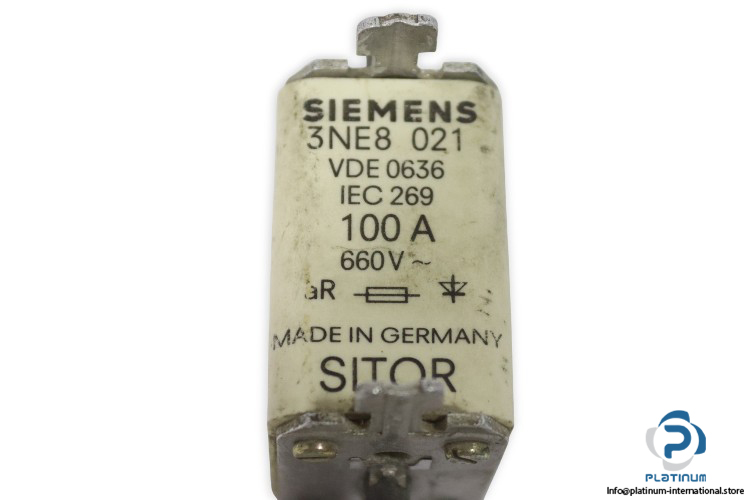

Siemens SENTRON 3NE8021 Fuse-Link

The Siemens SENTRON 3NE8021 is a high-quality fuse-link designed for reliable circuit protection in industrial applications. Built with SITOR LV HRC design, it ensures safe operation under demanding electrical conditions.

Manufacturer: Siemens
Type: Fuse-Link
Brand Name: SENTRON
MRN: 3NE8021

Technical Information

• Identification Indicator: Front Indicator
• Design of Fuse Link: SITOR, LV HRC Design
• Size of Fuse System (DIN EN 60269-1): NH00
• Operating Class: aR
• Circuit-Breaker Design: 3NE
• Operating Voltage: 660 Vac
• Rated Operating Current: 100 A
• Varying Load Factor (WL): 0.95
• Switching Capacity Current (IEC 60947-2): 100 kA
• Active Power Loss (per pole): 22 W
• Temperature Range: -20 / 50 °C
• Standards: IEC 269, VDE 0636
