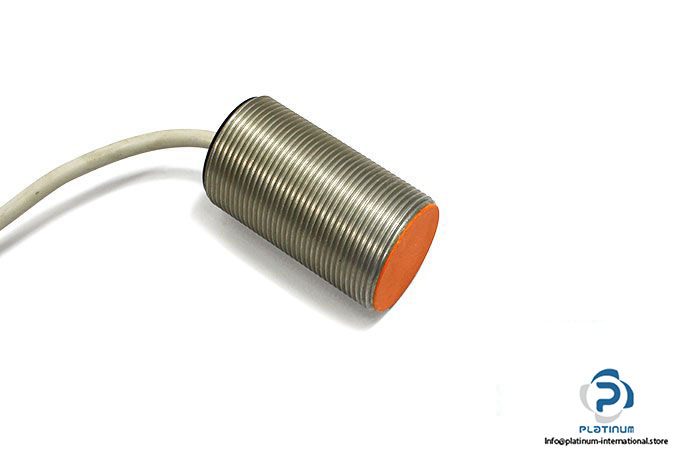

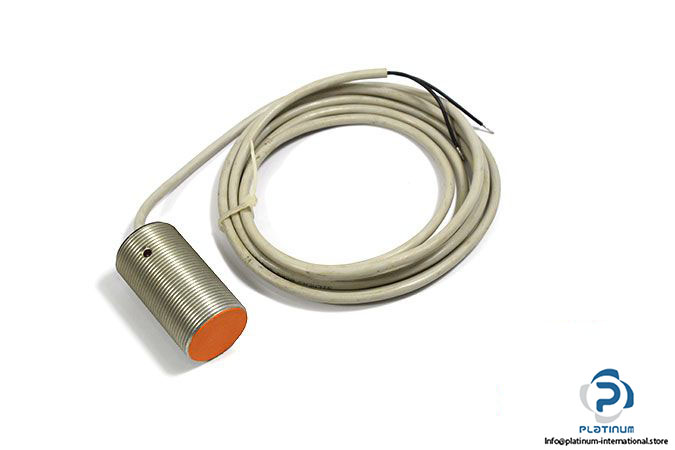

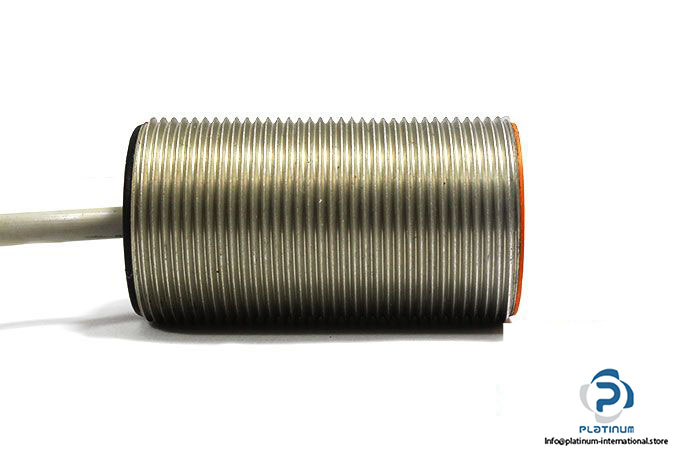

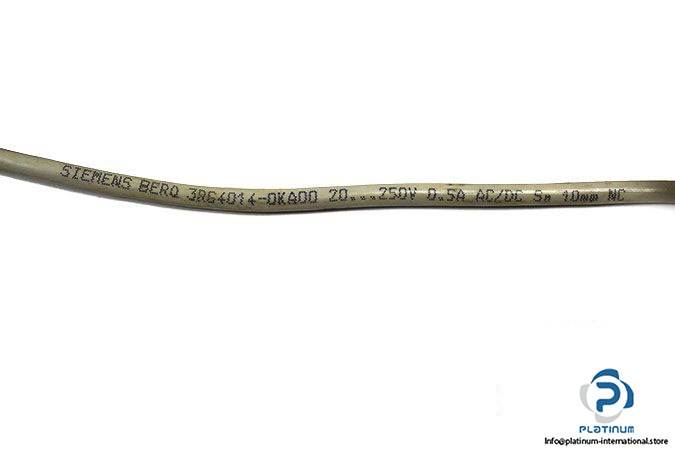

SIEMENS 3RG4014-0KA00 INDUCTIVE SENSOR

The Siemens 3RG4014-0KA00 is a robust inductive sensor designed for reliable object detection in demanding industrial environments. With a 10 mm sensing range and wide voltage compatibility, it ensures accurate performance in both AC and DC applications. The rugged nickel-plated brass housing and IP67 protection allow for dependable use in harsh conditions.

Manufacturer: SIEMENS
Type: Inductive Sensor
MRN: 3RG4014-0KA00
Family: 3RG4

Technical Information

• Sensing Range: 10 mm
• Operating Voltage: 20 / 250 V AC/DC
• Operating Current: 0.5 A
• Switching Output: Normally closed
• Connector Type: Cable, 2 m
• Enclosure Rating: IP67
• Diameter / Housing Length: 30 mm / 54 mm
• Housing Material: Nickel-plated brass
• Mounting: Flush-mountable
