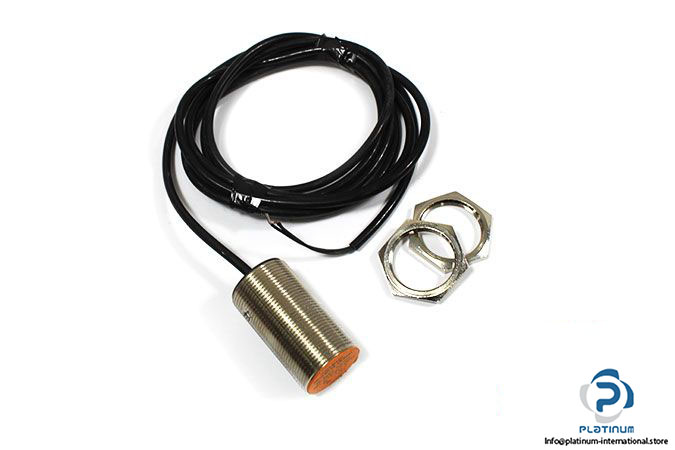

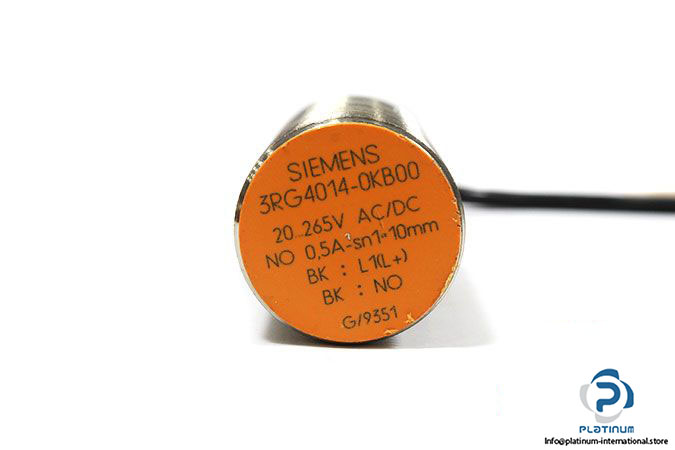

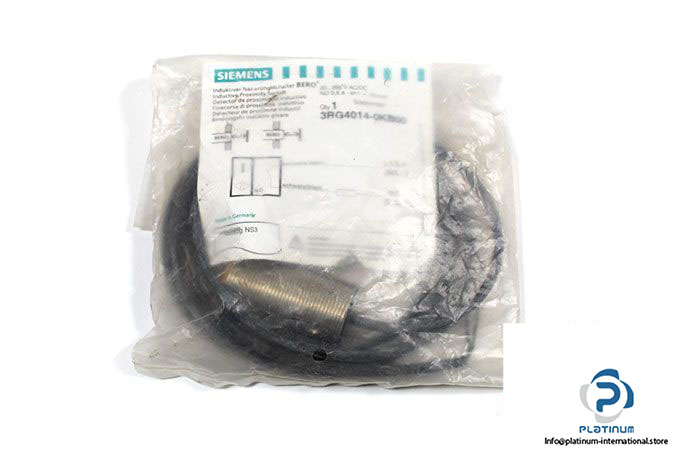

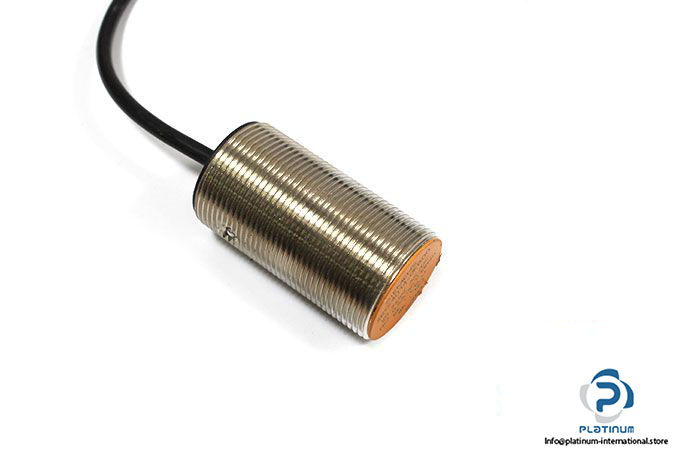

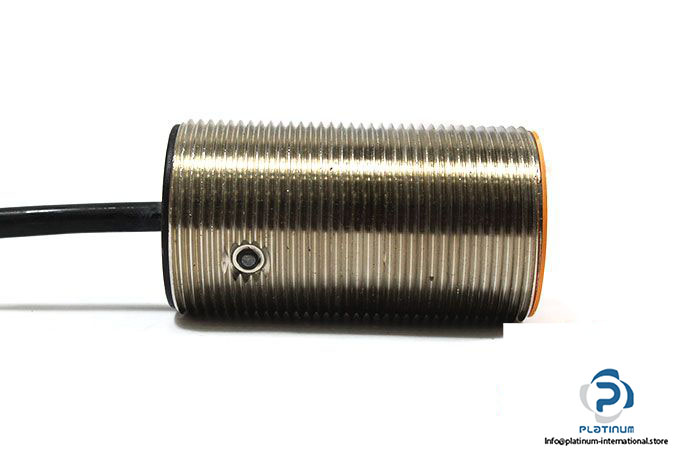

SIEMENS 3RG40 14-0KB00 INDUCTIVE SENSOR
The Siemens 3RG40 14-0KB00 is a robust inductive sensor from the BER0 3RG4 family, engineered for precise and reliable object detection in demanding industrial environments. Featuring a 10 mm sensing range and wide voltage compatibility, it is ideal for automation and monitoring systems requiring durability and accuracy.
Manufacturer: Siemens
Type: Inductive Sensor
MRN: 3RG40 14-0KB00
Family: BER0 3RG4
Ref No.: g/9351
Technical Information
- Sensing Range: 10 mm
- Operating Voltage: 20 / 265 V AC/DC
- Operating Current: 500 mA
- Switching Output: Normally open
- Connector Type: Cable, 2 m
- Enclosure Rating: IP67
- Diameter / Housing Length: 30 mm / 54 mm
- Housing Material: Nickel-plated brass
- Mounting: Flush-mountable
- Supplied Items: 2 lock nuts
