SIEMENS 3RG40 23-0KB00 INDUCTIVE SENSOR

The SIEMENS BERO 3RG4 series inductive sensor is engineered for heavy-duty industrial environments. It offers a reliable sensing range of 8 mm and operates across a wide voltage spectrum of 20 to 265 V AC/DC. With a robust IP67-rated threaded housing and a 2-meter cable connection, this sensor ensures consistent performance and durability in harsh conditions.

Manufacturer: SIEMENS
Type: Sensor
Model (MRN): 3RG40 23-0KB00
Family: BERO 3RG4

Technical Information

• Application: Heavy Duty
• Sensing Range: 8 mm
• Operating Voltage: 20 / 265 V AC/DC
• Switching Output Function: Normally Open
• Connection Type, Length: Cable, 2 m
• Connection Wires: 2 Wires
• Enclosure Rating: IP67

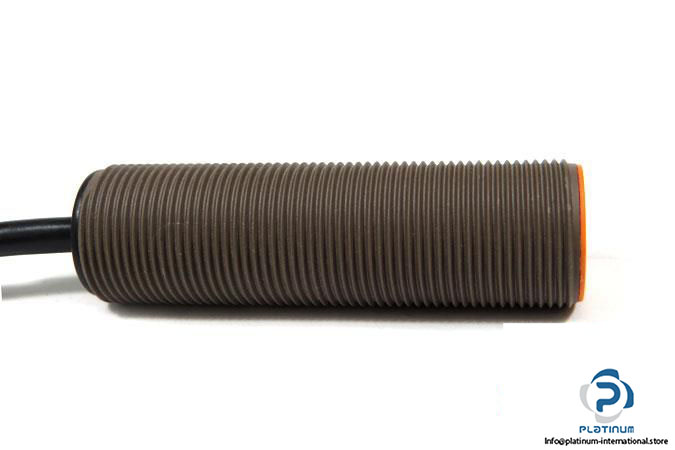

• Housing: Threaded Type
• Diameter, Housing Length: 18 mm, 54 mm
• Mounting: Non-flush Mountable

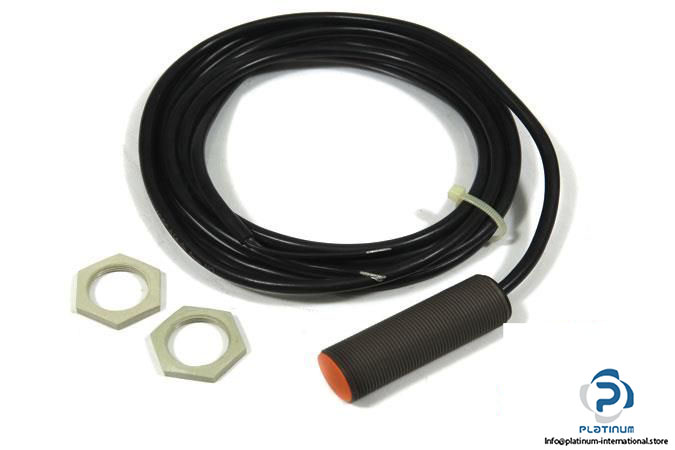

• Supplied Accessories: 2 Lock Nuts
