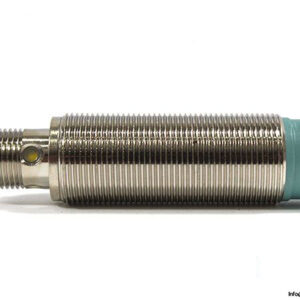

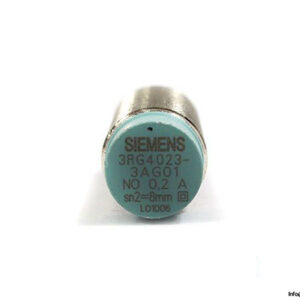

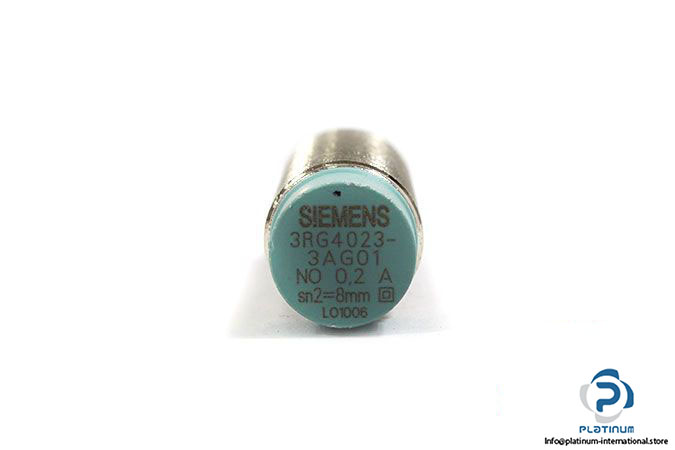

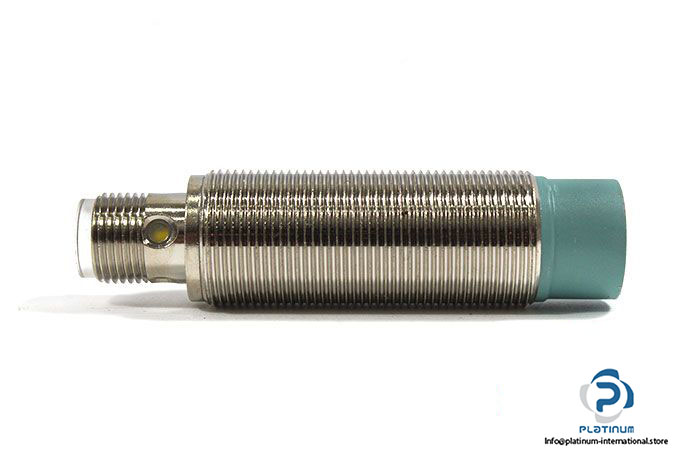

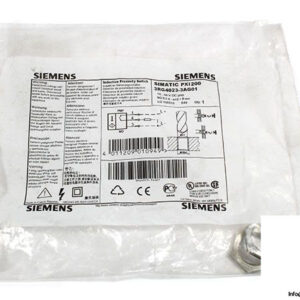

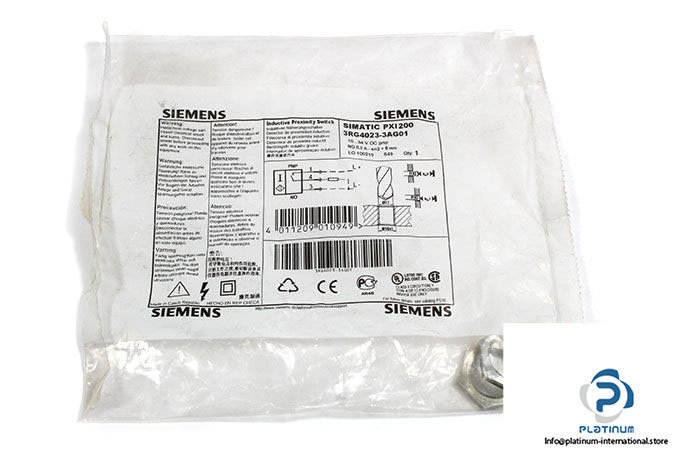

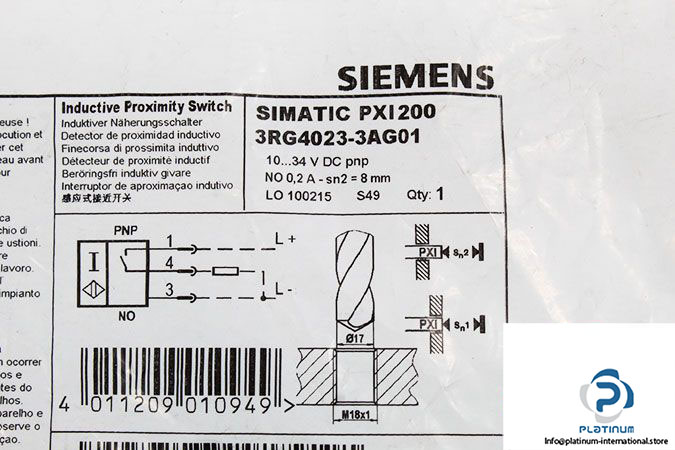

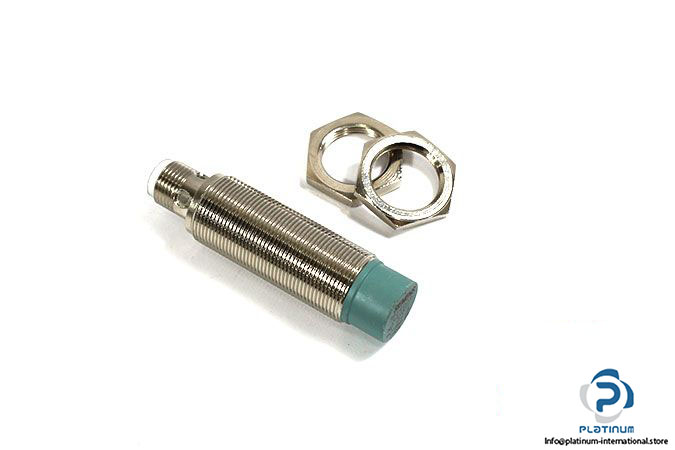

SIEMENS 3RG4023-3AG01 INDUCTIVE SENSOR

The Siemens 3RG4023-3AG01 is a rugged and reliable inductive sensor built for precision object detection in demanding industrial environments. As part of the 3RG4 family, this sensor offers stable switching performance and robust mechanical protection, making it suitable for automation, machinery, and control systems.

Manufacturer: SIEMENS
Type: Inductive Sensor
MRN: 3RG4023-3AG01
Part No.: LO 100215 S49
Family: 3RG4

Technical Information

• Sensing Range: 8 mm
• Operating Voltage: 10 / 34 V DC
• Operating Current: 200 mA

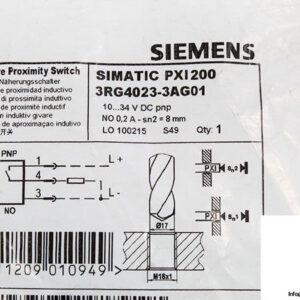

• Electrical Design: PNP
• Switching Output: Normally open

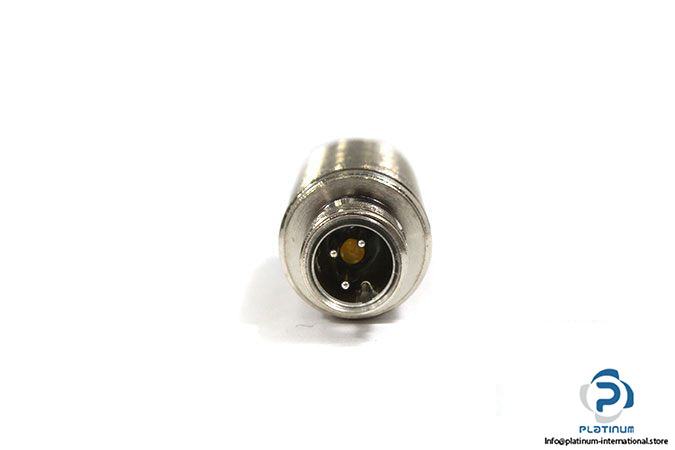

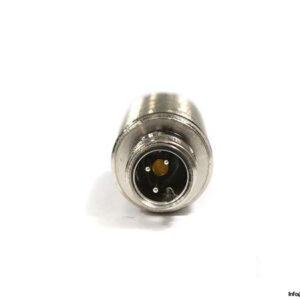

• Connector Type: M12 Connector, 3-pin
• Enclosure Rating: IP67
• Diameter / Housing Length: 18 mm / 70 mm
• Housing Material: Nickel-plated brass
• Mounting: Non-flush mountable
