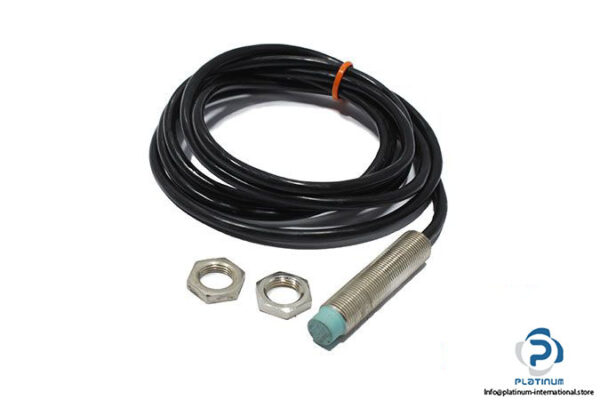

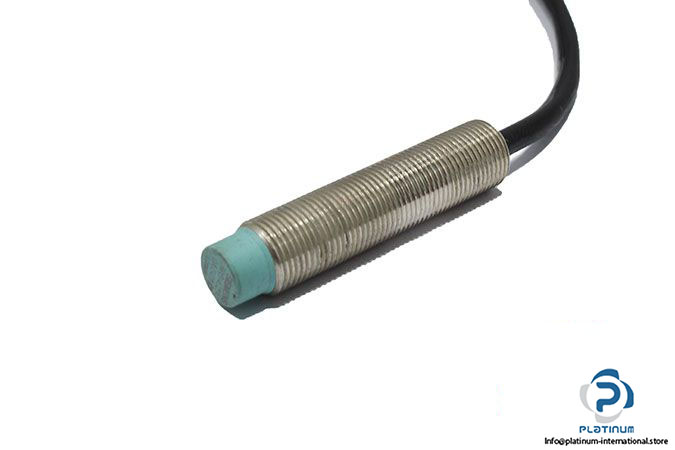

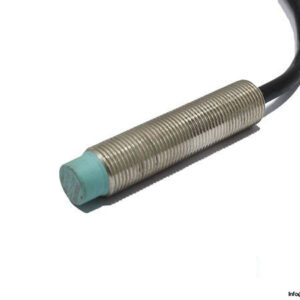

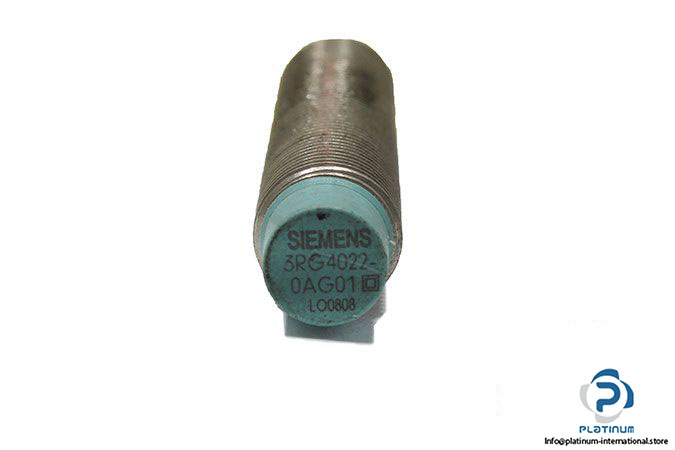

SIEMENS Inductive Sensor 3RG4022-0AG01
SIEMENS Inductive Sensor 3RG4022-0AG01 is a high-quality inductive sensor designed for industrial applications. It offers reliable performance, high protection, and efficient sensing capabilities, suitable for various operational environments.
- Manufacturer: SIEMENS
- Type: Inductive Sensor
- MNR: 3RG4022-0AG01
Technical Data:
- Output Configuration: PNP / NO
- Sensing Range: 0 to 4 mm
- Supply Voltage: 15 to 34 VDC
- Switch Housing: M12
- Connection: Lead 2m
- Protection Class: IP67
- Max. Operating Current: 200 mA
- Operating Temperature: -25 to 85°C
- Kind of Forehead: Non-embedded
- Switching Frequency: Max. 800Hz
- Body Material: Brass
- Overall Length: 56 mm
- Body Plating: Nickel
- Cable Length: 2 m
- Ambient Temperature: -25 to +85 °C
