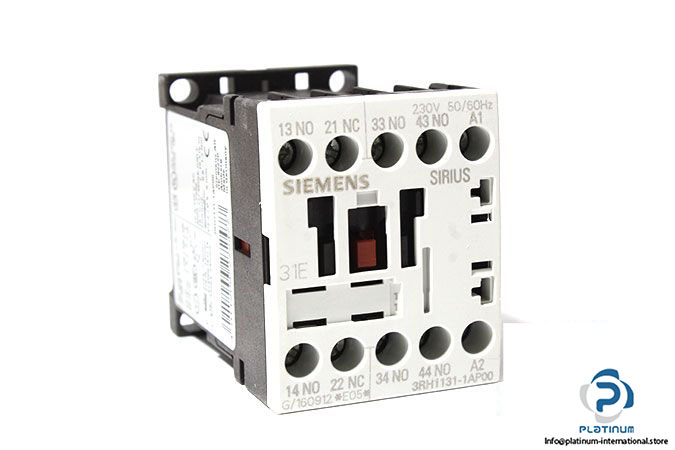

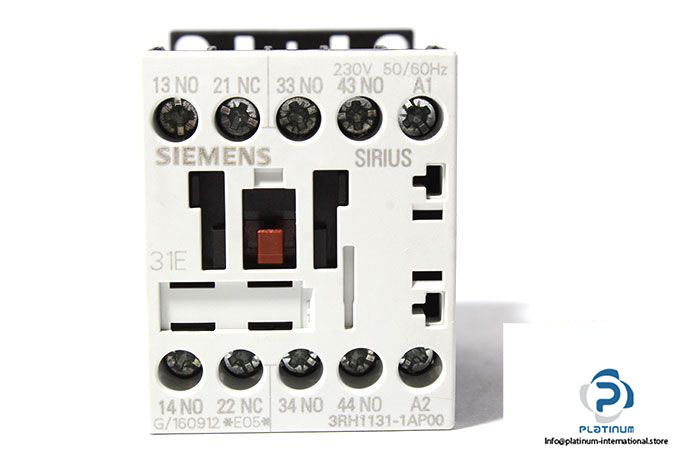

Manufacturer: Siemens

Type: Contactor Relay

Brand Name: Sirius

Model: 3RH1131-1AP00

Successor Type: 3RH2131-1AP00

Designation: Auxiliary Contactor

Size: S00

Identification Number: 31E

Control Supply Voltage: 230 V AC

Control Supply Voltage Frequency: 50 … 60 Hz

Rated Operating Current:

6 A (230 V AC)

3 A (400 V AC)

Auxiliary Contacts:

3 Normally Open

1 Normally Closed

(3NO and 1NC)

Rated Insulation Voltage: 690 V AC

Rated Surge Voltage: 6 kV

Standard: IEC /EN 60947-5-1

Protection Class IP: IP20

Operation Ambient Temperature: -25 … 60 °C

Dimensions (W x D x H): 45 x 72 x 57.5 mm

Weight: 0.2 kg
