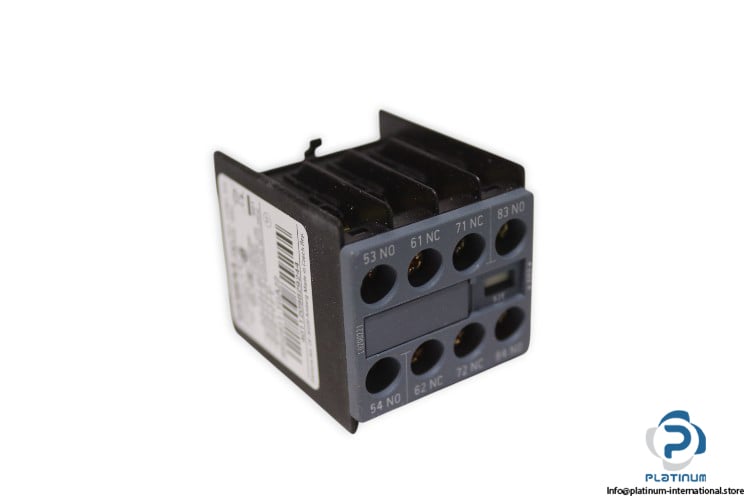

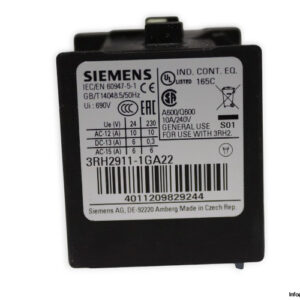

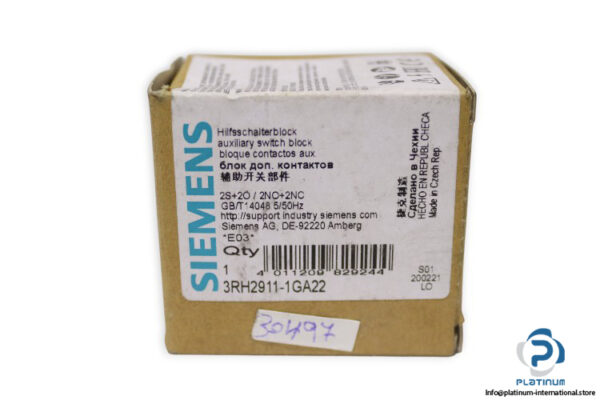

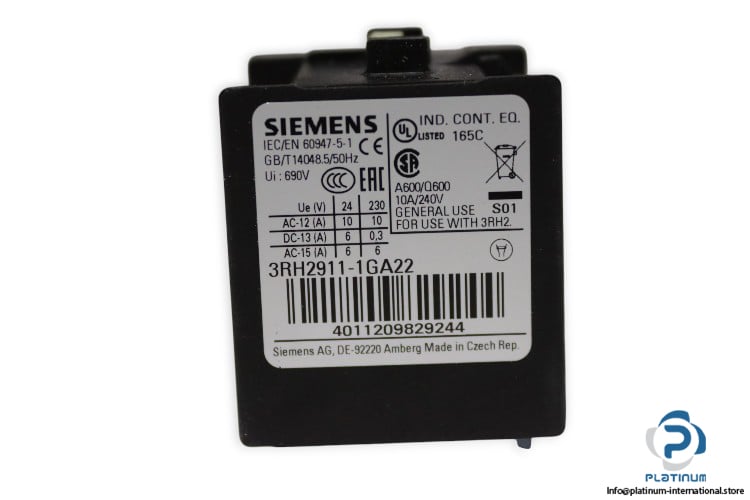

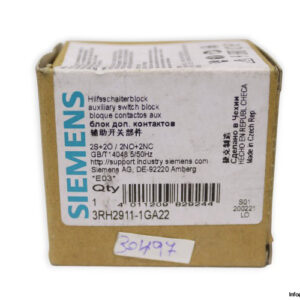

Siemens 3RH29111GA22 Auxiliary Switch Block
The Siemens SIRIUS 3RH29111GA22 auxiliary switch block is designed for reliable integration with 3RH2 contactors. Built for durability and precision, it ensures safe switching performance in industrial environments.
Manufacturer: Siemens
Type: Auxiliary Switch Block
MRN: 3RH29111GA22
SN: 4011209829244
REF NO.: GB/T14048 5/50HZ
Brand Name: SIRIUS
Technical Information
- Mounting: For use with 3RH2 contactors
- Insulation Voltage: 690 V (Pollution Degree 3)
- Surge Voltage Resistance: 6 kV
- Auxiliary Contacts: 2 NO + 2 NC
- Operational Current at AC-12: 10 A at 24 V / 10 A at 230 V
- Electrical Connection: Screw-Type Terminals
- Protection Class: IP20
- Temperature Range: -25 / 60 °C
- Dimensions: 37.5 x 36 x 43.7 mm
