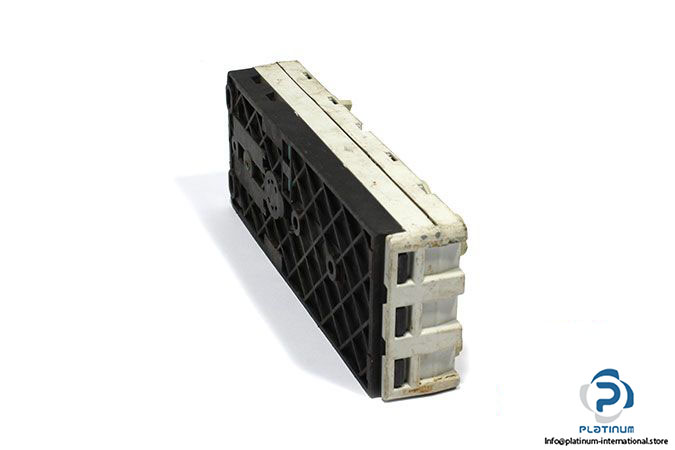

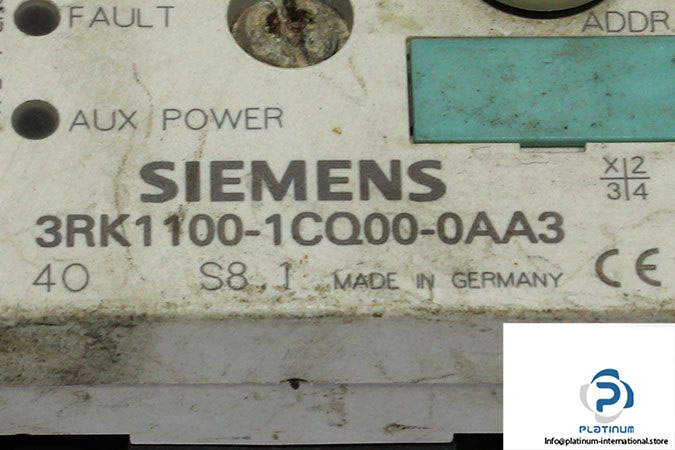

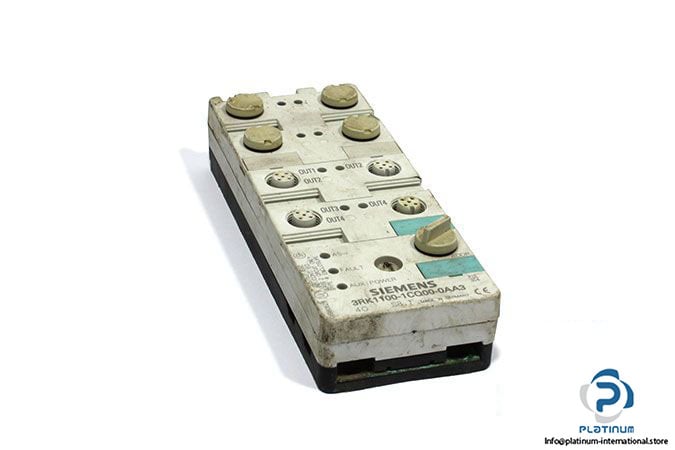

SIEMENS 3RK1 100-1CQ00-0AA3 COMPACT MODULE
The Siemens 3RK1 100-1CQ00-0AA3 is a robust and compact I/O module designed for seamless integration into decentralized automation systems. With high reliability and flexible M12 screw-type terminals, this unit is ideal for field-level signal collection and output control.
Manufacturer: SIEMENS
Type: Compact Module
Model: 3RK1 100-1CQ00-0AA3
Technical Information
- Input Voltage: 20 / 30 V.dc
- Operating Voltage: 26.5 / 31.6 V
- Max Input Current: 270 mA
- Input Circuit: PNP Transistor
- Number of I/O Sockets: 4
- Digital Outputs: 4
- Electrical Connection Type: M12 Screw-Type Terminals
- Dimensions (W x D x H): 60 x 29 x 152 mm
