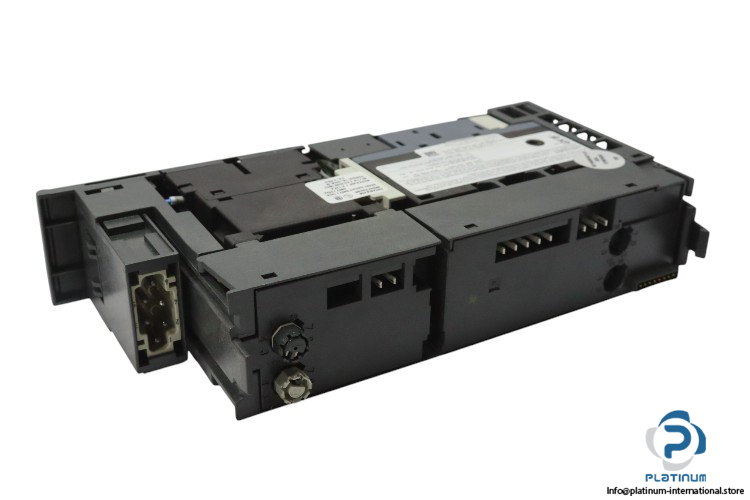

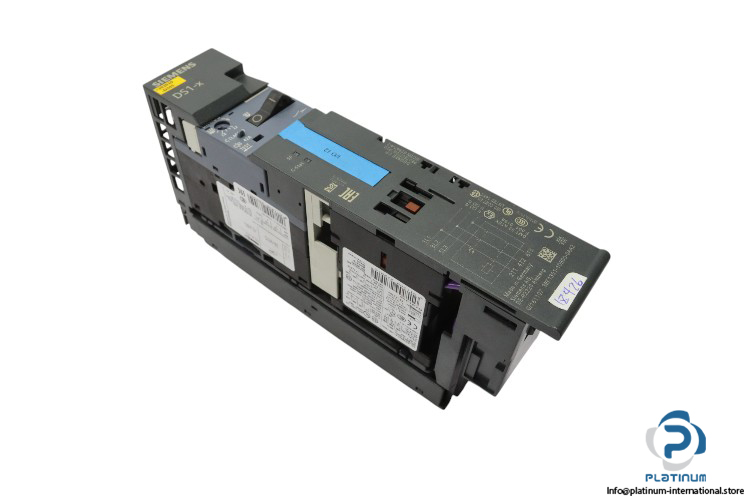

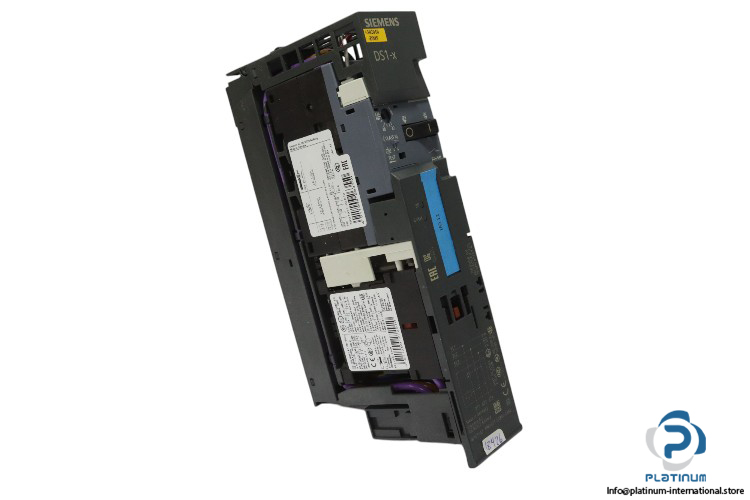

SIEMENS 3RK1301-1DB00-0AA2 Direct Starter with 3RV1011-1DA10 Circuit Breaker
The SIEMENS 3RK1301-1DB00-0AA2 is a high-performance direct starter designed for reliable motor control and protection. Paired with the SIEMENS 3RV1011-1DA10 circuit breaker, this unit ensures safety and operational efficiency in industrial electrical systems.
- Manufacturer: SIEMENS
- Type: Direct Starter

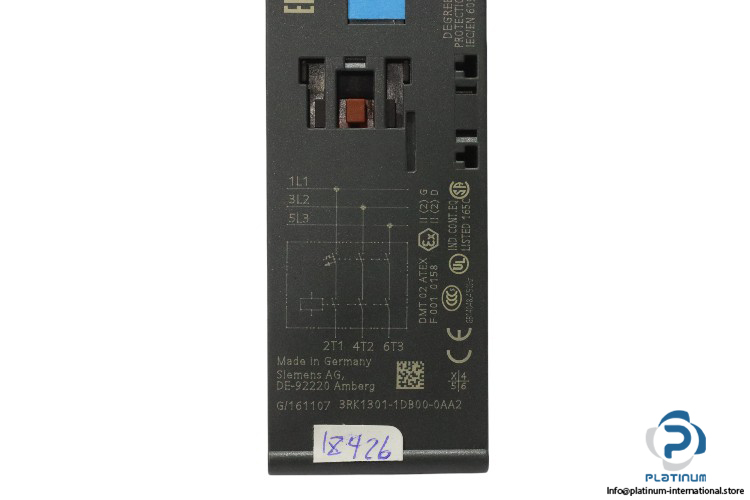

- Model: 3RK1301-1DB00-0AA2
- Part No.: G/161107
Technical Information:

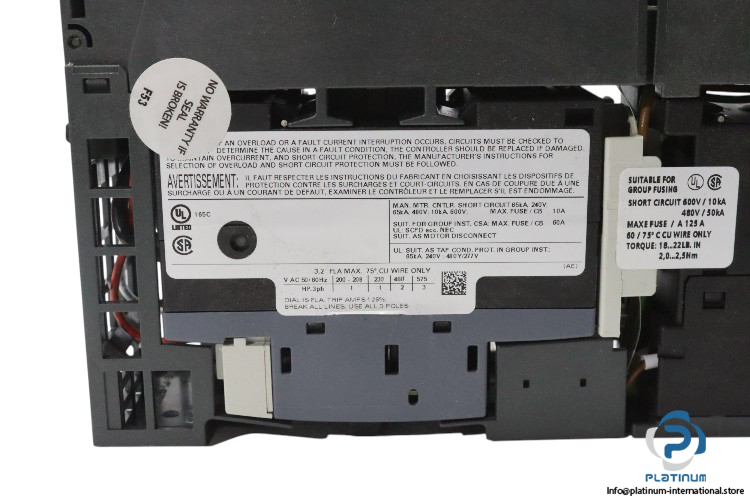

- Short Circuit Rating: 600 V max. / 10 kA, 480 V max. / 50 kA
- Max Fuse: 125 A
- Torque: 2 / 2.5 Nm

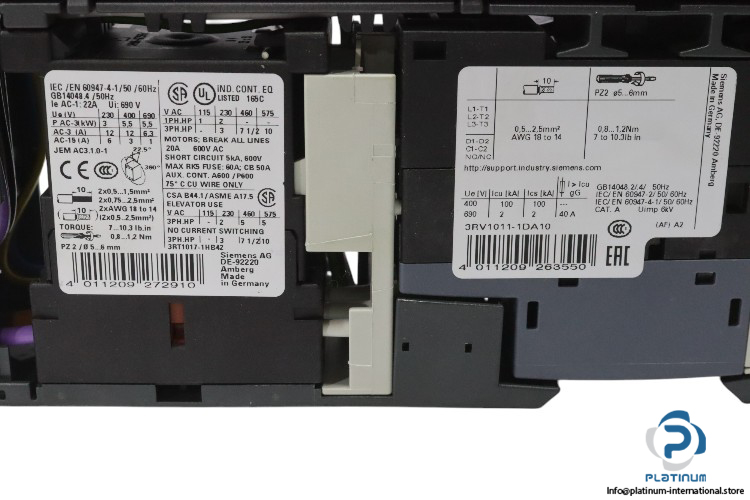

Attachment: SIEMENS 3RV1011-1DA10 Circuit Breaker
- Manufacturer: SIEMENS
- Type: Circuit Breaker
- Model: 3RV1011-1DA10
- Size: S00
- Used For: Motor Protection
- Operating Voltage: 690 V AC/DC

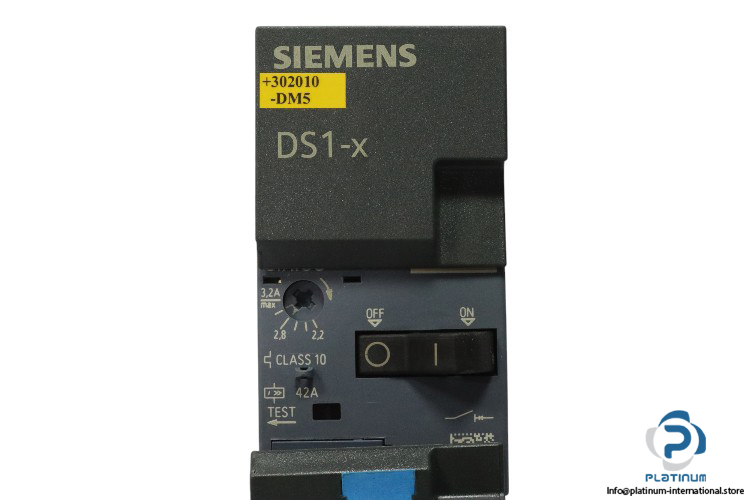

- Adjustable Response Current: 2.2 / 3.2 A
- Breaking Capacity (Icu) @400 V: 100 kA
- Service Power Rated Value: 1.1 kW
- Power Loss: 7.25 W
- Operating Current Rated Value: 3.2 A
- Instantaneous Short-Circuit Trip Unit: 42 A
- Impulse Voltage Resistance: 6000 V
- Number of Poles: 3
- Mounting Type: Screw and snap-on mounting onto 35 mm DIN rail (EN 50022)
- Protection Degree: IP20
- Electrical Connection: Screw-type terminals
- Ambient Temperature: -20 / 70°C
- Dimensions: 81 x 90 x 45 mm
