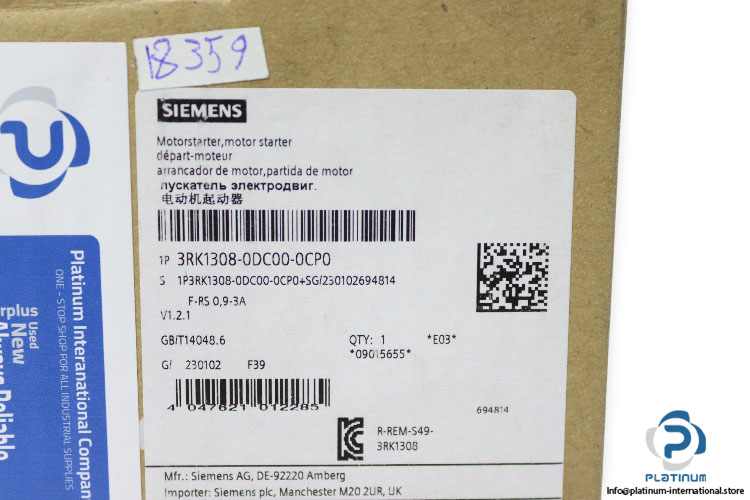

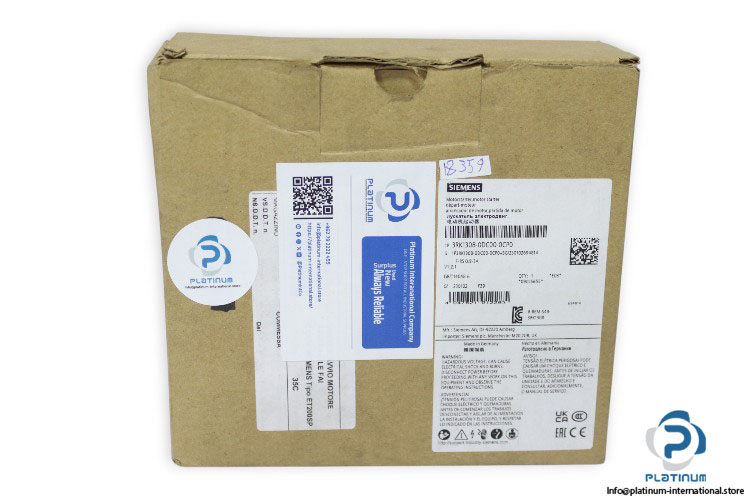

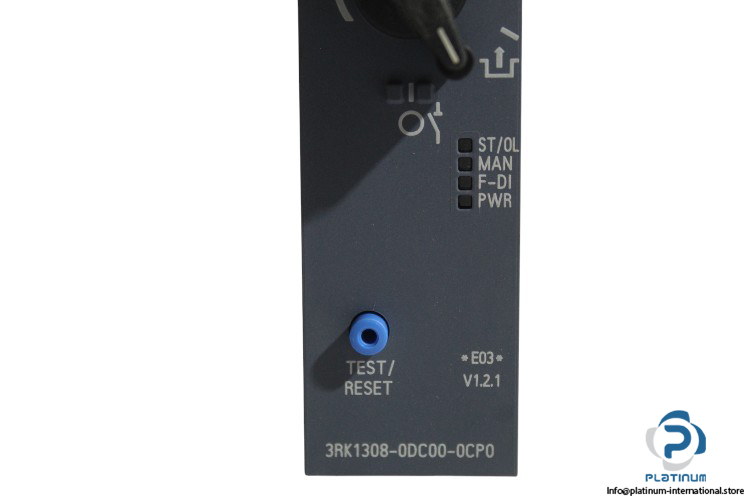

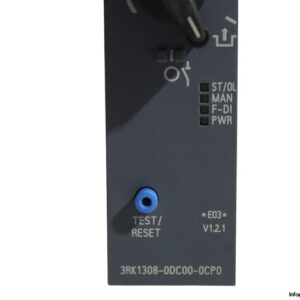

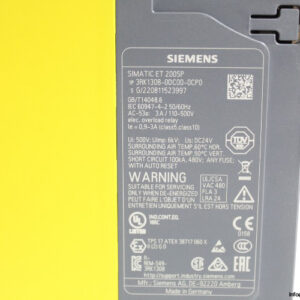

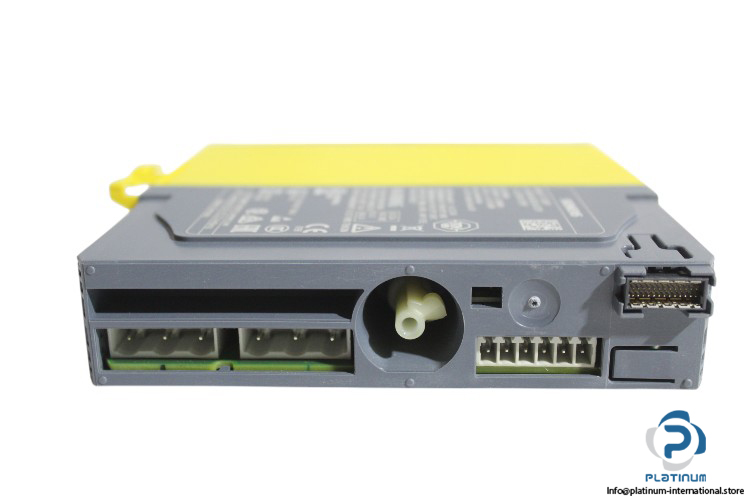

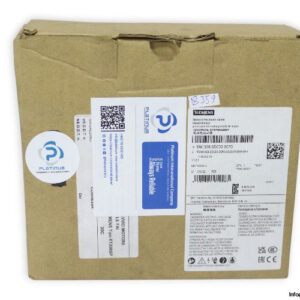

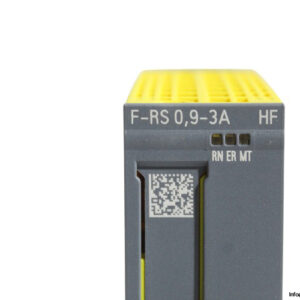

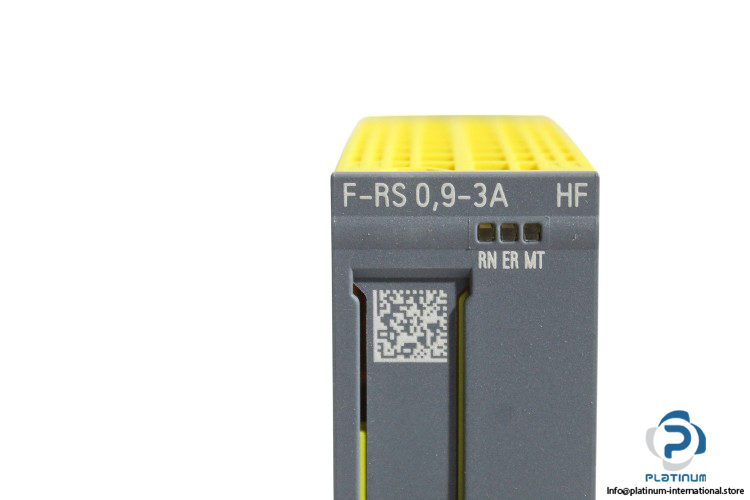

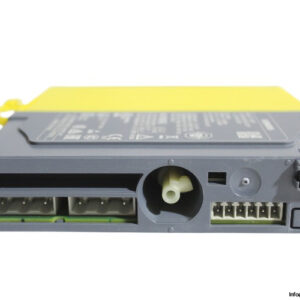

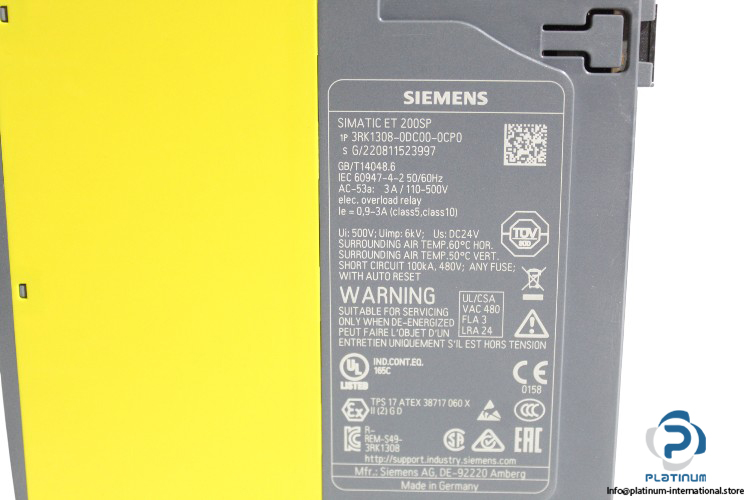

Siemens 3RK1308-0DC00-0CP0 Reversing Starter
The Siemens 3RK1308-0DC00-0CP0 Reversing Starter is designed for efficient motor control in industrial applications. Part of the SIMATIC range, it offers high reliability with protection against overcurrent, short-circuit, and other electrical faults. It is engineered according to IEC 60947-4-2 3 standards, ensuring robust performance and safety in demanding environments.
Manufacturer: Siemens
Type: Reversing Starter
MRN: 3RK1308-0DC00-0CP0
REF No.: N428909002149
Technical Data:
- Product Brand Name: SIMATIC
- Equipment Version According to: IEC 60947-4-2 3
- Power Loss (W) for Rated Current (at AC in Hot Operating State per Pole): 0.2 W
- Insulation Voltage Rated Value: 500 V
- Degree of Pollution: 2
- Overvoltage Category: III
- Surge Voltage Resistance Rated Value: 6 kV
- Maximum Permissible Voltage for Protective Separation (Main and Auxiliary Circuit): 500 V
- Consumed Current Maximum: 140 mA
- Shock Resistance: 6g / 11 ms
- Maximum Short-Circuit Current Breaking Capacity (Icu):
- At 400 V Rated Value: 55 kA
- At 500 V Rated Value: 55 kA
- At 500 V (UL 60947 Rated Value): 100 kA
- Maximum Short-Circuit Current Breaking Capacity (Icu) in IT Network:
- At 400 V Rated Value: 55 kA
- At 500 V Rated Value: 55 kA
- Protection Class IP on Front (IEC 60529): IP20
- Operating Temperature: -25°C to +60°C
- Number of Poles for Main Current Circuit: 3
