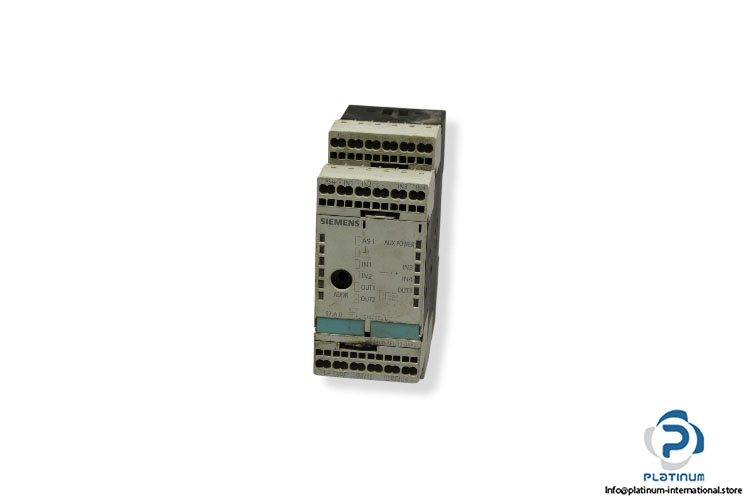

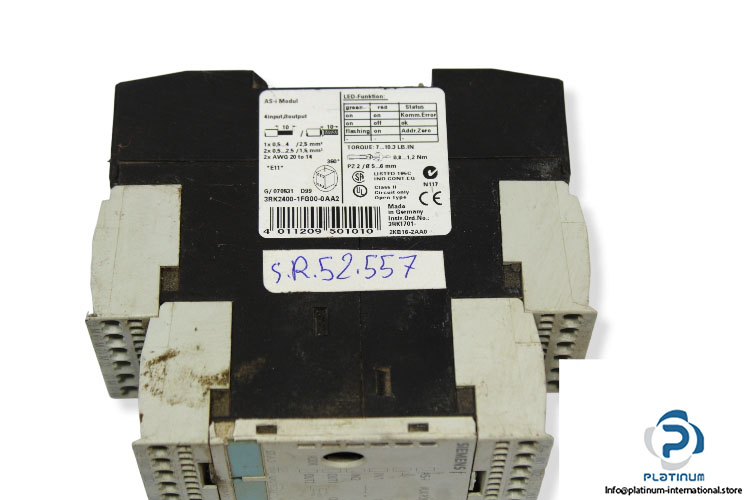

SIEMENS 3RK2400-1FG00-0AA2 “ AS-I SLIMLINE I/O MODULE
The Siemens 3RK2400-1FG00-0AA2 is a high-performance AS-Interface Slimline I/O module engineered for cabinet integration. Designed for demanding industrial applications, it supports reliable digital signal processing with efficient power handling and robust operation across wide temperature ranges.
Manufacturer: Siemens
Type: AS-I Slimline “ I/O Modules for Operation In The Control Cabinet
Model: 3RK2400-1FG00-0AA2
Reference No.: 4011209 501010
Technical Information
- Input Voltage: 20 / 30 V DC
- Input Current at Digital Input:
– For Signal <1> Minimum: 5 mA
– With Signal <0> Maximum: 1.5 mA - Output Voltage: 22 / 24 V DC
- Output Current: 4 A
- Type of Switching Output: Solid State
- Number of Inputs/Outputs: 4 Digital Inputs / 3 Digital Outputs
- Input Circuit: PNP
- Connection Technology: 2- and 3-wire technology
- Operating Temperature: -25 / +70 °C
- Protection Class: IP20
