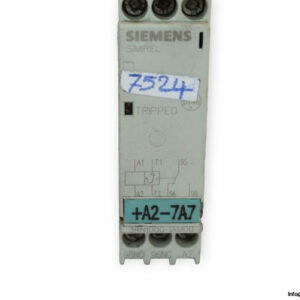

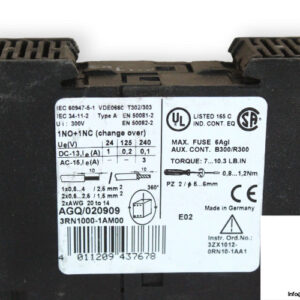

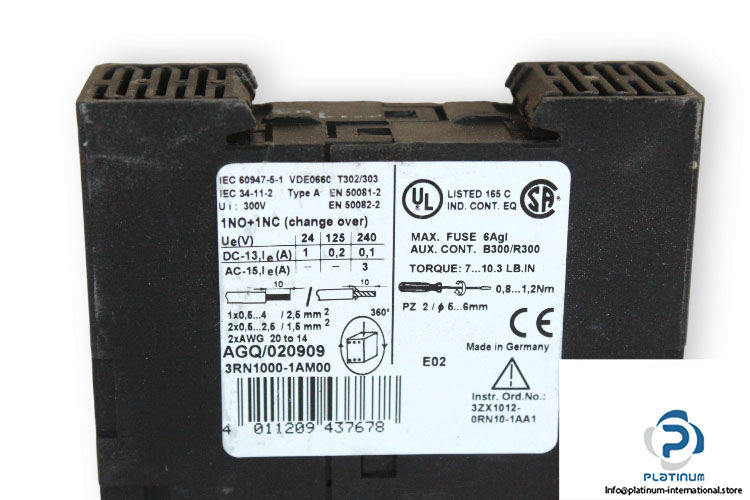

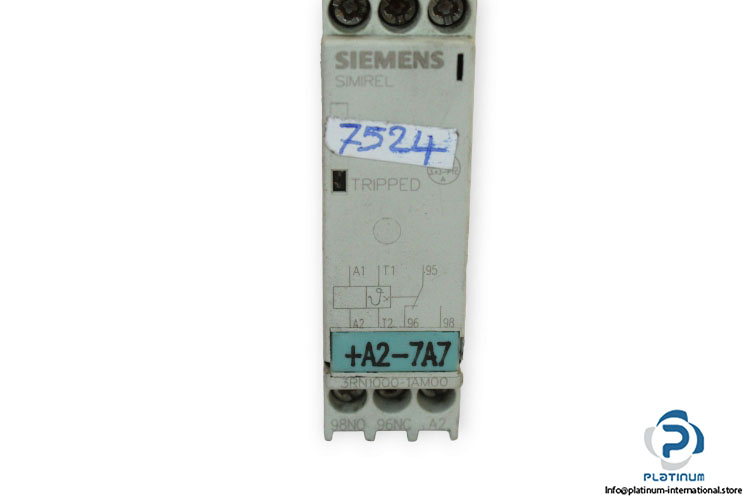

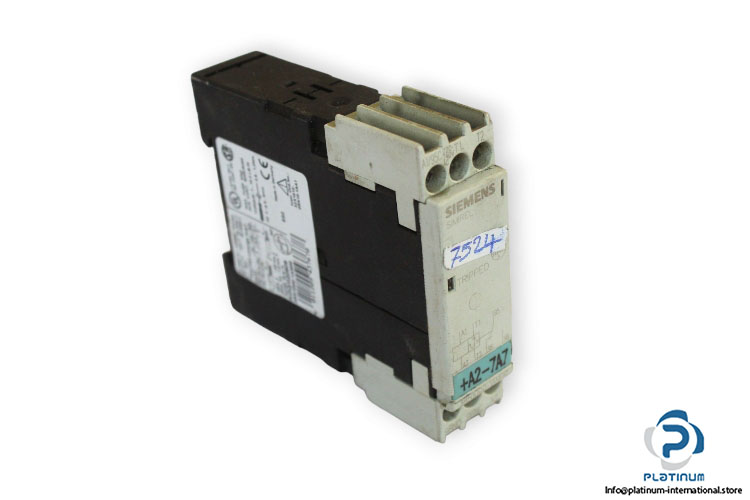

SIEMENS 3RN1 000-1AM00 THERMISTOR MOTOR PROTECTION RELAY

The Siemens 3RN1 000-1AM00 is a reliable thermistor motor protection device designed to safeguard electric motors from overheating. Built for industrial environments, it ensures operational safety with robust performance and explosion protection standards.

Manufacturer: Siemens
Type: Thermistor Motor Protection
Model: 3RN1 000-1AM00
Ref No.: AGQ/020909 / 4 011209 437678

Technical Information

• Supply Voltage: 220 / 240 V AC
• Frequency: 50 / 60 Hz
• Contact: 1 Changeover Contact (SPDT)
• Contacts Voltage:
  • DC-13: 24V/1A, 125V/0.2A, 240V/0.1A
  • AC-15: 240V/3A
• Electrical Connection: Screw-Type Terminals
• Fastening Method: Screw and Snap-On Mounting
• Protection Class: IP20
• Type of Protection: Explosion Protection EX
• Operating Temperature: -25 / +60 °C
