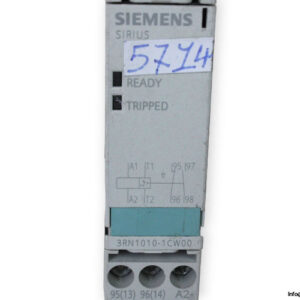

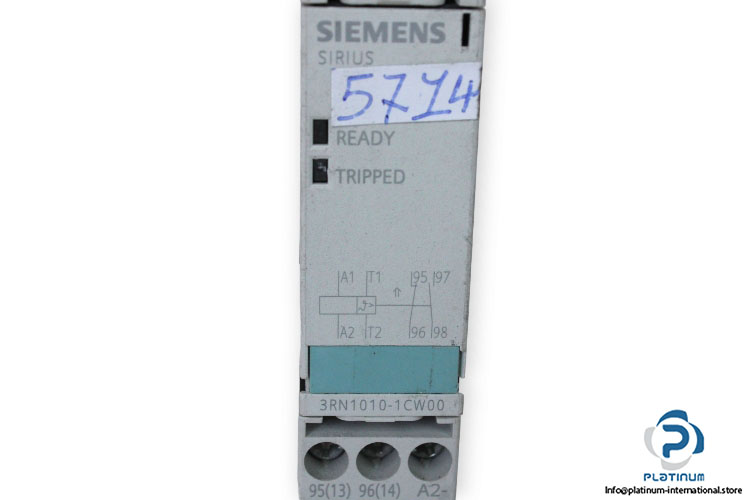

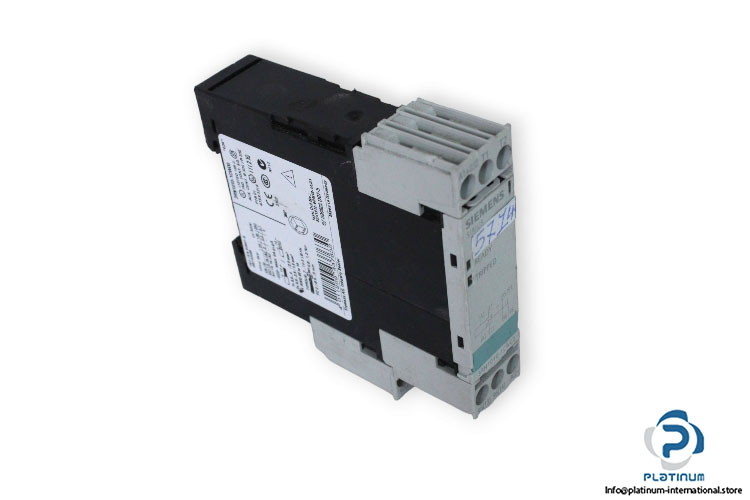

SIEMENS SIRIUS 3RN10 10-1CW00 THERMISTOR MOTOR PROTECTION RELAY
The Siemens SIRIUS 3RN10 10-1CW00 is a high-quality thermistor motor protection relay designed to safeguard motors against overheating. With a wide supply voltage range, robust insulation properties, and versatile mounting options, it is suitable for demanding industrial environments where reliable motor protection is essential.
Manufacturer: Siemens
Type: Thermistor Motor Protection Relay
MNR: 3RN10 10-1CW00
Family: SIRIUS
Technical Information
- Supply Voltage: 24 / 240 V AC/DC
- Frequency: 50/60 Hz

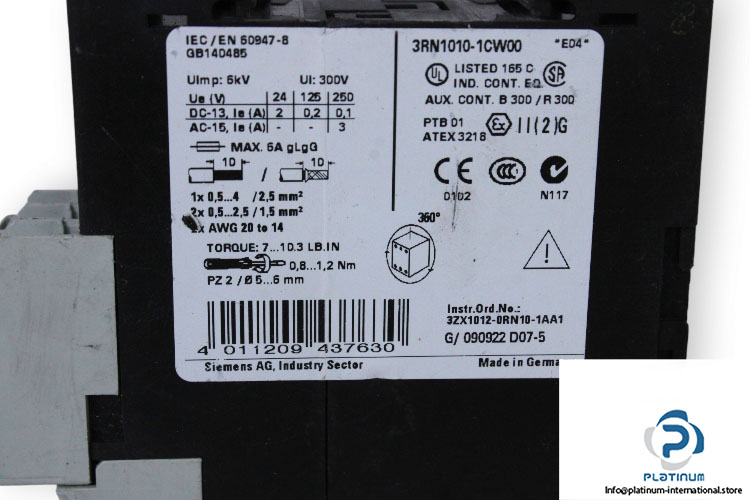

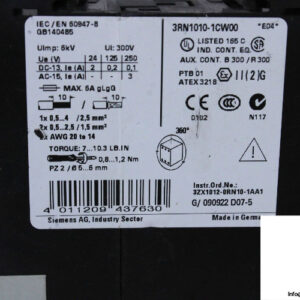

- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Insulation Voltage (Ui): 300 V
- No. of NC Contacts (Auxiliary): 1
- No. of NO Contacts (Auxiliary): 1
- Contact Ratings: DC “ 13: 24V/2A, 125V/0.2A, 250V/0.1A | AC “ 15: 250V/3A
- Ambient Operating Temperature: -25 / 60°C
- Degree of Protection: IP20
- Connection Technology: Screw-type terminals
- Fastening Method: Screw and Snap-On mounting
- Dimensions: 22.5 x 102 x 91 mm
