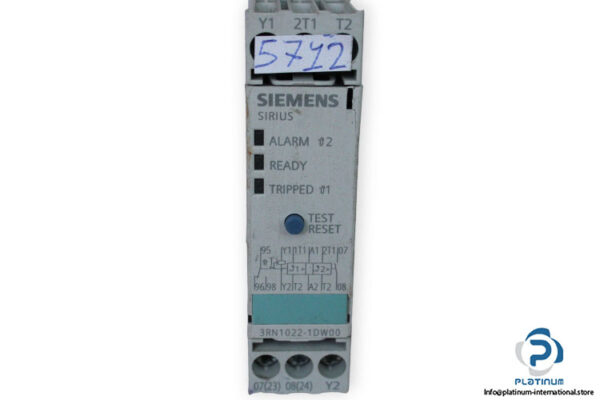

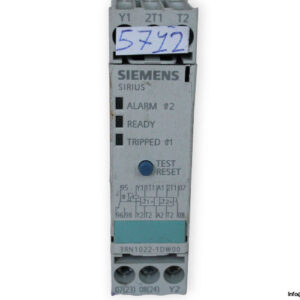

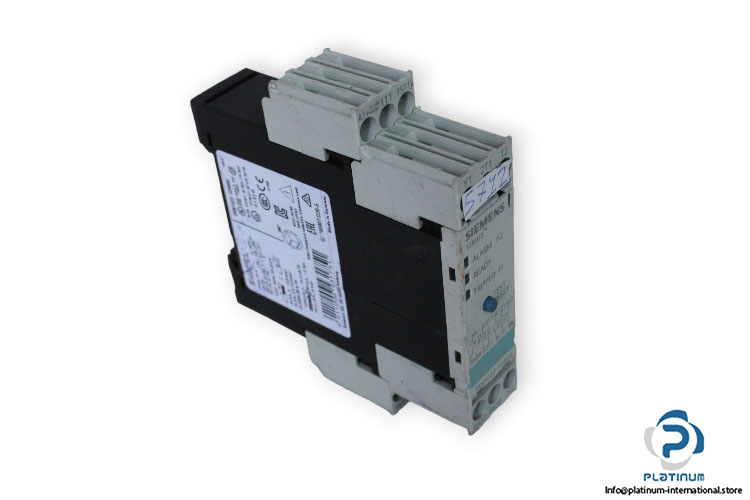

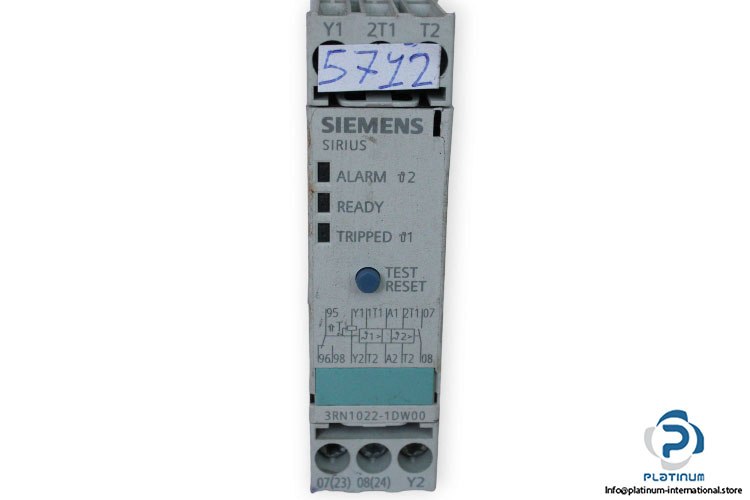

SIEMENS 3RN10 22-1DW00 SIRIUS THERMISTOR MOTOR PROTECTION RELAY

The Siemens 3RN10 22-1DW00 from the SIRIUS series is a reliable thermistor motor protection relay designed to safeguard motors against overheating. Suitable for a wide voltage range and offering robust performance, it is ideal for demanding industrial environments requiring accurate temperature monitoring and fast response.

Manufacturer: Siemens
Type: Thermistor Motor Protection Relay
MNR: 3RN10 22-1DW00
Family: SIRIUS

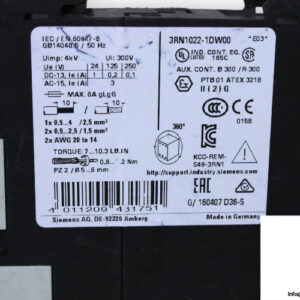

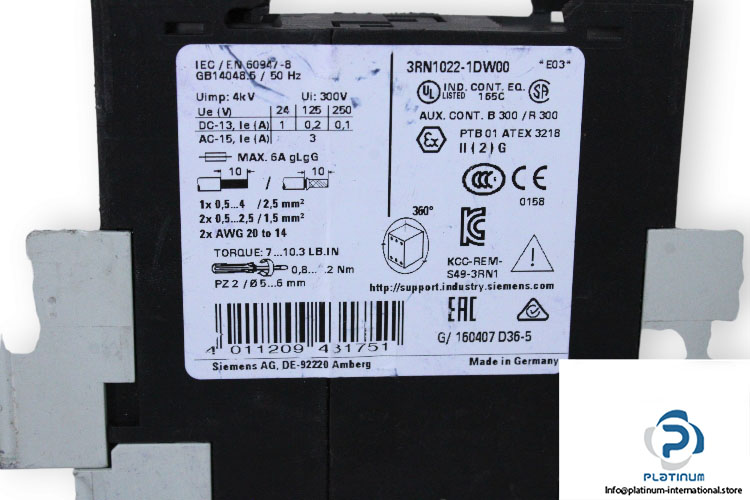

Technical Information

• Supply Voltage: 24 / 240 V AC/DC
• Frequency: 50/60 Hz
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Insulation Voltage (Ui): 300 V
• Auxiliary Contacts: 1 CO contact, 1 NO contact
• Contact Ratings:
  • DC “ 13: 24V/1A, 125V/0.2A, 250V/0.1A
  • AC “ 15: 24V, 125V, 250V/3A
• Ambient Operating Temperature: -25 / 60°C
• Degree of Protection: IP20
• Explosion Proof: EX
• Connection Technology: Screw-type terminals
• Fastening Method: Screw and Snap-On mounting
• Dimensions (W x H x D): 22.5 x 102 x 91 mm
