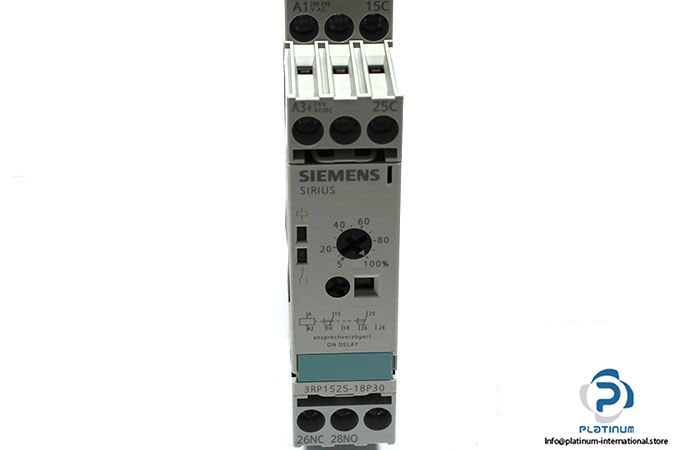

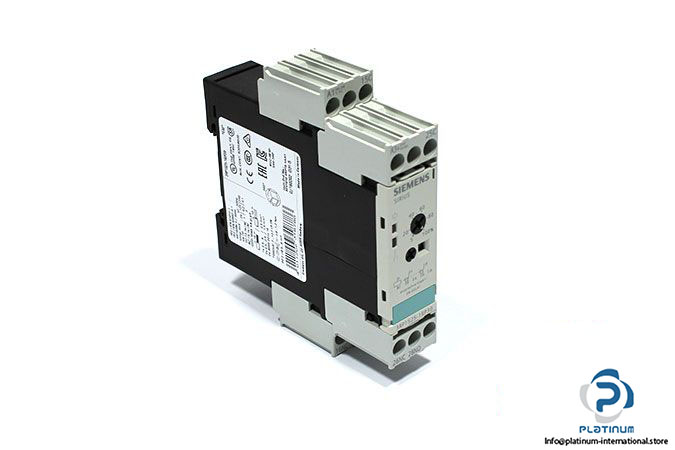

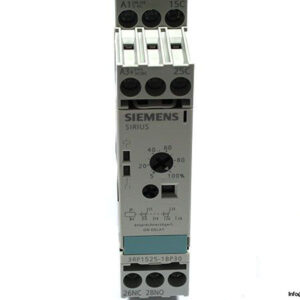

SIEMENS SIRIUS 3RP1525-1BP30 TIMING RELAY

The Siemens Sirius 3RP1525-1BP30 is a high-quality timing relay designed to deliver reliable time-delay functions in industrial automation and control systems. With adjustable time settings and versatile voltage compatibility, this unit ensures precision and adaptability across a wide range of applications.

Manufacturer: Siemens
Type: Timing Relay
Brand: Sirius
Model: 3RP1525-1BP30
Successor: 3RP2525-1BW30
INST ORD NO: 3ZX1012-0RP15-1AA1
REF NO: 03057754

Technical Information

• Insulation Voltage: 300 V
• Control Supply Voltage (AC/DC): 2 change-over contacts
• 1 at AC (50/60 Hz): 24 V
• 2 at AC (50/60 Hz): 200 / 240 V
• DC Rated Voltage: 24 V
• Adjustable Time: 0.05 / 100 s
• Thermal Current: 5 A
• Operational Current Of Auxiliary Contacts At AC-15 (24/250 V): 3 A
• Operational Current Of Auxiliary Contacts At DC-13:
    – at 24 V: 1 A
    – at 125 V: 0.2 A
    – at 250 V: 0.1 A
• Control Supply Voltage Frequency: 50 / 60 Hz
• Outputs Contact: NC+NO
• Tightening Torque: 0.8 / 1.2 Nm
• Electrical Connection: Screw-Type Terminals
• Ambient Operating Temperature: -25 / +60 °C
• Protection Class: IP20
• Dimensions (W x H x D): 22.5 x 102 x 91 mm
