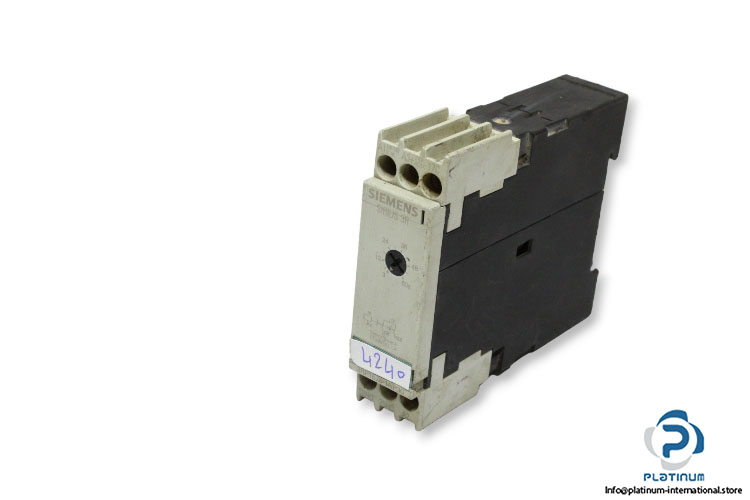

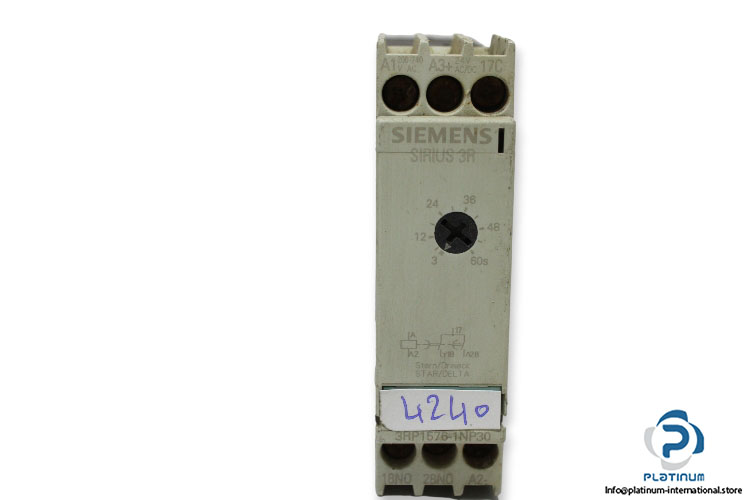

SIEMENS 3RP15 76-1NP30 TIMING RELAY

The Siemens 3RP15 76-1NP30 is a versatile timing relay designed for precise control in industrial automation systems. With multiple control supply voltage options, high reliability, and robust build quality, it ensures accurate timing functions in demanding environments.

Manufacturer: Siemens
Type: Timing Relay
Model: 3RP15 76-1NP30

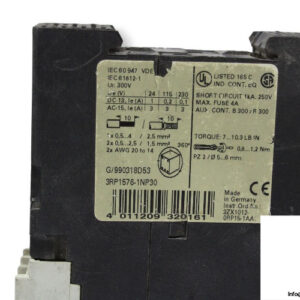

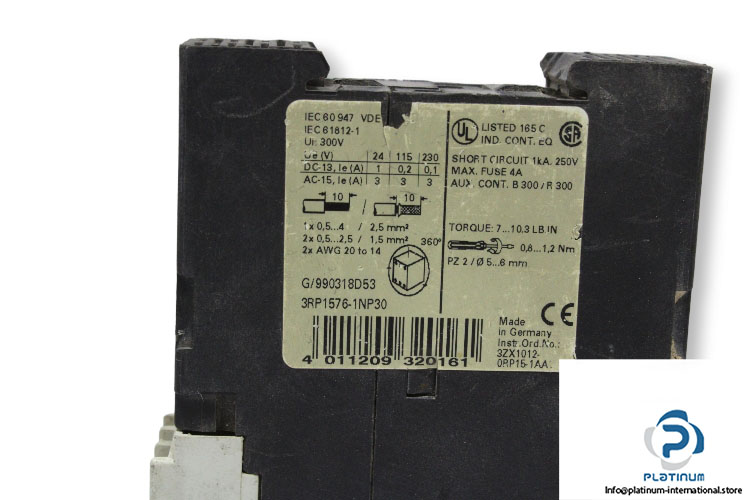

REF NO.: G/990318D53

Technical Information

• Control Supply Voltage 1 (AC): 24 V AC, 50/60 Hz
• Control Supply Voltage 2 (AC): 200 / 240 V AC, 50/60 Hz
• Control Supply Voltage (DC): 24 V DC
• Thermal Current: 5 A
• Adjustable Time: 3 / 60 s
• Power Loss: Maximum 2 W
• Tightening Torque: 0.8 / 1.2 N·m
• Thread of Connection Screw: M3
• Contacts: 1 Normally Open Contact
• Material of Switching Contacts: AgSnO2
• Electrical Connection (Auxiliary/Control Circuit): Screw-type Terminals
• Fastening Method: Screw and Snap-on Mounting onto 35 mm DIN Rail
• Operating Temperature: -25 / +60 °C
• Degree of Protection: IP20
• Dimensions: 83 x 22.5 x 91 mm
