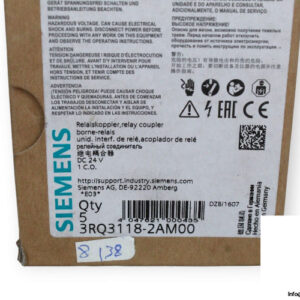

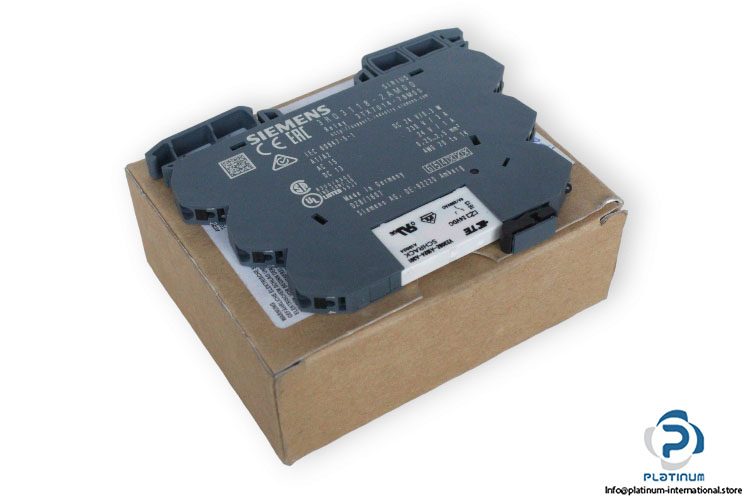

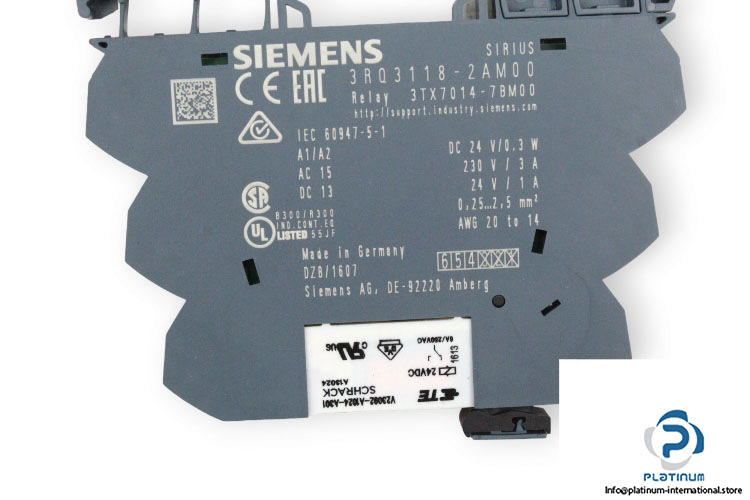

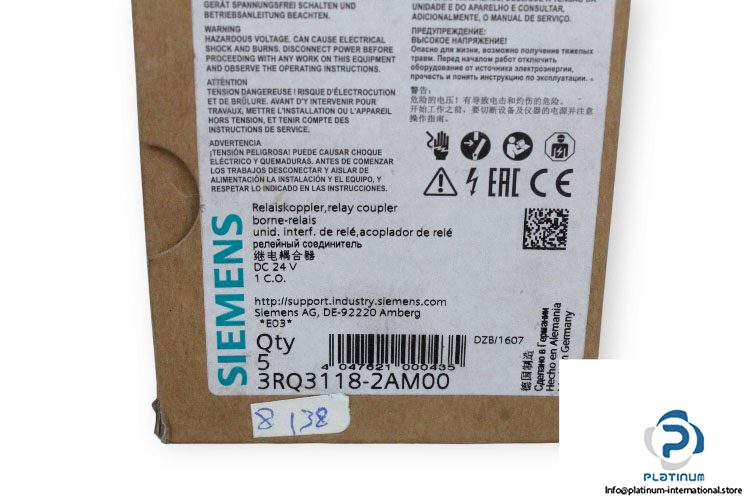

SIEMENS SIRIUS 3RQ31182AM00 OUTPUT COUPLER WITH PLUG-IN RELAY

The Siemens SIRIUS 3RQ31182AM00 output coupler with plug-in relay ensures reliable signal interfacing in control systems. Designed with robust components and a compact form, it provides efficient operation, fast switching times, and secure electrical connections for industrial automation applications.

Manufacturer: Siemens
Brand Name: SIRIUS
Type: Output Coupler with Plug-In Relay
Model: 3RQ31182AM00
Relay: 3TX7014-7BM00

Technical Information

• Control Supply Voltage: 24 V DC
• Rated Thermal Current: 6 A
• Frequency: 50 / 60 Hz
• ON-OFF Time Delay: 12-13 ms
• Contact: 1 Changeover (CO)
• Operational Voltage of Auxiliary Contacts: AC-15: 230 V, DC-13: 24 V
• Operational Current of Auxiliary Contacts: AC-15: 3 A, DC-13: 1 A
• Electrical Connection Type: Spring-Loaded Terminals (Push-In)
• Protection Class: IP20
• Temperature Range: -25 / 60 °C
• Dimensions: 93 x 6.2 x 76 mm
