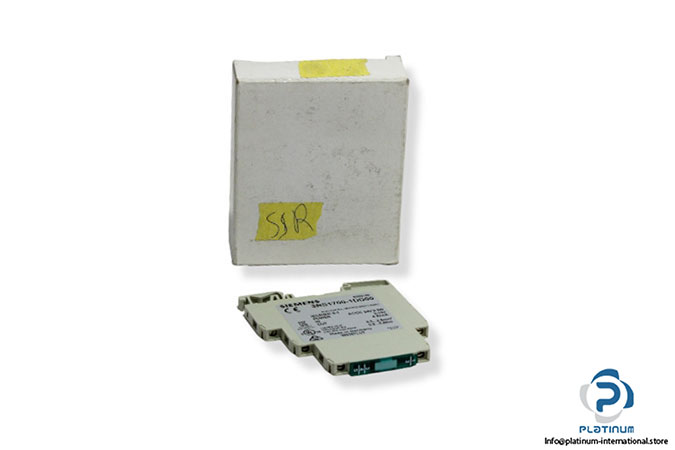

SIEMENS 3RS1 700-1DD00 SINGLE INTERFACE CONVERTER
The Siemens 3RS1 700-1DD00 is a compact and efficient single interface converter from the SIRIUS family, designed to convert standard analog voltage input signals into current output signals. Engineered for industrial control systems, it ensures reliable signal conversion with minimal power consumption.

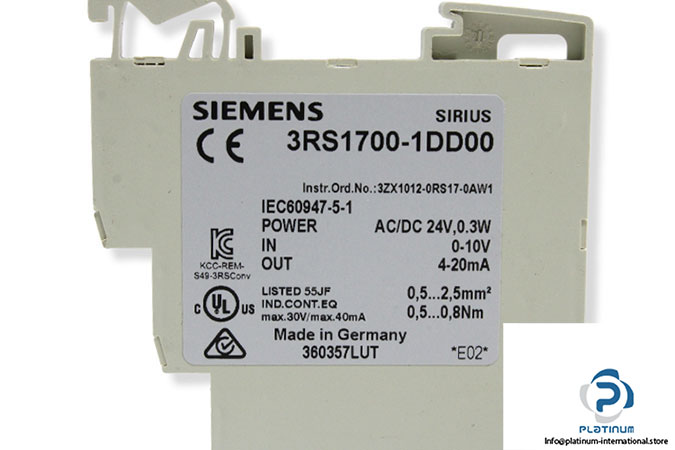

Manufacturer: SIEMENS
Type: Single Interface Converter
Model: 3RS1 700-1DD00
MNR: 3ZX1012-0RS17-0AW1
SN: 360357LUT
Family: SIRIUS
Technical Information
- Supply Voltage: 24 V AC/DC
- Type of Signal at Input: 0 / 10 V
- Type of Signal at Output: 4 / 20 mA
- Power: 0.3 W
- Conductor Cross-Section: 0.25 / 2.5 mm²
- Tightening Torque: 0.5 / 0.8 N·m
- Type of Connection: Screw-Type Terminals
- Frequency: 50 / 60 Hz
- Ambient Temperature: -25 / +60 °C
- Protection Class: IP20
- Dimension: 79 x 6.2 x 84 mm
