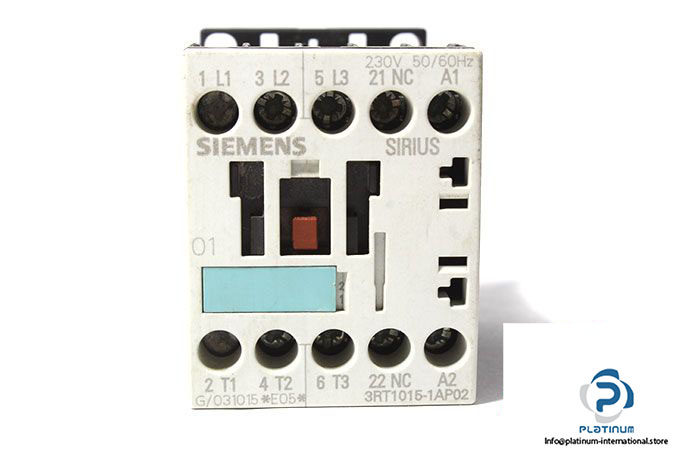

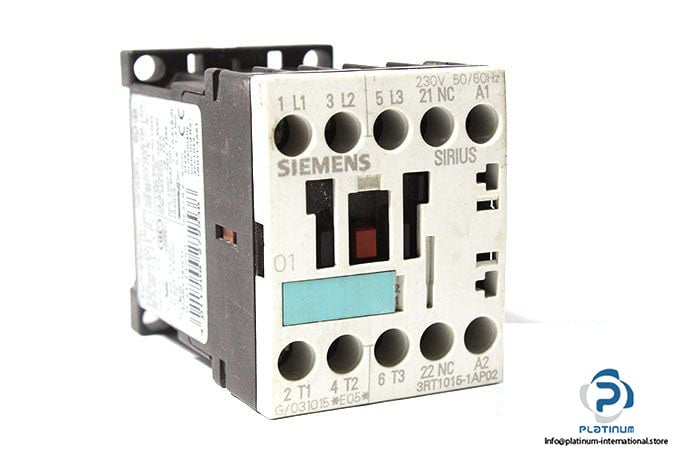

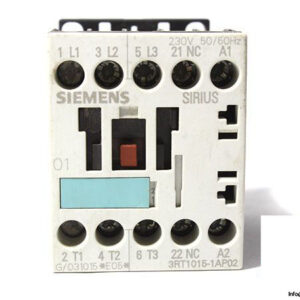

SIEMENS SIRIUS 3RT1015-1AP02 POWER CONTACTOR
The Siemens Sirius 3RT1015-1AP02 is a compact and reliable power contactor designed for switching and controlling electric motors and other electrical loads. Built to IEC/EN 60947-4-1 standards, it ensures consistent performance and long service life in demanding industrial environments.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1015-1AP02
Successor Type: 3RT2015-1AP02
Size: S00
Technical Information
- Control Supply Voltage: 230 V AC
- Control Supply Voltage Frequency: 50 / 60 Hz
- Rated Operating Power: 3 kW (400 V AC)
- Rated Operating Current: 6 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 1 Normally Closed (1NC)
- Standard: IEC /EN 60947-4-1
- Protection Class IP: IP20
- Operation Ambient Temperature: -25 / 60 °C
- Dimensions (W x D x H): 45 x 72 x 57.5 mm
