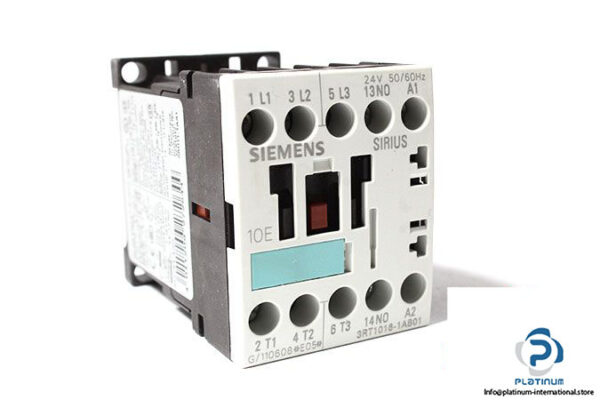

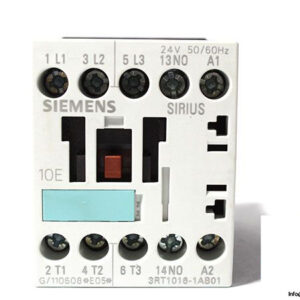

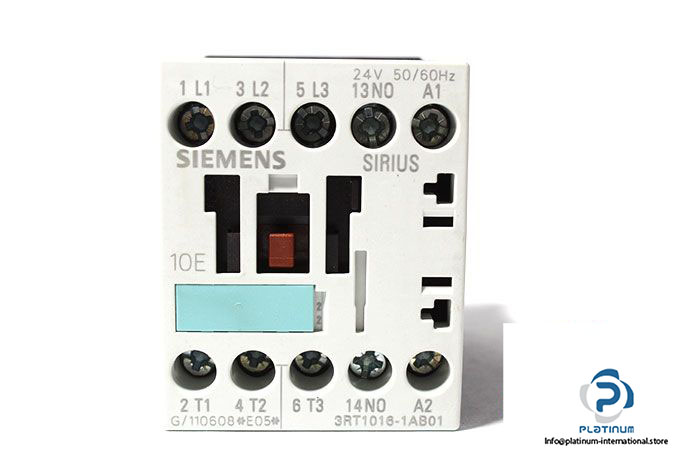

SIEMENS SIRIUS 3RT1016-1AB01 POWER CONTACTOR
The Siemens Sirius 3RT1016-1AB01 is a compact and reliable power contactor designed for controlling electric motors and switching power circuits in industrial applications. Built to the IEC/EN 60947-4-1 standard, it offers dependable performance, safety, and long service life. This model is part of the S00 size category and features a 24 V AC control supply voltage, making it ideal for a wide range of automation and control systems.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1016-1AB01
Successor Type: 3RT2016-1AB01
Technical Information
- Size: S00
- Control Supply Voltage: 24 V AC
- Control Supply Voltage Frequency: 50 / 60 Hz
- Rated Operating Power: 4 kW (400 V AC)
- Rated Operating Current: 6 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 1 Normally Open (1NO)
- Standard: IEC / EN 60947-4-1
- Protection Class IP: IP20
- Operation Ambient Temperature: -25 / 60 °C
- Dimensions (W x D x H): 45 x 72 x 57.5 mm
