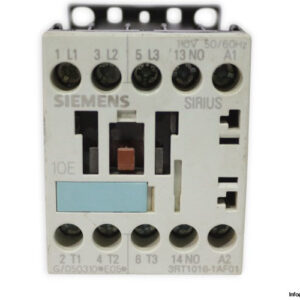

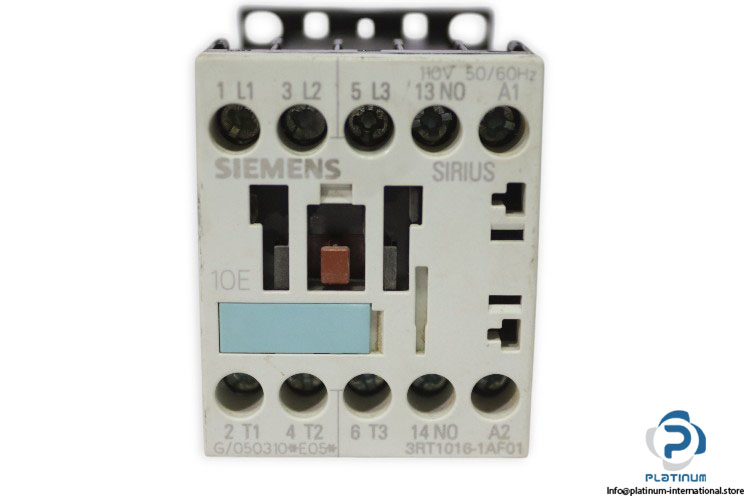

Siemens 3RT1016-1AF01 Power Contactor

The Siemens 3RT10161AF01 is a compact and efficient power contactor from the SIRIUS series, designed for reliable switching and control of electrical motors and loads. With high operational performance, durability, and an IP20 protection class, it is suitable for a wide range of industrial applications.

Manufacturer: Siemens
Type: Power Contactor
Model: 3RT1016-1AF01

Technical Information

• Size: S00
• Successor: SIRIUS 3RT10
• Coil Voltage: 110 V AC
• Rated Operational Voltage: 600 V AC
• Rated Operational Current AC-3: 9 A
• Frequency: 50 / 60 Hz
• Power Loss: 0.7 W
• Power AC-3:
  ¢ 400 V AC: 4 kW
  ¢ 500 V AC: 4.5 kW
  ¢ 690 V AC: 5.5 kW
• Number of Poles: 3-Pole
• Contact: 3 Normally Open (NO)
• Protection Class: IP20
• Temperature Range: -25 / 60 °C
• Dimensions: 57.5 x 45 x 72 mm
