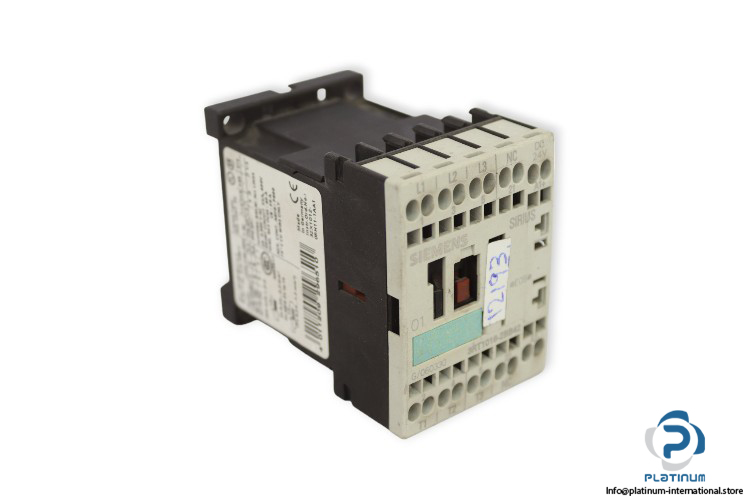

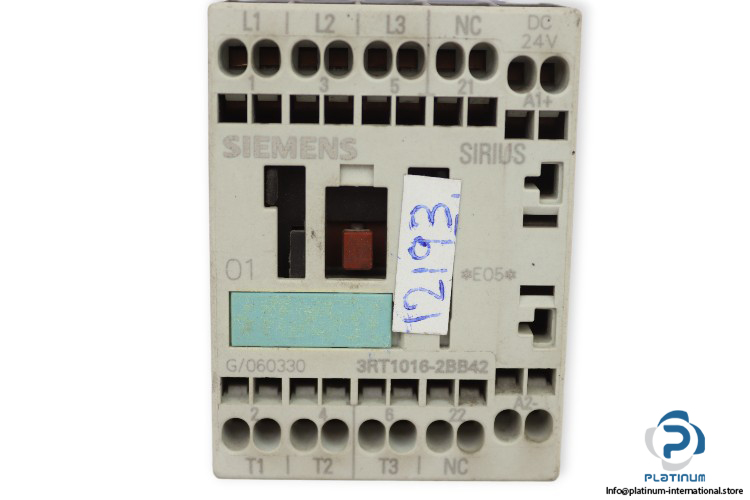

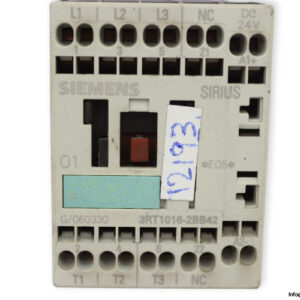

Manufacturer: Siemens
Type: Power contactor
MNR: 3RT10162BB42
Product Brand Name: SIRIUS

Size of contactor: S00
Control supply voltage: 24 V DC
Identification number: 01
Insulation voltage Ui: 690 V
Operating current at AC-1 maximum: Ie 22 A
Operating current at AC-15 @400 V: 3 A
Operating current at AC-3 @400 V: 9 A
Operating power at AC-3 @400 V: 4 kW
Auxiliary Contact: 1 Normally closed
Mounting type: screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Degree of pollution: 3
General use: 600 V AC,20 A
Protection degree: IP20
Standard: IEC/EN 60947-4-1
Operating temperature: -25 … 60°C
Dimensions: 60 x 45 x 73 mm
