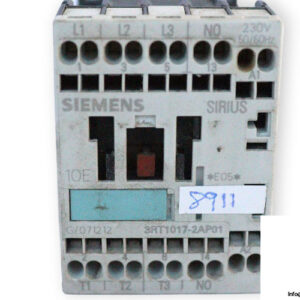

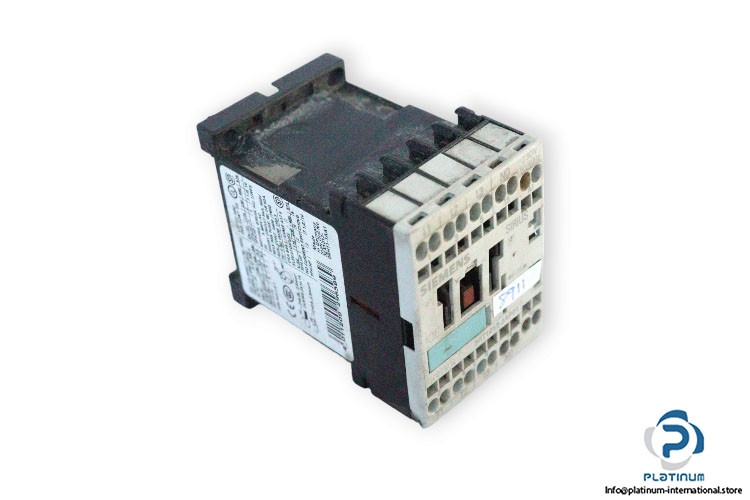

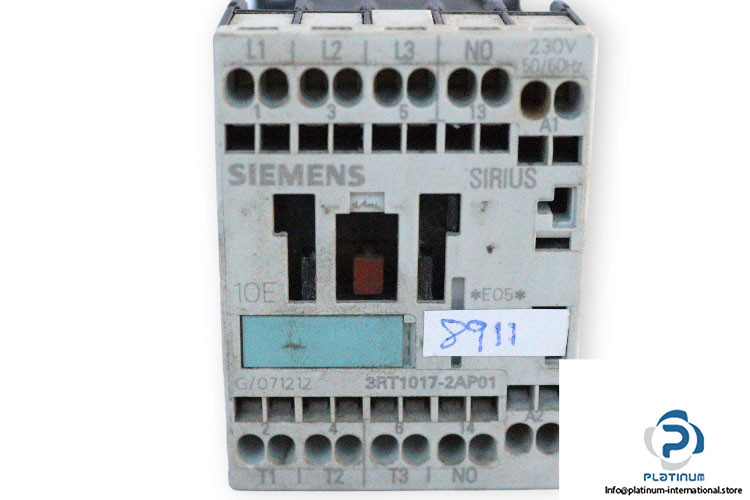

SIEMENS SIRIUS 3RT1017-2AP01 CONTACTOR

The Siemens Sirius 3RT1017-2AP01 is a high-quality contactor designed for reliable switching of power circuits in industrial applications. With robust construction, precise operation, and compact S00 size, it offers dependable performance for a wide range of electrical control systems.

Manufacturer: Siemens
Type: Contactor
Series: Sirius
Model: 3RT1017-2AP01

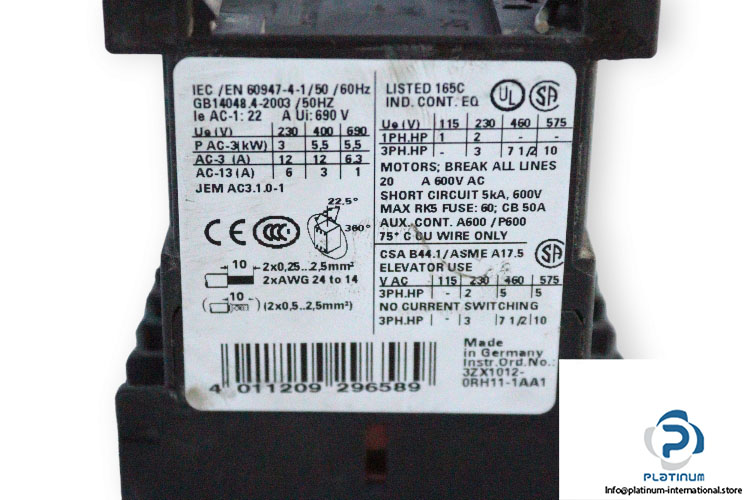

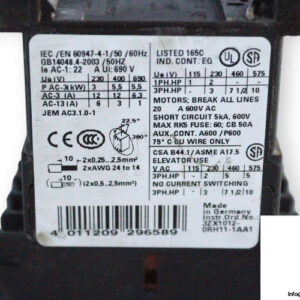

Technical Information

• Supply Voltage: 230 V AC, 50 / 60 Hz
• Rated Insulation Voltage Ui: 690 V AC
• Operating Current at AC-1 / 400 V: 22 A
• Rated Operational Current @ AC-3 / 400 V: 12 A
• Rated Operational Current @ AC-13 / 400 V: 3 A
• Rated Power @ AC-3 / 400 V: 5.5 kW
• Rated Power @ AC-13 / 400 V: 5.5 kW
• No. of Poles: 3 poles
• Main Contacts (NO): 3 NO
• Auxiliary Contacts (NO): 1 NO
• Size: S00
