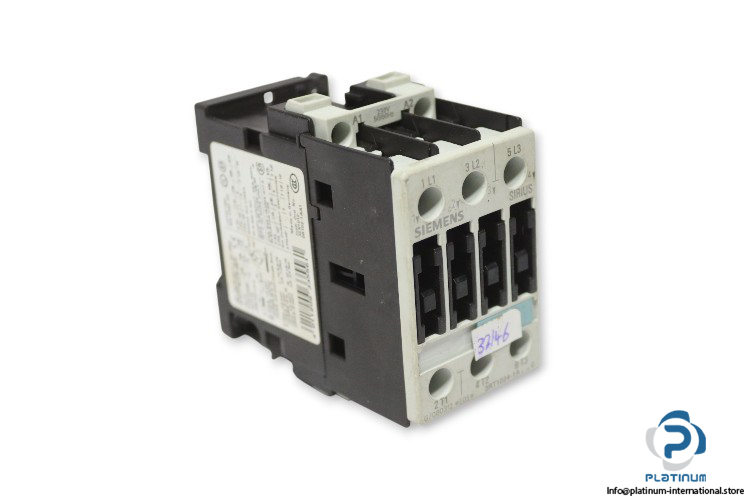

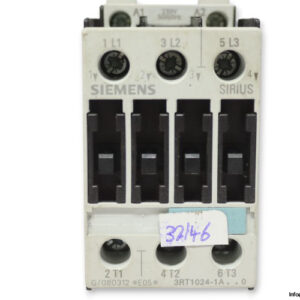

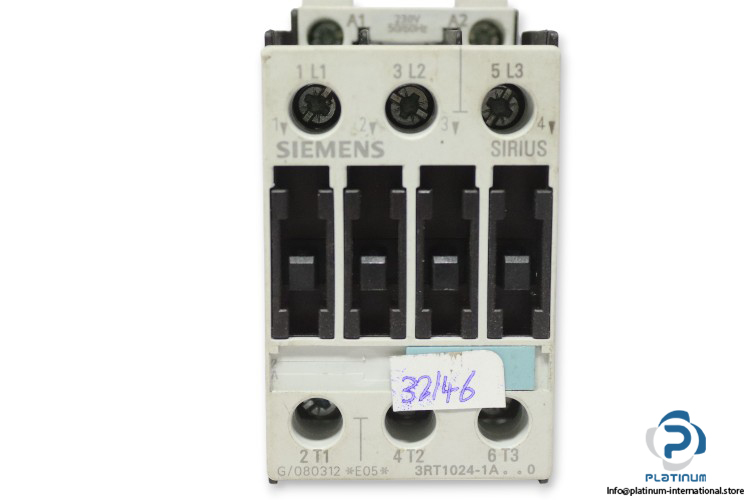

SIEMENS SIRIUS 3RT1024-1AL20 Contactor

The SIEMENS SIRIUS 3RT1024-1AL20 Contactor is a compact and reliable switching device designed for motor control and industrial power circuits. Built in size S0 and compliant with IEC standards, it offers dependable performance for a wide range of automation applications.

Manufacturer: SIEMENS
Type: Contactor
Model: 3RT1024-1AL20
Installation Order Number: 3ZX1012-0RT02-1AA1
Serial Number: 4011209 335561
Brand Name: SIRIUS
Size: S0

Technical Information

• Degree of Pollution: 3
• Protection Class: IP20 (front)
• Number of Poles for Main Current Circuit: 3
• Number of NO Contacts for Main Contacts: 3
• Number of NC Contacts for Main Contacts: 0
• Operating Power at AC-1, 400 V: 23 kW
• Operating Power at AC-2, 400 V: 5.5 kW
• Operating Power at AC-3, 400 V: 5.5 kW

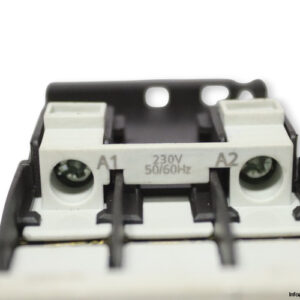

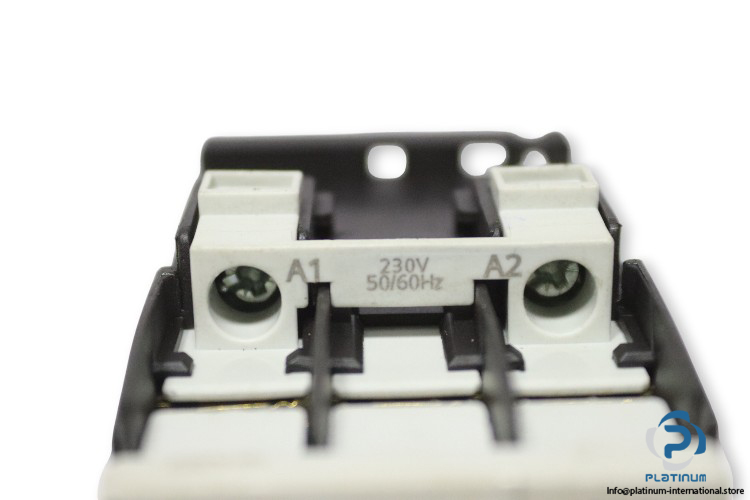

• Control Supply Voltage: 230 V AC
• Standard: IEC / EN 60947-4-1
• Dimensions (W x D x H): 45 x 91 x 85 millimeters
