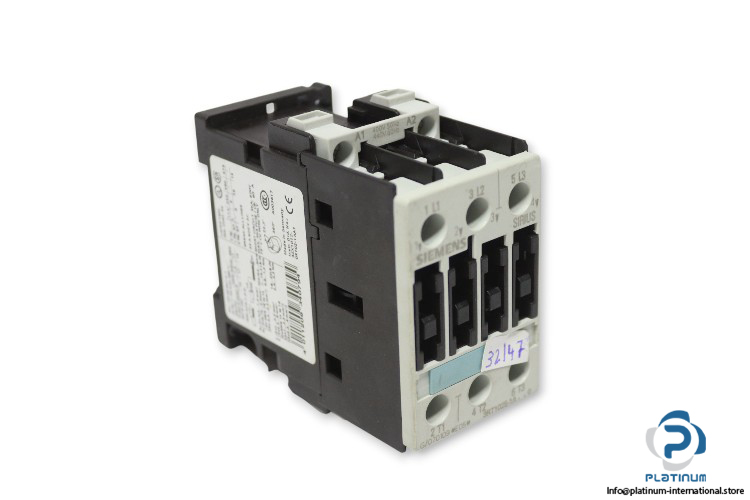

SIEMENS 3RT1025-1AV00 Contactor

The SIEMENS 3RT1025-1AV00 Contactor from the SIRIUS series is a reliable solution for switching and controlling motors and electrical loads. Built in size S0, it delivers high performance, long service life, and consistent operation in industrial applications.

Manufacturer: SIEMENS
Type: Contactor
Model: 3RT1025-1AV00
Installation Order Number: 3ZX1012-0RT02-1AA1
Serial Number: 4 011209 340794
Brand Name: SIRIUS
Size: S0

Technical Information

• Degree of Pollution: 3
• Protection Class: IP20 on the front
• Ambient Temperature During Operation: minus 25 to plus 60 degree Celsius
• Number of Poles for Main Current Circuit: 3
• Number of NO Contacts for Main Contacts: 3
• Number of NC Contacts for Main Contacts: 0
• Operating Power at AC-1 (400 V): 23 kW
• Operating Power at AC-2 (400 V): 7.5 kW
• Operating Power at AC-3 (400 V): 7.5 kW

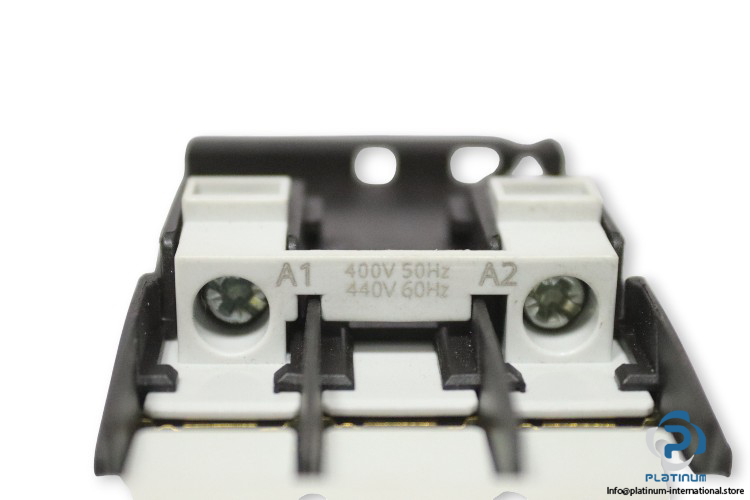

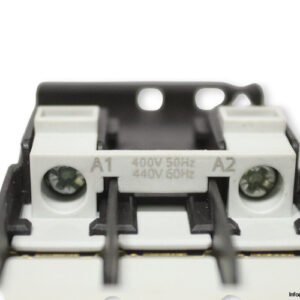

• Control Supply Voltage: 400 to 440 V AC
• Standard: IEC EN 60947-4-1
• Dimensions (W x D x H): 45 x 91 x 85 millimeters
