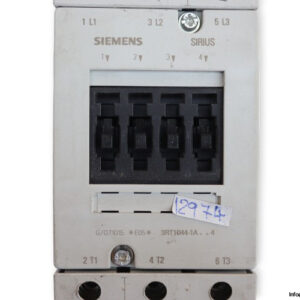

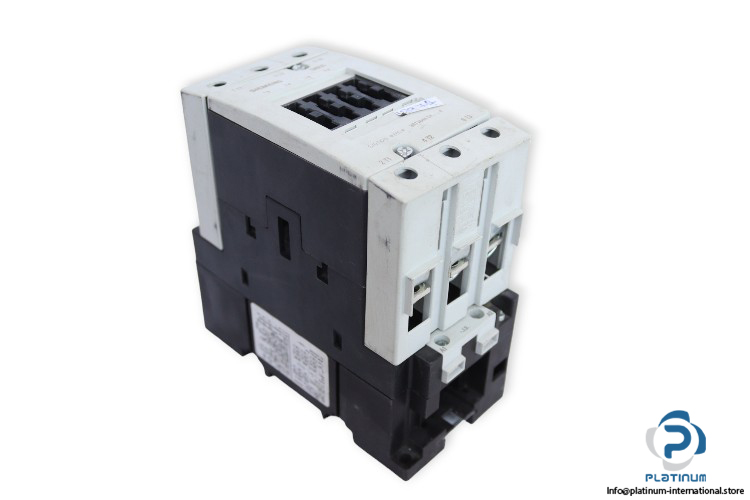

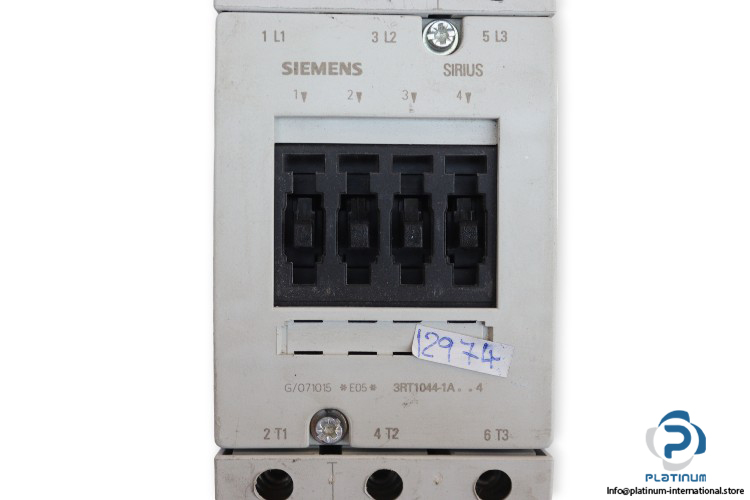

Siemens 3RT10441AL24 Power Contactor

The Siemens 3RT10441AL24 is a high-performance power contactor from the SIRIUS 3RT10 series, designed for reliable switching of electric motors and power circuits. It offers excellent durability, high breaking capacity, and easy integration into control panels, making it ideal for industrial automation and power distribution systems.

Manufacturer: Siemens
Type: Power Contactor
Model: 3RT10441AL24

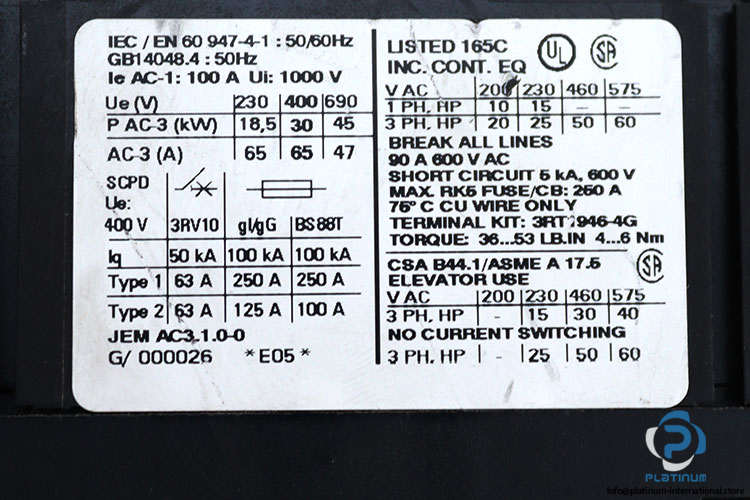

Technical Information

• Size: S3
• Successor: SIRIUS 3RT10
• Coil Voltage: 230 V AC
• Rated Operational Voltage: 600 V AC
• Rated Operational Current AC-3 (230 / 400 V): 65 A
• Rated Operational Current AC-3 (690 V): 47 A
• Frequency: 50 / 60 Hz
• Power AC-3 (230 V): 18.5 kW
• Power AC-3 (400 V): 30 kW
• Power AC-3 (690 V): 45 kW
• Number of Poles: 3-Pole
• Contact Configuration: 3 Normally Open (NO)
• Protection Class: IP20
• Operating Temperature: ˆ’25 / 60 °C
• Dimensions: 146 × 70 × 188 mm
