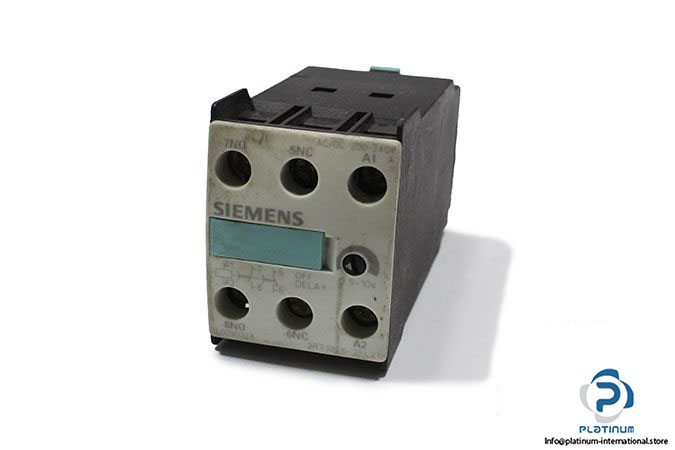

SIEMENS SIRIUS 3RT1926-2FL21 AUXILIARY SWITCH
This solid-state, time-delayed front-side auxiliary switch by Siemens is engineered for advanced control applications. With an OFF-delay design and wide timing range, it delivers reliability and precision in automation systems.
Manufacturer: SIEMENS
Product Brand Name: SIRIUS
Type: Solid-State Time-Delayed Front-Side Auxiliary Switch
Model: 3RT1926-2FL21
Serial No.: 4011209 308503
Product Designation: Auxiliary Switch
Design of the Product: With OFF-delay
Technical Information
- Control Supply Voltage: 200 / 240 V AC/DC
- Time Range: 0.5 / 10 s
- Output Contacts: 1 NO contact, 1 NC contact
- Degree of Pollution: 3
- Operating Current: 3 A
- Surge Voltage Resistance Rated Value: 4000 V
- Protection Class of the Terminal: IP20
- Ambient Temperature During Operation: -25 / +60 °C
- Dimensions: 33 x 73 x 46 mm
