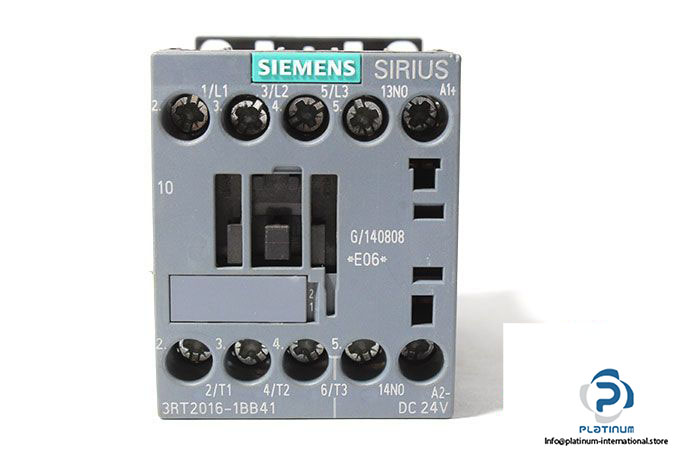

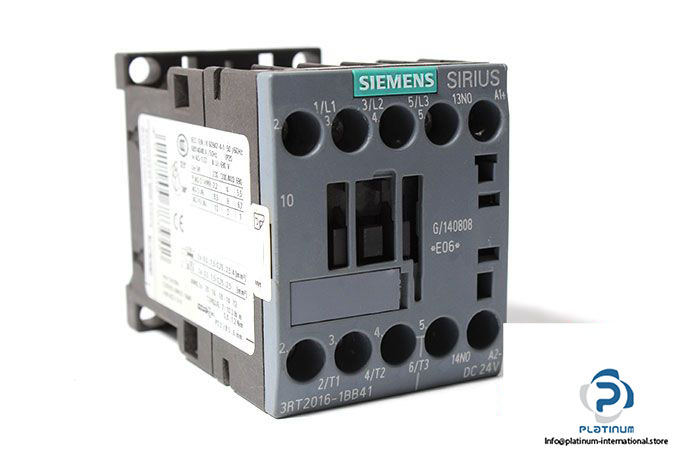

SIEMENS SIRIUS 3RT2016-1BB41 POWER CONTACTOR
The Siemens Sirius 3RT2016-1BB41 is a compact and reliable power contactor designed for efficient motor control and power switching in industrial applications. Built to IEC/EN/K 60947-4-1 standards, this unit offers robust performance, dependable operation, and high durability in demanding environments.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT2016-1BB41

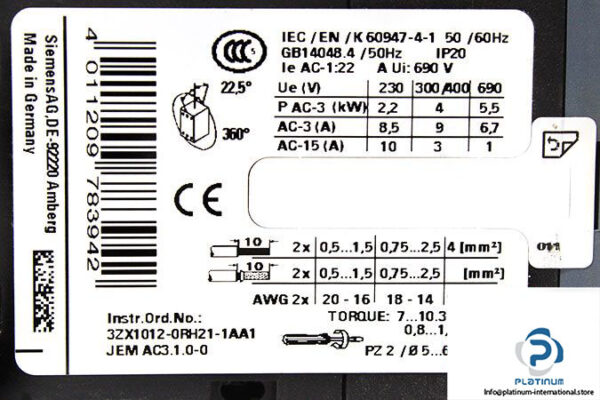

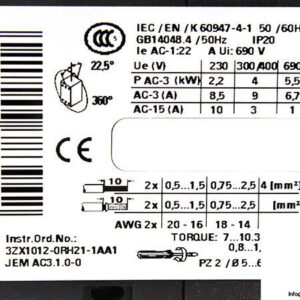

INST ORD NO.: 3ZX1012-0RH21-1AA1
REF NO.: JEM AC3.1.0.0
Size: S00
Technical Information
- Control Supply Voltage: 24 V DC
- Rated Operating Power: 4 kW (400 V AC)
- Rated Operating Current: 10 A (230 V AC), 3 A (400 V AC)
- Auxiliary Contacts: 1 Normally Open (1NO)
- Standard: IEC /EN /K 60947-4-1
- Protection Class IP: IP20
- Operation Ambient Temperature: -25 / 60 °C
- Dimensions (W x D x H): 45 x 73 x 58 mm
