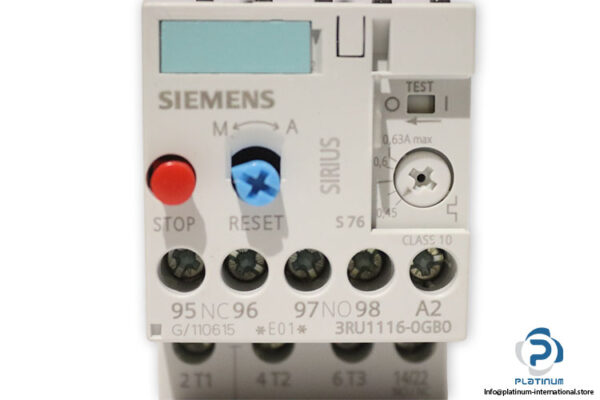

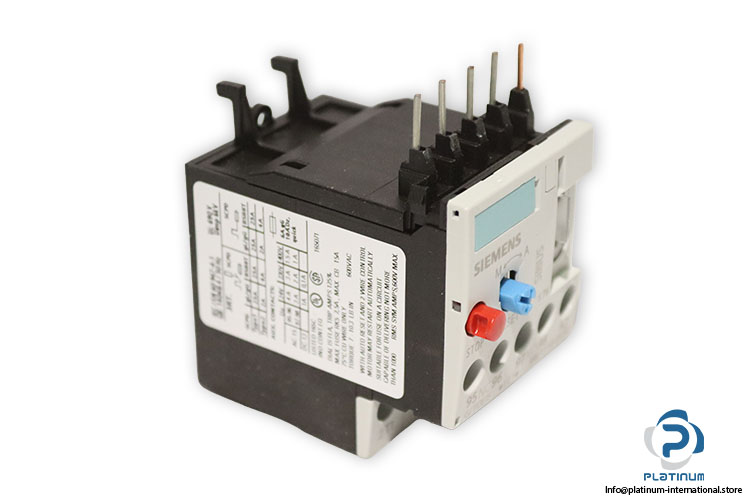

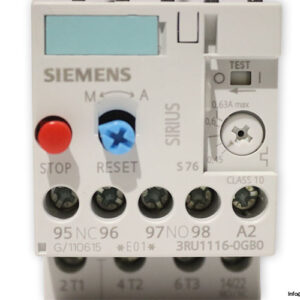

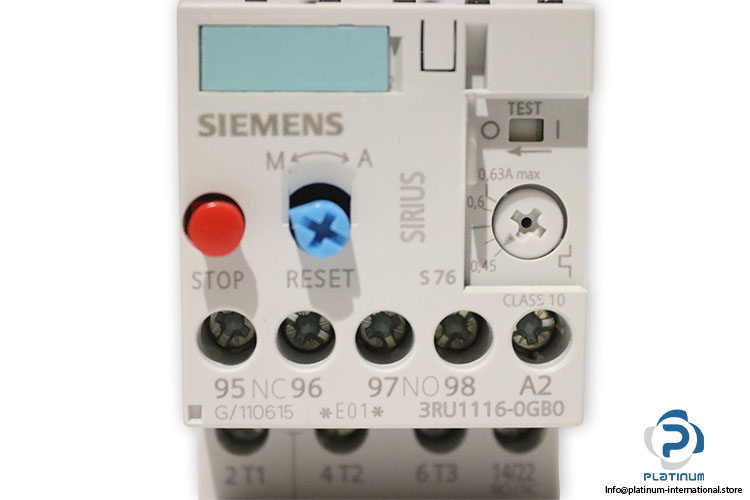

SIEMENS 3RU1116-0GB0 Overload Relay
The SIEMENS 3RU1116-0GB0 SIRIUS Overload Relay is a compact and reliable thermal protection device designed for safeguarding motors against overload conditions. Built to Siemens™ high industrial standards, it offers stable performance, adjustable trip settings, and compatibility with S00 contactors. With a robust IP20 housing, high shock resistance, and ATEX-certified protection, this relay is ideal for demanding industrial environments.
Manufacturer: SIEMENS
Type: Overload Relay
MRN: 3RU1116-0GB0
Brand: SIRIUS
Technical Information
- Product Designation: Thermal Overload Relay
- Relay Size: S00
- Compatible Contactor Size: S00
- Power Loss (Typical): 6.6 W
- Insulation Voltage (Pollution Degree 3): 690 V
- Surge Voltage Resistance: 6 kV
- Protection Class (Front): IP20
- Shock Resistance: 8 g / 10 ms
- Type of Protection: DMT 98 ATEX G 001
- Electrical Shock Protection: Finger-Safe
- Installation Altitude (Max): 2,000 m
- Ambient Temperature During Operation: ˆ’20 / +70 °C
- Main Circuit Poles: 3
- Adjustable Overload Trip Range: 0.45 / 0.63 A
- Auxiliary Contacts (NC): 1
- Auxiliary Contacts (NO): 1
- Height: 87 mm
- Width: 45 mm
- Depth: 78 mm
