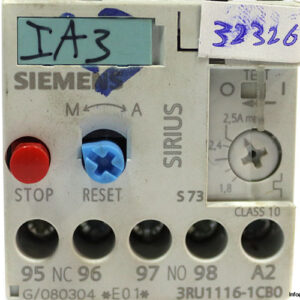

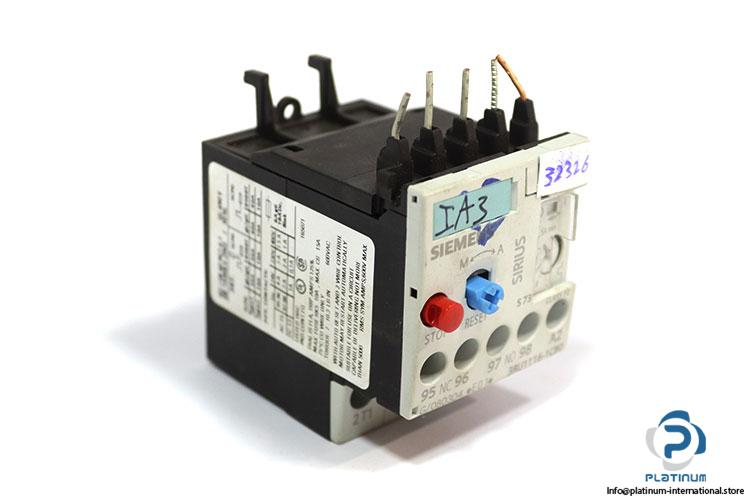

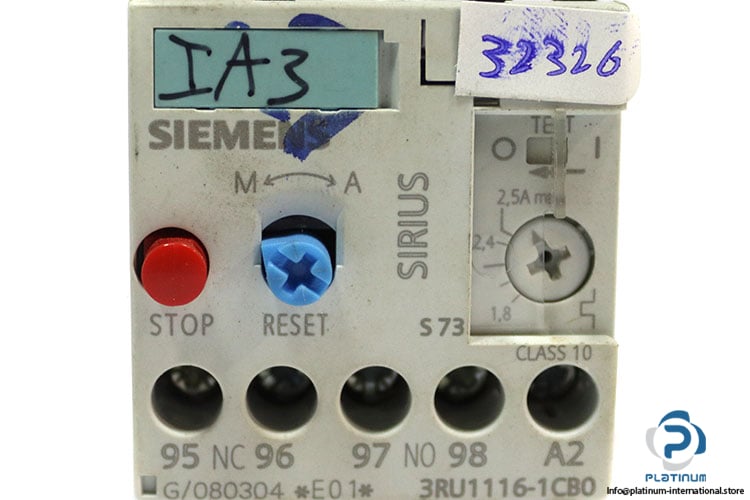

SIEMENS 3RU1116-1CB0 Overload Relay
A high-performance thermal overload relay from the SIEMENS SIRIUS series, designed to deliver reliable motor protection, precise current adjustment, and long-term operational stability in industrial environments. Suitable for integration with S00 contactors and engineered for demanding applications requiring dependable overload safeguarding. Manufacturer: SIEMENS
Type: Overload Relay
MRN: 3RU1116-1CB0

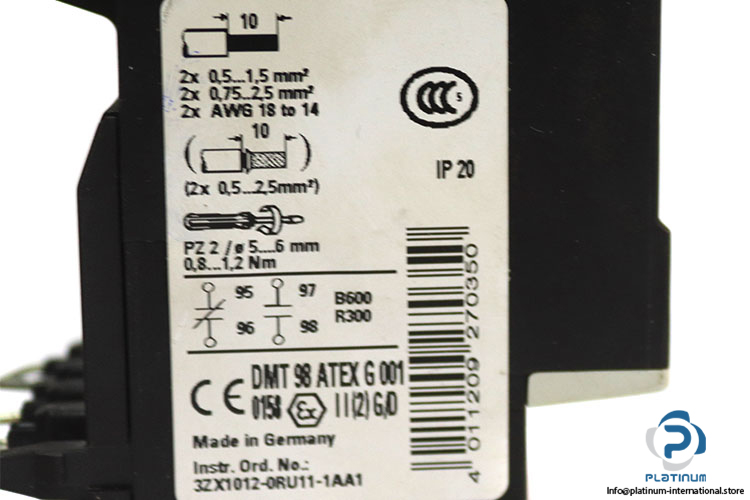

Installation Order No.: 3ZX1012-0RU11-1AA1
Serial No.: 4011209 270350
Technical Information
- Product Brand Name: SIRIUS
- Product Designation: Thermal Overload Relay
- Size of Overload Relay: S00
- Compatible Contactor Size: S00
- Power Loss (Typical): 6.6 W
- Insulation Voltage (Pollution Degree 3): 690 V
- Surge Voltage Resistance: 6 kV
- Protection Class (Front): IP20
- Type of Protection: DMT 98 ATEX G 001
- Shock Protection: Finger-Safe (DIN EN 81346-2 F)
- Installation Altitude: Up to 2000 m
- Operating Temperature: -20°C to +70°C
- Number of Poles (Main Circuit): 3
- Adjustable Current Range: 1.8 … 2.5 A
- Operating Voltage (AC-3): Up to 690 V
- Auxiliary NC Contacts: 1
- Auxiliary NO Contacts: 1
- Mounting Type: Direct Mounting
- Height: 87 mm
- Width: 45 mm
- Depth: 78 mm
