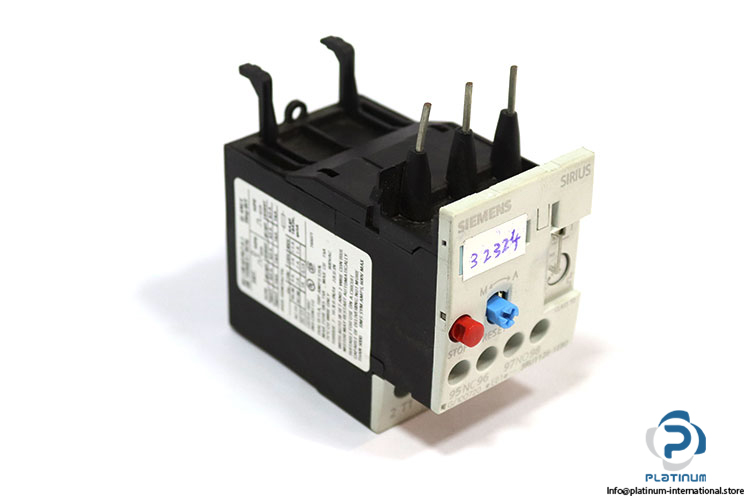

Siemens 3RU1126-1EB0 Overload Relay
A high-performance thermal overload relay designed to protect motors and electrical systems from overload conditions. Engineered for accuracy, durability, and secure operation, the Siemens SIRIUS relay delivers reliable protection in industrial automation environments. Manufacturer: SIEMENS
Type: Overload Relay
MRN: 3RU1126-1EB0

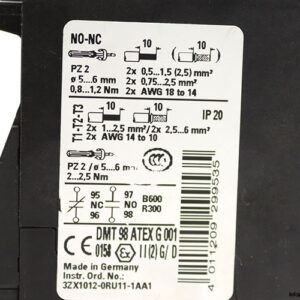

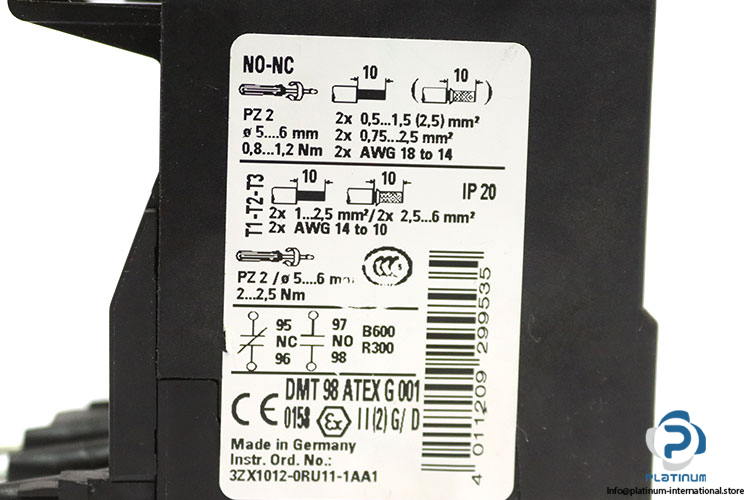

Installation Order No.: 3ZX1012-0RU11-1AA1
Serial No.: 4011209 299535
Technical Information
- Number of Poles (Main Circuit): 3

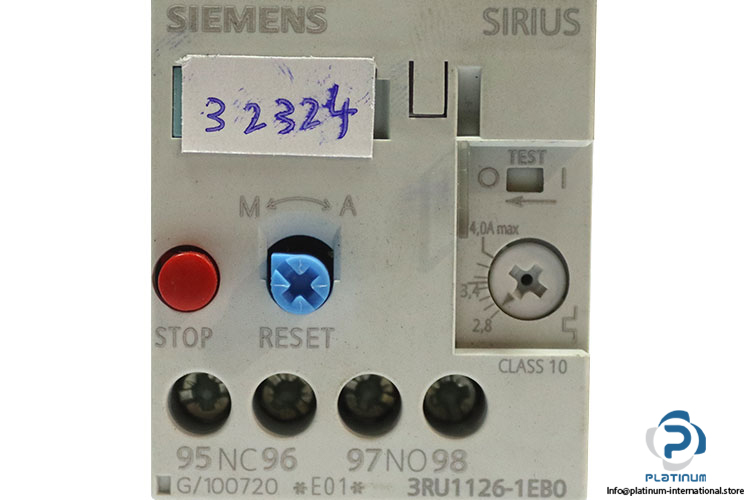

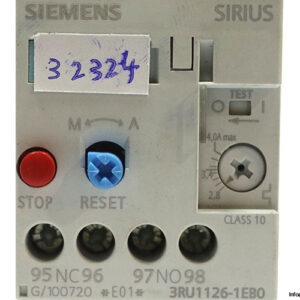

- Adjustable Pick-Up Current: 2.8 … 4 A
- Product Brand Name: SIRIUS
- Product Designation: Thermal Overload Relay
- Relay Size: S0
- Compatible Contactor Size: S0
- Total Typical Power Loss: 6 W

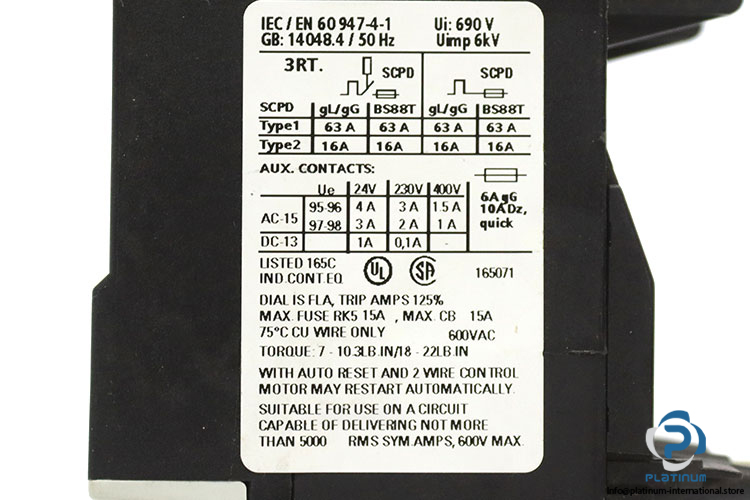

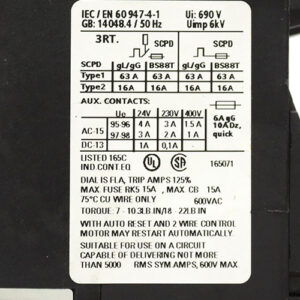

- Insulation Voltage (Pollution Degree 3): 690 V
- Surge Voltage Resistance: 6 kV
- Protection Class (Front): IP20
- Type of Protection: DMT 98 ATEX G 001
- Shock Protection: Finger-Safe
- Equipment Marking (DIN EN 81346-2): f
- Ambient Temperature (Operation): -20 … +70 °C
- Auxiliary Contacts “ NC: 1
- Auxiliary Contacts “ NO: 1
- Mounting Type: Direct Mounting
- Height: 97 mm
- Width: 45 mm
- Depth: 96 mm
