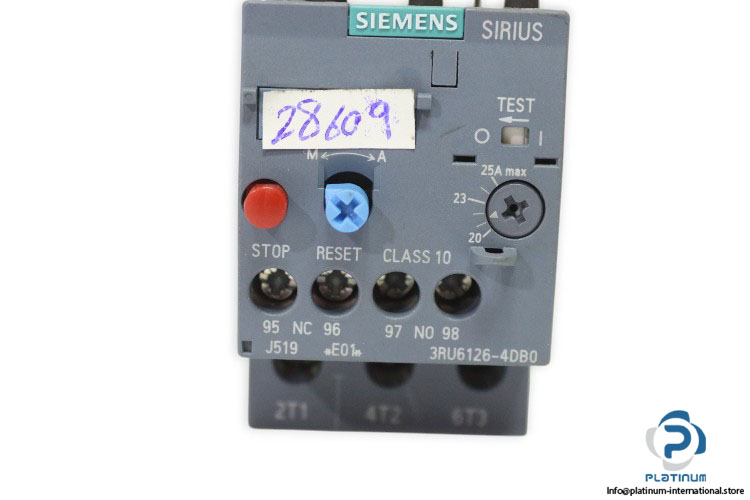

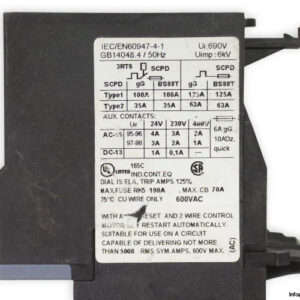

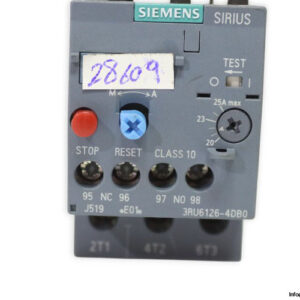

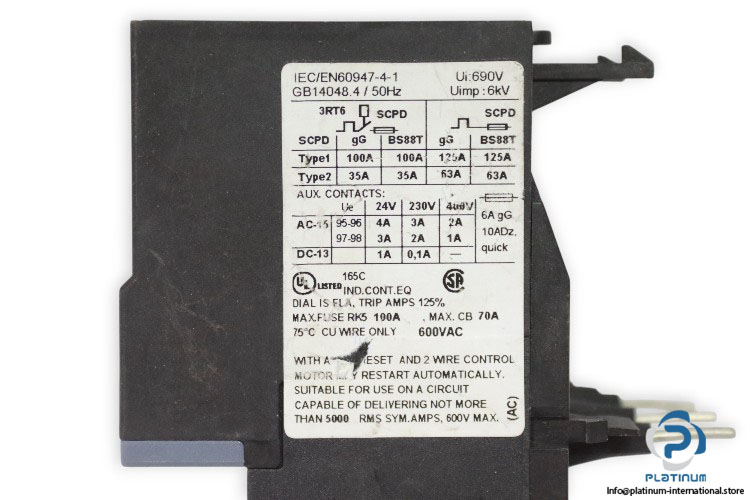

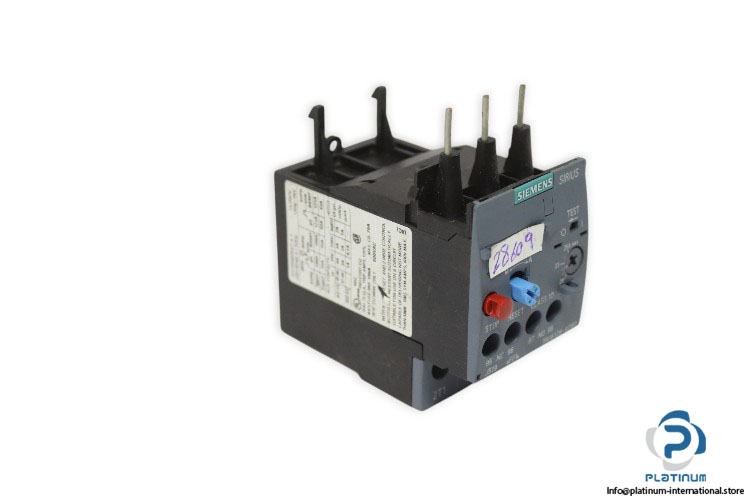

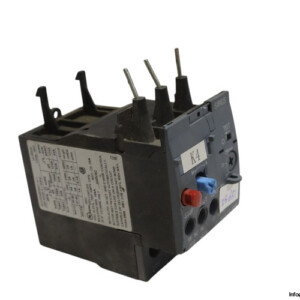

SIEMENS 3RU61264DB0 THERMAL OVERLOAD RELAY
The Siemens SIRIUS 3RU6126-4DB0 is a reliable thermal overload relay designed to provide protection for motors against overload conditions. With adjustable current settings and integrated auxiliary contacts, it ensures safe and efficient motor operation in industrial environments.
Manufacturer: SIEMENS
Type: Thermal Overload Relay
Model: 3RU6126-4DB0
Brand Name: SIRIUS
Designation: 3RU6
Size of Contactor: S0
Technical Information
- Operating Voltage: 690 V AC
- Operating Current: 25 A
- Adjustable Current Range: 20 … 25 A
- Frequency: 50 … 60 Hz
- Insulation Voltage: 690 V AC
- Power Loss: 6.2 W
- Rated Impulse Voltage (Uimp): 6 kV
- Poles No.: 3
- Auxiliary Contact: 1 NO + 1 NC
- Contact Current: 3 / 2 A
- Protection Class: IP20
- Ambient Temperature: -40 / 70 °C
- Dimensions: 85 x 45 x 85 mm
