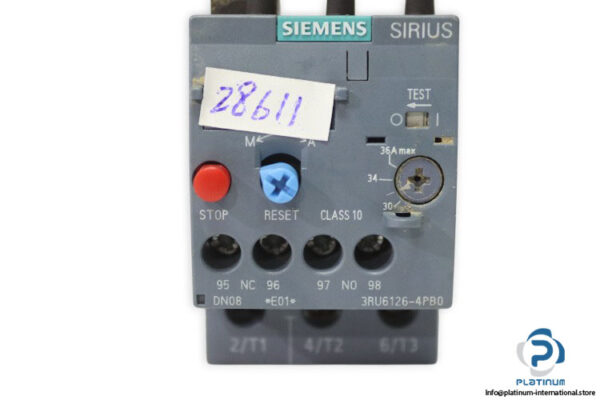

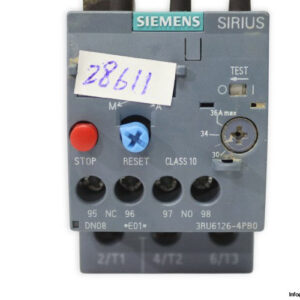

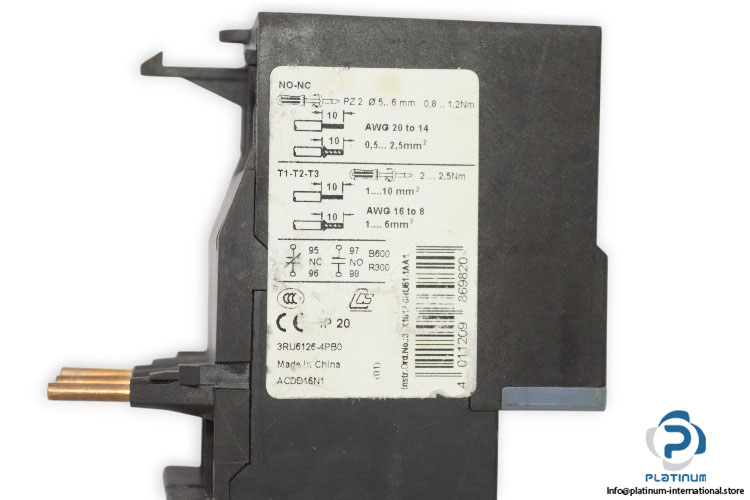

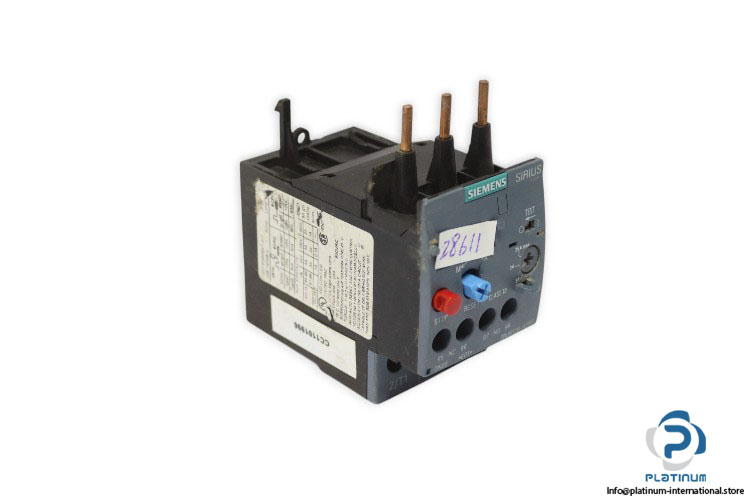

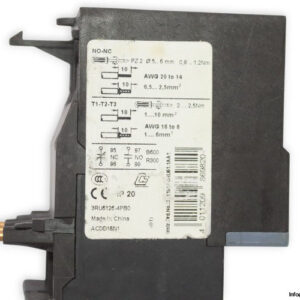

SIEMENS 3RU61264PB0 THERMAL OVERLOAD RELAY
The Siemens SIRIUS 3RU6126-4PB0 is a compact and reliable thermal overload relay designed to protect motors against overload and phase failure. Built with robust construction and precise adjustability, it ensures dependable performance in industrial automation and motor control applications.
Manufacturer: Siemens
Type: Thermal Overload Relay
Model: 3RU6126-4PB0
Brand Name: SIRIUS
Designation: 3RU6
Size of Contactor: S0
Technical Information
- Operating Voltage: 690 V AC
- Operating Current: 36 A
- Adjustable Current Range: 30 … 36 A
- Frequency: 50 … 60 Hz
- Insulation Voltage: 690 V AC
- Power Loss: 7.5 W
- Rated Impulse Voltage (Uimp): 6 kV
- Number of Poles: 3
- Auxiliary Contact: 1 NO + 1 NC
- Contact Current: 3 / 2 A
- Protection Class: IP20
- Ambient Temperature: -40 / 70 °C
- Dimensions: 85 x 45 x 85 mm
